1. Application of FTP UTP Cat5/Cat6 Lan Cable /Telephone Cable/Communication Cable/Networking Cable :
Mainly used in the Building Correspondence Synthesis Wiring System the Work Area Correspondence Leading-out Terminal and between the Connection Distribution Frame Wiring, As Well As the Housing Synthesis Wiring System’s User Correspondence Leading-out Terminal Arrives at Place of Exile between Coils’ wiring.
2. Technique property of FTP UTP Cat5/Cat6 Lan Cable /Telephone Cable/Communication Cable/Networking Cable:
1.Conductor: Adopt soft round copper wire as conductors, whose diameter includes 0.5, 0.6. 0.8mm
2.Insulation: Adopt one of flame retardant polyethylene,PVC and polyethylene according to different moel,
3.Line pairs: Every two insulation conductor strands into pair according to the stated chromatogram.
4.Sheath: The technical specification of PVC sheath material is up to the standard of GB8815
5.Indoor telephone wire and outdoor telephone wire,Type for HYV,HYY,HYYC
3. Executive standard :
Per to the IEC,BS,VDE standard or customized
Structure
2/4/6/8 cores
| Mode | Telephone cable 2/4/6/8 cores |
| Conductor Size | 28AWG,26AWG,24AWG,23AWG,22AWG |
| Conductor Material | CU/CCA |
| No.of Conductor | 2/4/6/8 cores |
| Insulation Material | PE,HDPE |
| Jacket | PVC/ROHS PVC,LSZH PVC |
| Insulation Thicknes | 0.2mm |
| External diameter | 0.9mm |
| Operating Temperature | –40°C— +70°C |
| PVC Jacket Color | Optional |
| Print Words On Cable | As Clients' Request |
Multi pairs
| Mode | Multi pairs communication cable |
| Conductor Dimension | 0.37mm/0.4mm/0.5mm |
| Conductor Material | BC/CU/CCA/CCS |
| No.of Conductor | 5P/10P/20P/30P/50P/100P/200P ect |
| Insulation Material | HDPE |
| Jacket | PVC/LSZH/PE |
| Standard | YD/T1090-2001 |
| Insulation OD | 0.93mm |
| Shielding | Aluminum Foil+Drain wire |
| Operating Temperature | –20°C— +75°C |
| PVC Jacket Color | Optional |
| Print Words On Cable | As Clients' Request |
| Service life | 20 to 25 years |
Cat6 Network Cable Test Performance
| Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PHASE DELAY≤ ns | ELFEXT ≥dB/100m | PS NEXT ≥dB/100m | PS ELFEXT ≥dB/100m |
| 1 | 20.0 | 2.03 | 74.3 | 570 | 67.8 | 72.3 | 64.8 |
| 4 | 23.0 | 3.78 | 65.3 | 552 | 55.7 | 63.3 | 52.8 |
| 8 | 24.5 | 5.32 | 60.8 | 546.73 | 49.7 | 58.8 | 46.7 |
| 10 | 25.0 | 5.95 | 59.3 | 545.38 | 47.8 | 57.3 | 44.8 |
| 16 | 25.0 | 7.55 | 56.2 | 543 | 43.8 | 54.2 | 40.7 |
| 20 | 25.0 | 8.47 | 54.8 | 542.05 | 41.8 | 52.8 | 38.8 |
| 25 | 24.3 | 9.51 | 53.3 | 541.2 | 39.8 | 51.3 | 36.8 |
| 31.25 | 23.6 | 10.67 | 51.9 | 540.44 | 37.9 | 49.9 | 34.9 |
| 62.5 | 21.5 | 15.38 | 47.7 | 538.55 | 31.8 | 45.4 | 28.8 |
| 100 | 20.1 | 19.8 | 44.3 | 537.6 | 27.8 | 42.3 | 24.8 |
| 200 | 18.0 | 28.98 | 39.8 | 536.54 | 21.8 | 37.8 | 18.8 |
| 250 | 17.3 | 32.85 | 38.3 | 536.27 | 19.8 | 36.3 | 16.8 |

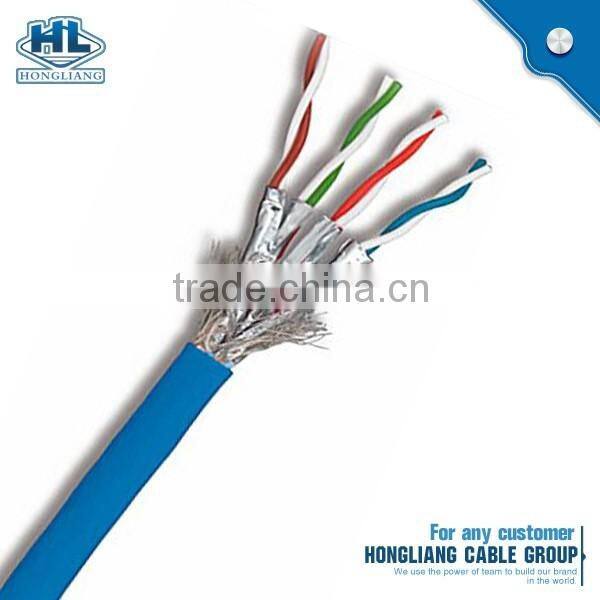

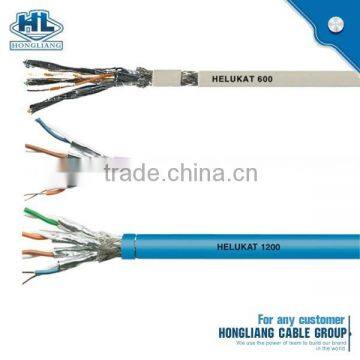

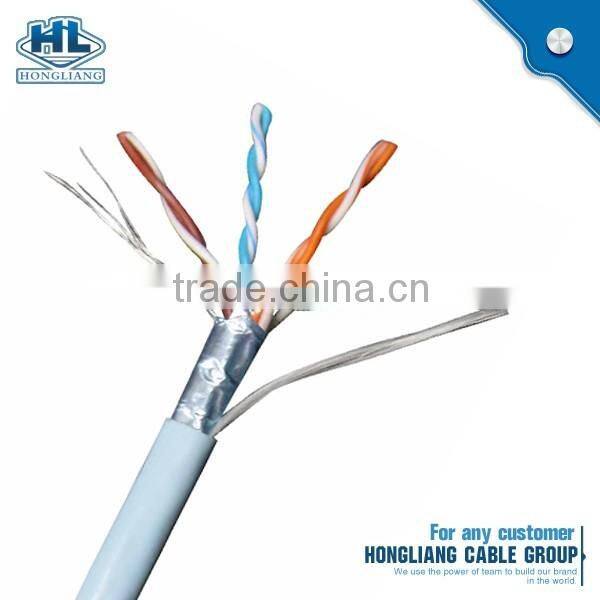

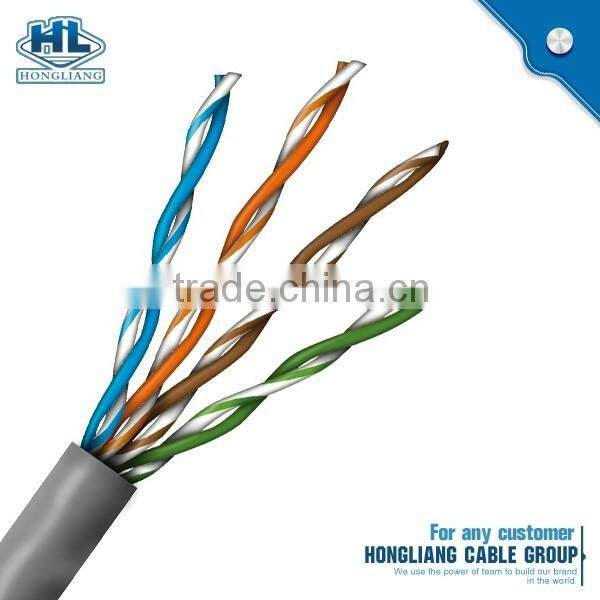

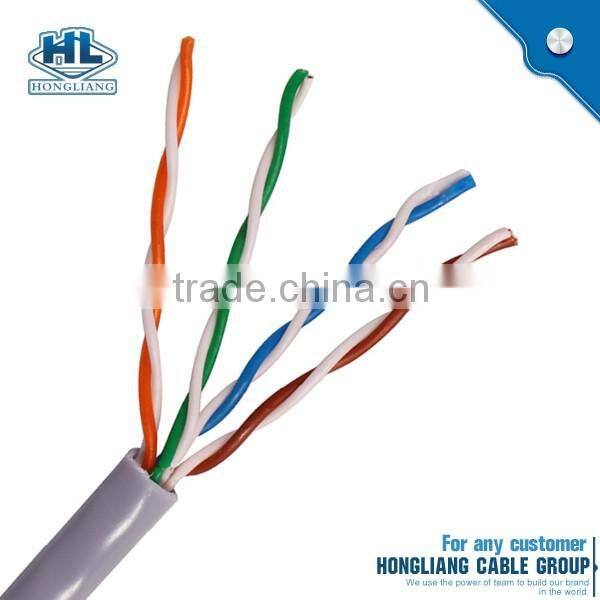

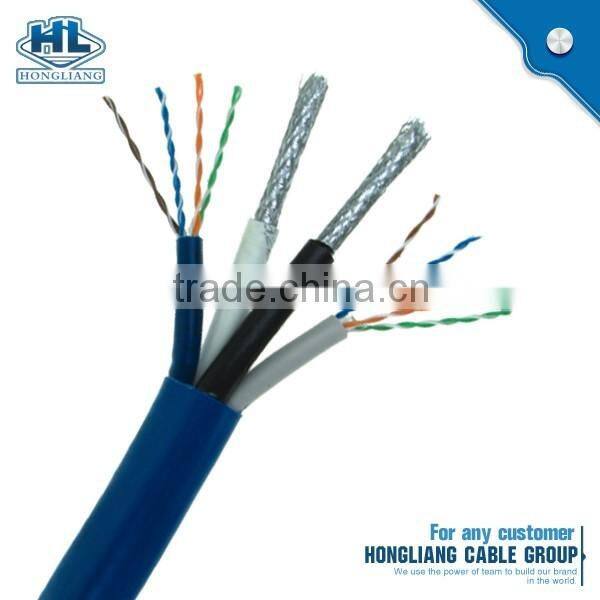

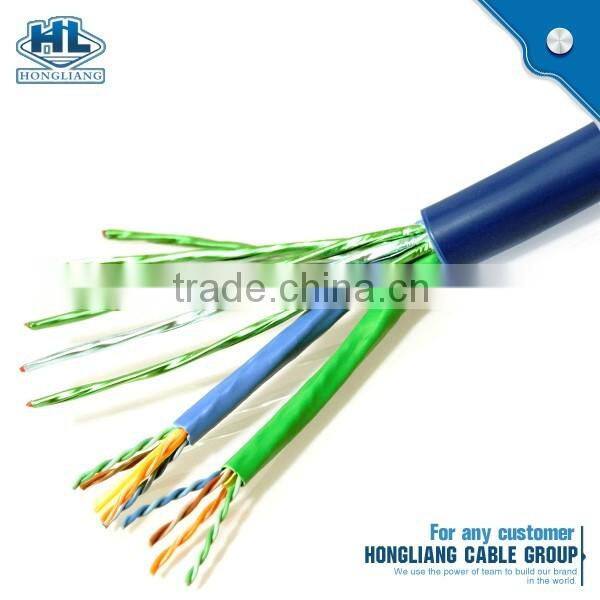

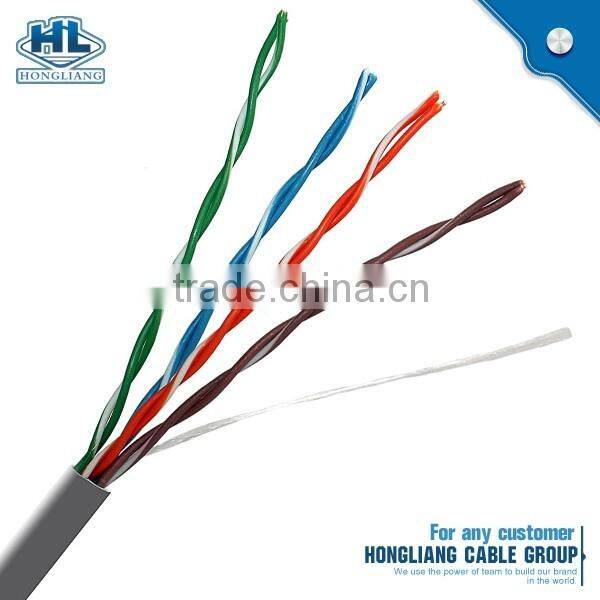

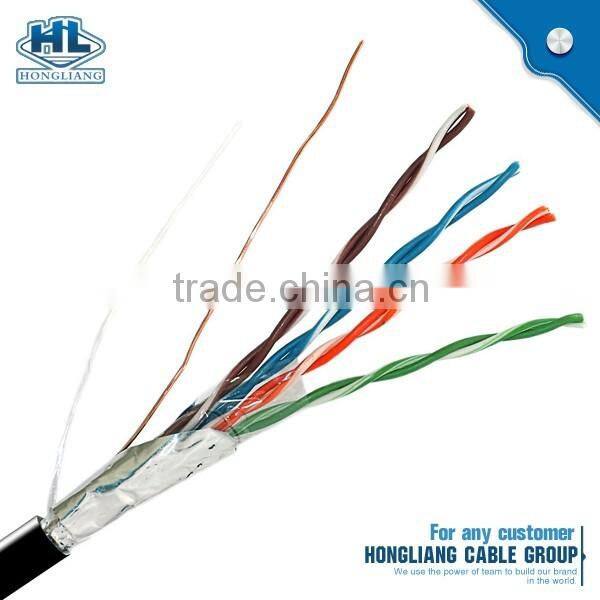

4. Picture show FTP UTP Cat5/Cat6 Lan Cable /Telephone Cable/Communication Cable/Networking Cable:
FTP UTP Cat5/Cat6 Lan Cable /Telephone Cable/Communication Cable/Networking Cable .
1.Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement.
2.By standard wooden drum or roll.
3.Drum size:1100mm*1100mm*1100mm.
or as your request.
FTP UTP Cat5/Cat6 Lan Cable /Telephone Cable/Communication Cable/Networking Cable.
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
FTP UTP Cat5/Cat6 Lan Cable /Telephone Cable/Communication Cable/Networking Cable.
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.
FTP UTP Cat5/Cat6 Lan Cable /Telephone Cable/Communication Cable/Networking Cable.
