Product Details
| Place of Origin: | Henan, China | Brand Name: | Zhenzhou hongliang | Model Number: | insulated crimping ferrules Ring Type |
| Insulation Material: | PVC | Application: | Other, cable terminal lugs | Conductor Material: | Other, T2 Copper Tube |
| Type: | Other, Crimp Terminal |
Product Description
Item name:insulated crimping ferrules Ring Type/cord end terminal cable lug.
1. Application of insulated crimping ferrules Ring Type/cord end terminal cable lug:
There products are suitable for the connection of copper conductors (section 1.5mm2-1000mm2) in power cable with electronic equiment they are made of with higher 99.9 percent pure copper tube T2 and coated with tin. working temperature -55°C -150°C .
2. Material Standard of insulated crimping ferrules Ring Type/cord end terminal cable lug:
1) These products are suitable for the connection of copper conductors (section 1.5mm2-630mm2) in power cable with electionic equipment
2) They are made of with higher 99.9 percent pure copper tube T2 and coated with tin.Working temperature 55 degrees below zero-155 degrees terminal connecto.
3. Executive standard of insulated crimping ferrules Ring Type/cord end terminal cable lug:
| ITEM | Dimension(mm) | |||
| D | d | L | ||
| SC(JGY)-1.5 | 4.2 5.2 | 3.5 | 2.1 | 18 |
| SC(JGY)-2.5 | 4.2 5.2 6.2 | 4 | 2.6 | 19 |
| SC(JGY)-4 | 5.2 6.2 | 4.8 | 3.4 | 21 |
| SC(JGY)-6 | 5.2 6.2 8.2 | 5.5 | 4.1 | 23 |
| SC(JGY)-10 | 6.2 8.2 | 6.5 | 5.1 | 26.5 |
| SC(JGY)-16 | 6.2 6.2 10.5 | 8 | 6.4 | 29.5 |
| SC(JGY)-25 | 6.2 8.2 10.5 | 9 | 7 | 33 |
| SC(JGY)-35 | 6.2 6.2 10.5 12.5 | 10.5 | 8.5 | 36 |
| SC(JGY)-50 | 8.2 10.5 12.5 | 12 | 9.8 | 43.5 |
| SC(JGY)-70 | 8.2 10.5 12.5 | 14.5 | 11.9 | 49.5 |
| SC(JGY)-95 | 10.5 12.5 | 16 | 13 | 53.5 |
| SC(JGY)-120 | 12.5 16.5 | 19 | 15.4 | 61 |
| SC(JGY)-150 | 12.5 16.5 | 20.5 | 16.7 | 68 |
| SC(JGY)-185 | 16.5 | 23.5 | 19.3 | 75 |
| SC(JGY)-240 | 16.5 | 26 | 21.2 | 85 |
| SC(JGY)-300 | 16.5 20.5 | 30 | 24 | 95 |
| SC(JGY)-400 | 16.5 20.5 | 34 | 27.6 | 111 |
| SC(JGY)-500 | 16.5 20.5 | 38 | 31.6 | 123 |
| SC(JGY)-630 | 20.5 | 45 | 37.6 | 140 |

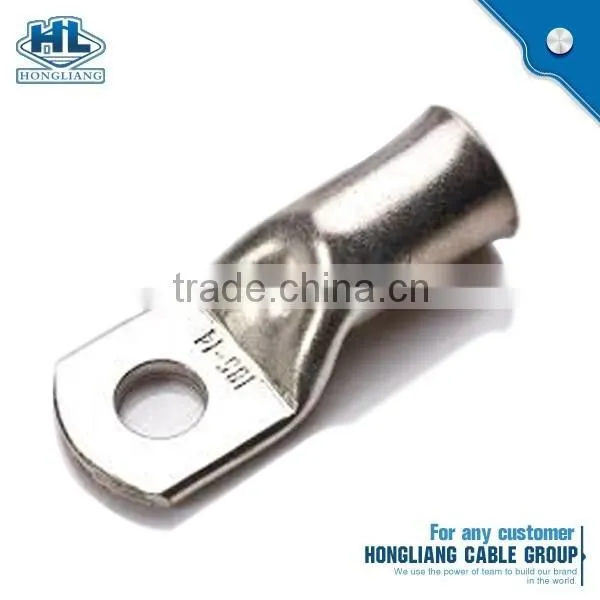

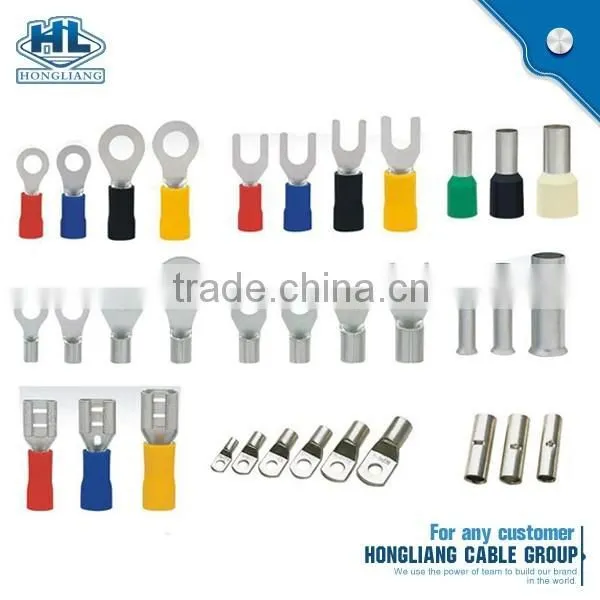

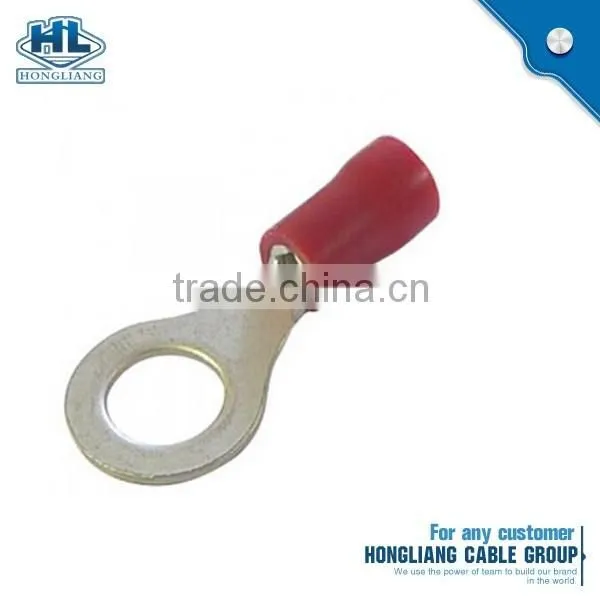

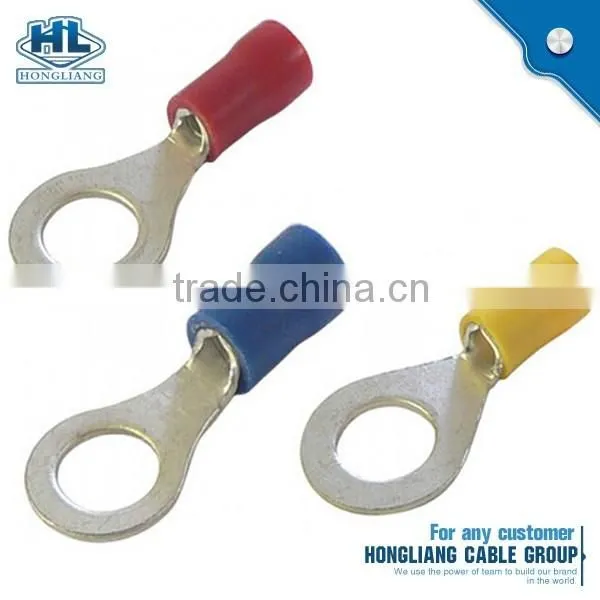

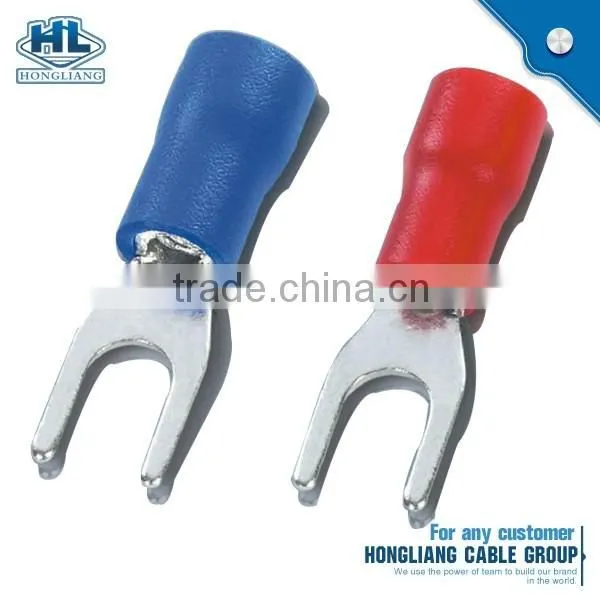

4. Picture show insulated crimping ferrules Ring Type/cord end terminal cable lug:
insulated crimping ferrules Ring Type/cord end terminal cable lug.
100pcs/bag, then into inner box, then into cartons. Provide OEM packing.
insulated crimping ferrules Ring Type/cord end terminal cable lug.
Hongliang Cable Co., Ltd.
Established Year: 1988
Registered capital of RMB:180,000,000
Total assets : 28.7millions
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 450
Main products:
Bare stranded conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);OPGW,0.6/1KV Aerial Bundled Cable (ABC Cable);Power cable,Electrical wire cable,Different voltages of XLPE insulated cables, Armored cables, Control cables, Rubber insulated cables, PVC insulated wires and cables, Battery cables,Instrument cables, Coaxial cables,Flat cables,Welding cables,House wire,Special Cables etc.
insulated crimping ferrules Ring Type/cord end terminal cable lug.
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.
insulated crimping ferrules Ring Type/cord end terminal cable lug.
