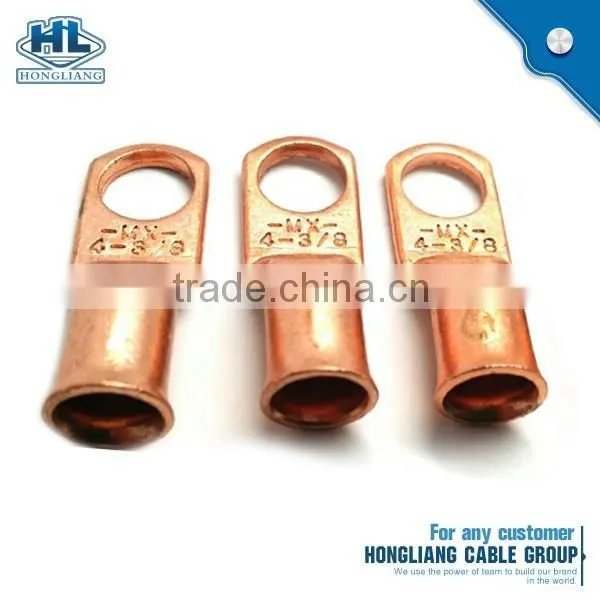

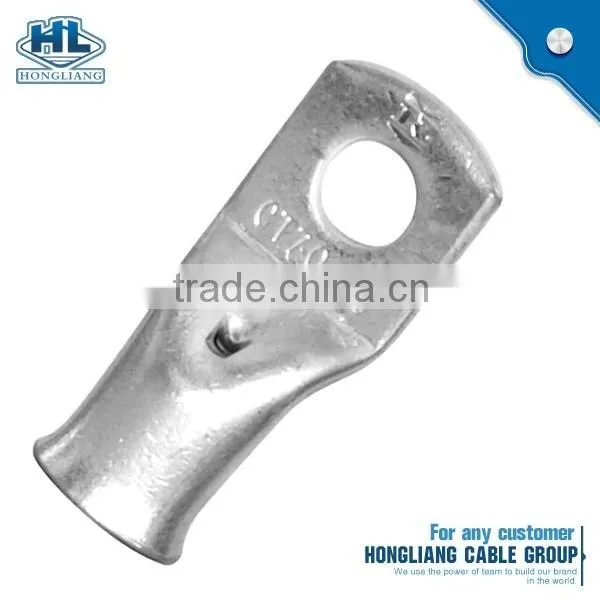

SC JGA copper imported tin-plated connecting terminals electrical crimp cable lug
Introduction:
There products are suitable for the connection of copper conductors (section 1.5mm2-1000mm2) in power cable with electronic equiment they are made of with higher 99.9 percent pure copper tube T2 and coated with tin. working temperature -55°C -150°C .
SC JGA copper imported tin-plated connecting terminals electrical crimp cable lug application:
1) These products are suitable for the connection of copper conductors (section 1.5mm2-630mm2) in power cable with electionic equipment
2) They are made of with higher 99.9 percent pure copper tube T2 and coated with tin.Working temperature 55 degrees below zero-155 degrees terminal connecto.
TYPE |
Φ |
D |
d |
L |
JG-10 |
6.2 |
8 |
5 |
38 |
JG-16 |
8.4 |
9 |
6 |
41 |
JG-25 |
8.4 |
10 |
7 |
46 |
JG-35 |
8.5 |
11 |
8 |
52 |
JG-50 |
8.5 |
13 |
10 |
54 |
JG-70 |
10.5 |
16 |
12 |
61 |
JG-95 |
10.5 |
18 |
14 |
66 |
JG-120 |
12.5 |
20 |
15 |
73 |
JG-150 |
12.5 |
23 |
17 |
77 |
JG-185 |
14.5 |
25 |
19 |
86 |
JG-240 |
16.5 |
27 |
21 |
83 |
JG-300 |
16.5 |
31 |
24 |
103 |
JG-400 |
18.5 |
34 |
26 |
113 |
JG-500 |
20.5 |
38 |
30 |
124 |
JG-630 |
22.5 |
45 |
35 |
140 |
SC JGA copper imported tin-plated connecting terminals electrical crimp cable lug packaging and shipping:
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery
Payment conditions 30% deposit in advance,70% balance before shipping.
Delivery time 3-7working days after deposit,2-4 working days for inventory
Packing Neutral carton,Wooden case for large size
Shipping By sea,by air and by express delivery
Packaging:
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
