Power Transmission AAC Cable Overhead electric wire
- 400000 Kilometer / Kilometers per Month
- Qingdao Shanghai Tianjin China
- T/T L/C D/P D/A Credit Card PayPal
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Henan, China | Brand Name: | Zhenzhou Hongliang | Model Number: | AAC |
Insulation Material: | Other, Bare | Type: | Other, AAC | Application: | Overhead |
Conductor Material: | Aluminum | Jacket: | Other, bare |
Product Description
Item name: Power Transmission AAC Cable Overhead electric wire .
1. Power Transmission AAC Cable Overhead electric wire :
The AAC cable ( All Aluminum stranded conductor) is a kind of bare conductor.
It's mainly used for electric overhead lines with little span, less stress.
Temperature for continuous use is up to 75 degree.
2. Material Standard of Power Transmission AAC Cable Overhead electric wire :
The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).
3. Executive standard of Power Transmission AAC Cable Overhead electric wire :
BS 215: 1970 AAC conductor
BS EN 50182:2001 AAC conductor
ASTM B231-90 AAC conductor
DIN48201-5-81 AAC conductor
IEC 610(1991-06) AAC conductor
Your special requirement is also OK for us.
AAC Technical Characteristics Based on Standard DIN 48201 / DIN EN50182:
Code number | Area | Number of wires | Wire diameter | Conductor diameter | Linear mass | Rated strength | D.C. resistance at 20oC |
mm2 | No. | mm | mm | kg/km | kN | Ω/km | |
16 | 15.9 | 7 | 1.7 | 5.1 | 43.4 | 3.02 | 1.7986 |
25 | 24.2 | 7 | 2.1 | 6.3 | 66.3 | 4.36 | 1.1787 |
35 | 34.4 | 7 | 2.5 | 7.5 | 93.9 | 6.01 | 0.8317 |
50 | 49.5 | 7 | 3 | 9 | 135.2 | 8.41 | 0.5776 |
50 | 48.3 | 19 | 1.8 | 9 | 132.9 | 8.94 | 0.5944 |
70 | 65.8 | 19 | 2.1 | 10.5 | 180.9 | 11.85 | 0.4367 |
95 | 93.3 | 19 | 2.5 | 12.5 | 256.3 | 16.32 | 0.3081 |
120 | 117 | 19 | 2.8 | 14 | 321.5 | 19.89 | 0.2456 |
150 | 147.1 | 37 | 2.25 | 15.8 | 405.7 | 26.48 | 0.196 |
185 | 181.6 | 37 | 2.5 | 17.5 | 500.9 | 31.78 | 0.1588 |

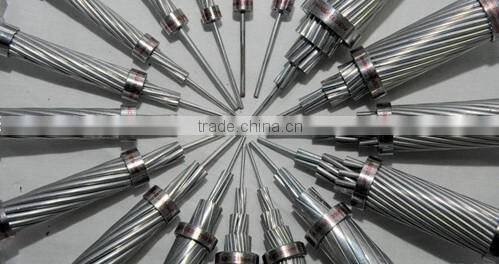

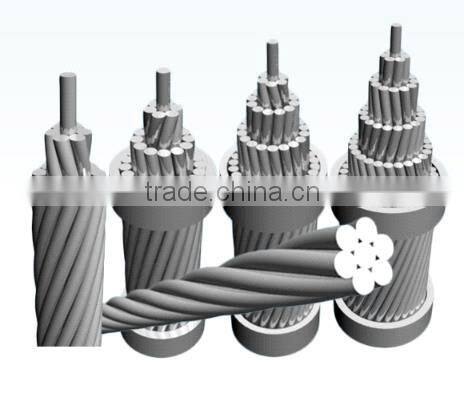

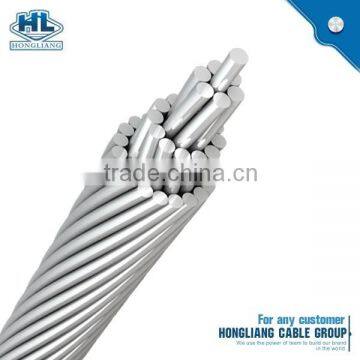

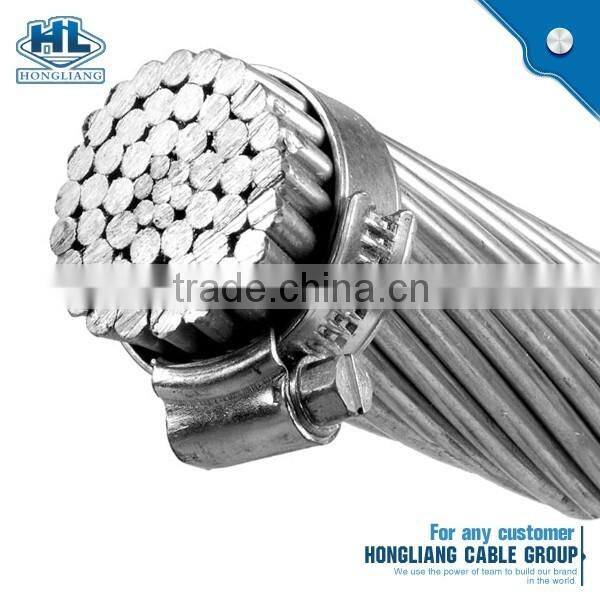

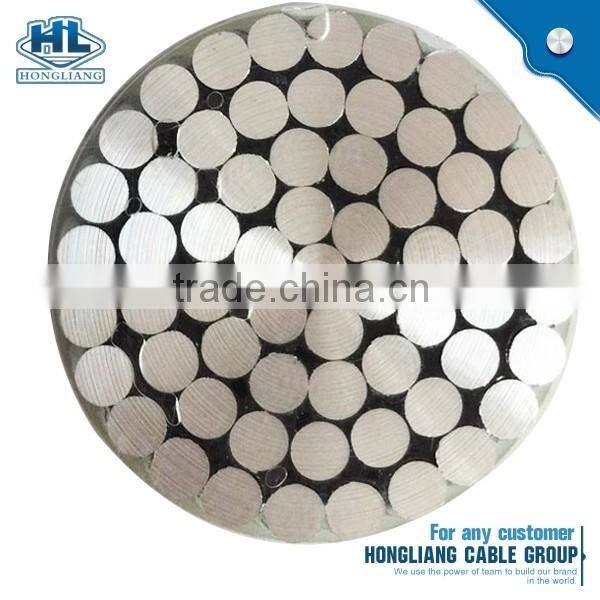

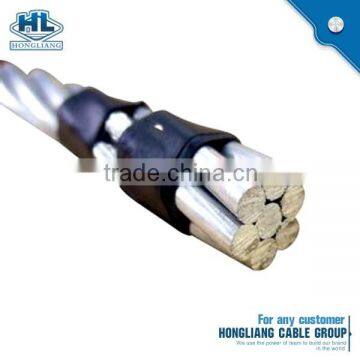

4. Picture show Power Transmission AAC Cable Overhead electric wire :
Power Transmission AAC Cable Overhead electric wire .
Power Transmission AAC Cable Overhead electric wire .
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1988, occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export power cable, all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR Conductor), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cable, welding cable, rubber cable ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
Power Transmission AAC Cable Overhead electric wire .
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
