Item name:British standard 120mm2 AAC All Aluminum Conductor .
1. Application of AAC All Aluminum Conductor :
The AAC cable ( All Aluminum stranded conductor) is a kind of bare conductor.
It's mainly used for electric overhead lines with little span, less stress.
Temperature for continuous use is up to 75 degree.
2. Material Standard AAC All Aluminum Conductor :
The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).
3. Executive standard :
BS 215: 1970 AAC conductor
BS EN 50182:2001 AAC conductor
ASTM B231-90 AAC conductor
DIN48201-5-81 AAC conductor
IEC 610(1991-06) AAC conductor
Your special requirement is also OK for us.
AAC All Aluminum Conductor based on standard DIN 48201 / DIN EN50182:
| Code number | Area | Number of wires | Wire diameter | Conductor diameter | Linear mass | Rated strength | D.C. resistance at 20oC |
| mm2 | No. | mm | mm | kg/km | kN | Ω/km | |
| 16 | 15.9 | 7 | 1.7 | 5.1 | 43.4 | 3.02 | 1.7986 |
| 25 | 24.2 | 7 | 2.1 | 6.3 | 66.3 | 4.36 | 1.1787 |
| 35 | 34.4 | 7 | 2.5 | 7.5 | 93.9 | 6.01 | 0.8317 |
| 50 | 49.5 | 7 | 3 | 9 | 135.2 | 8.41 | 0.5776 |
| 50 | 48.3 | 19 | 1.8 | 9 | 132.9 | 8.94 | 0.5944 |
| 70 | 65.8 | 19 | 2.1 | 10.5 | 180.9 | 11.85 | 0.4367 |
| 95 | 93.3 | 19 | 2.5 | 12.5 | 256.3 | 16.32 | 0.3081 |
| 120 | 117 | 19 | 2.8 | 14 | 321.5 | 19.89 | 0.2456 |
| 150 | 147.1 | 37 | 2.25 | 15.8 | 405.7 | 26.48 | 0.196 |
| 185 | 181.6 | 37 | 2.5 | 17.5 | 500.9 | 31.78 | 0.1588 |

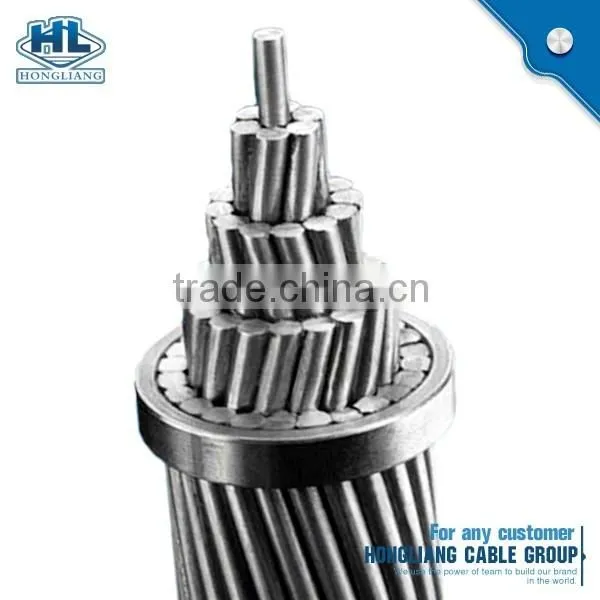

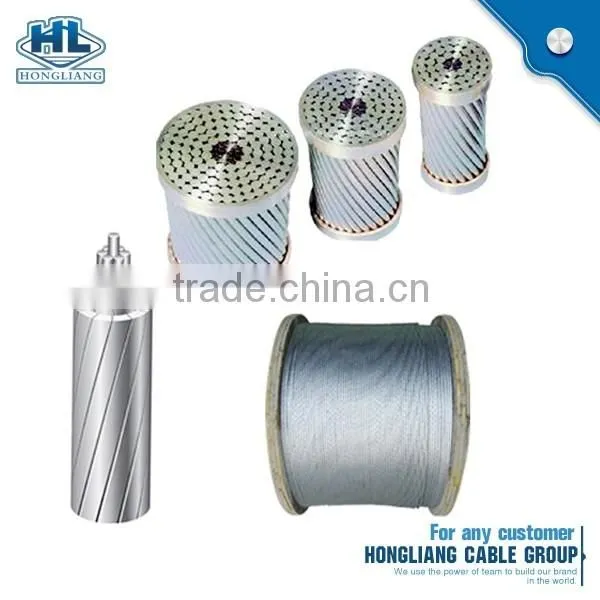

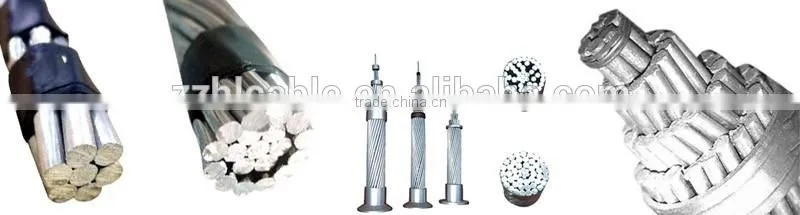

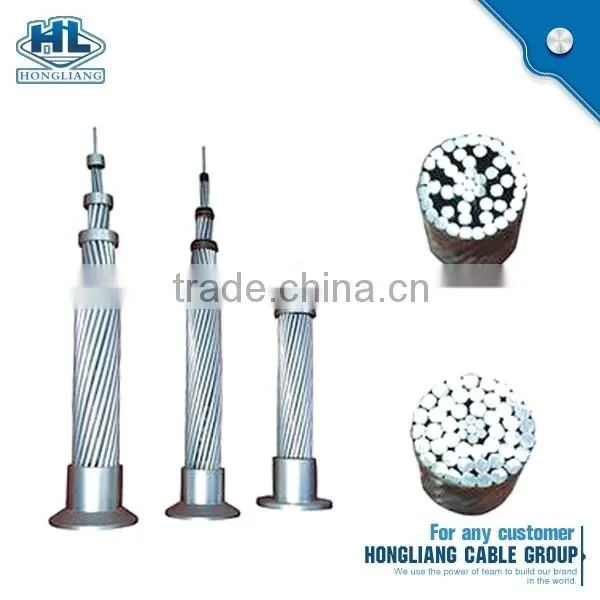

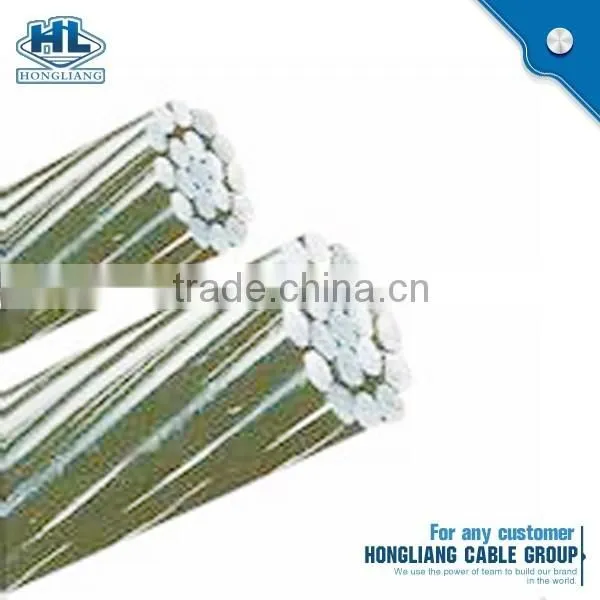

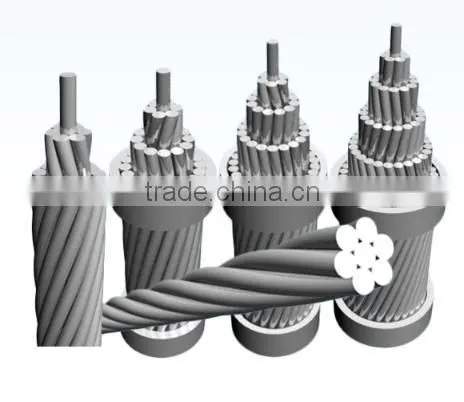

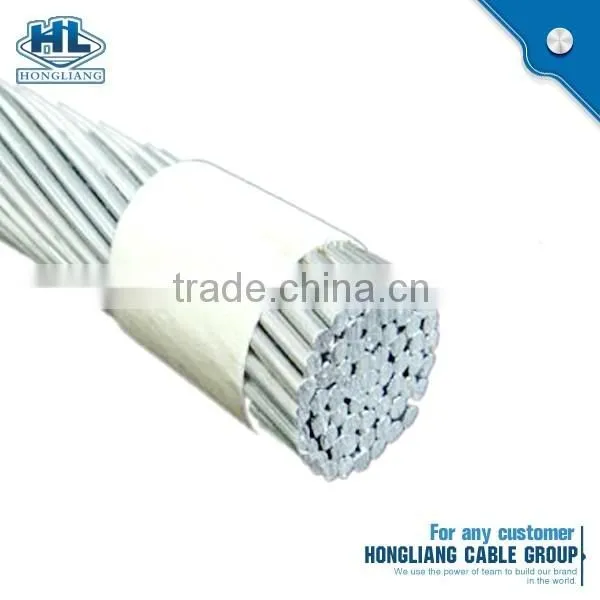

4. Picture show British standard for AAC All Aluminum Conductor :
British standard 120mm2 AAC All Aluminum Conductor .
British standard 120mm2 AAC All Aluminum Conductor .
Henan Huadong Cable Group is a joint stock enterprise that integrated in cable production, research & development,and domestic & international trade in China.
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable?Group ,and also is biggest professional import and export trade company in China.
The plant was founded in 1998,and occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cables, welding cables, rubber cables ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
We are adhering high quality and best service to make our HUADONG CABLE be famous all over the world. Thanks for your supporting and trusting! HUADONG CABLES welcomes your inquiry and visiting,we are at your service !
British standard 120mm2 AAC All Aluminum Conductor .
1.Quality is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.

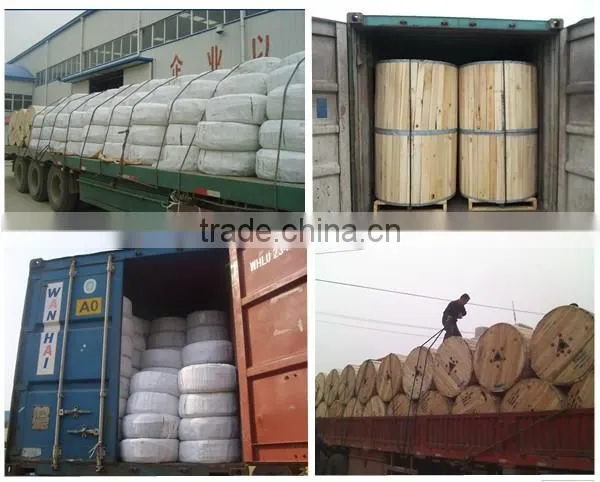

3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.
British standard 120mm2 AAC All Aluminum Conductor .
