Item name: ICEA Overhead ABC Oyster Cable abc cable xlpe insulated 0.6/1kv Aerial Bundled Cable
1. Application of ABC Aerial Bundled Cable :
Aerial Bundled Conductor (ABC) has an aluminium conductor with a XLPE sheath. ABC usually has 3 cores plus neutral, the neutral can either be bare or insulated and the cable can have a street light of 25mm². ABC is available in 600/1000v, 635/11kV or 12,7/22kV. We stock 1 core, 2 core and 3 core ABC cable.
2. Material Standard of ABC Aerial Bundled Cable :
Phase conductor-concentric strand or compressed 1350-H19 AAC conductor Insulator-XLPE(Cross-linked Polyethylene)or PE(polyethyene)Neutral conductor-Concentric strand AAC,ACSR,or AAAC conductor.
3. Executive standard :
ASTM B-230, B-231,B-232,B-399,ICEA S-76-474m,IEC61089,NFC33-209 or as your request.
|
SPEC mm2 |
Conductor structure |
Insulation Material |
Insulation Thickness (mm) |
Approx overall diameter (mm) |
Approx weight (kg/km) |
|
Phase (compacted Al) |
Neutral (alloy) |
|||||
No./mm |
No./mm |
|||||
1*16+1*16 |
7/1.72 |
7/1.72 |
XLPE
(HDPE) |
1.2 |
12.5 |
110.1 |
1*25+1*25 |
7/2.15 |
7/2.15 |
1.2 |
14.9 |
163.9 |
|
1*35+1*35 |
7/2.54 |
7/2.54 |
1.4 |
17.5 |
229.0 |
|
1*50+1*50 |
7/2.92 |
7/2.92 |
1.4 |
20.1 |
300.0 |
|
1*70+1*70 |
19/2.15 |
19/2.15 |
1.4 |
23.6 |
423.2 |
|
1*95+1*95 |
19/2.54 |
19/2.54 |
1.6 |
27.6 |
585.4 |
|
2*16+1*16 |
7/1.72 |
7/1.72 |
1.2 |
14.2 |
175.8 |
|
2*25+1*25 |
7/2.15 |
7/2.15 |
1.2 |
16.7 |
258.4 |
|
2*35+1*35 |
7/2.54 |
7/2.54 |
1.4 |
19.7 |
361.2 |
|
2*50+1*50 |
7/2.92 |
7/2.92 |
1.4 |
22.5 |
472.1 |
|
2*70+1*70 |
19/2.15 |
19/2.15 |
1.4 |
26.1 |
658.3 |
|
2*95+1*95 |
19/2.54 |
19/2.54 |
1.6 |
30.5 |
908.2 |
|
3*16+1*16 |
7/1.72 |
7/1.72 |
1.2 |
16.3 |
241.5 |
|
3*25+1*25 |
7/2.15 |
7/2.15 |
1.2 |
19.1 |
353.6 |
|
3*35+1*35 |
7/2.54 |
7/2.54 |
1.4 |
22.5 |
493.5 |
|
3*50+1*50 |
7/2.92 |
7/2.92 |
1.4 |
25.7 |
644.1 |
|
3*70+1*70 |
19/2.15 |
19/2.15 |
1.4 |
29.7 |
895.2 |
|
3*95+1*95 |
19/2.54 |
19/2.54 |
1.6 |
34.6 |
1233.5 |
|

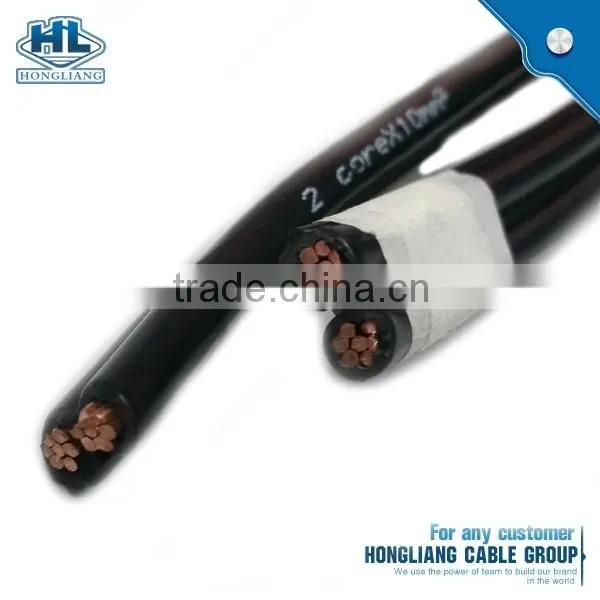

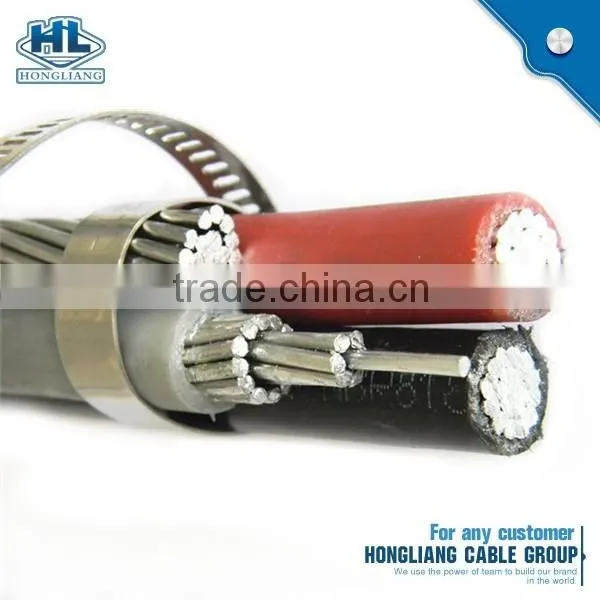

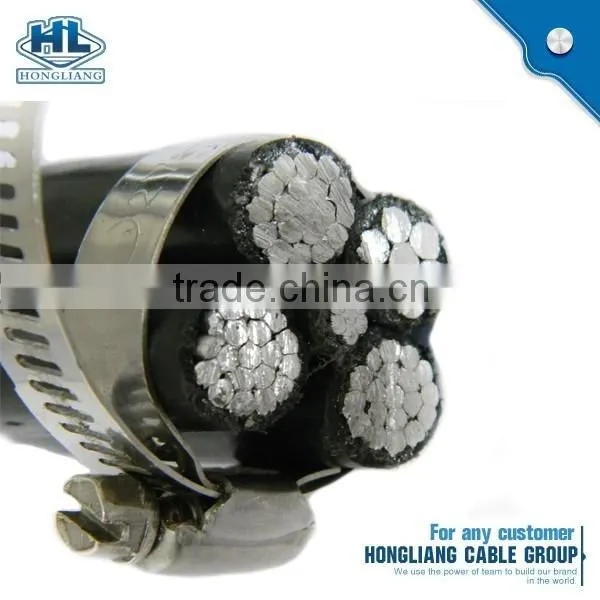

4. Picture show ABC Aerial Bundled Cable :
ICEA Overhead ABC Oyster Cable abc cable xlpe insulated 0.6/1kv Aerial Bundled Cable .
ICEA Overhead ABC Oyster Cable abc cable xlpe insulated 0.6/1kv Aerial Bundled Cable packing is :
Within 2 weeks after confirming the order BV Cable1) Packing length:100 to 1,000m reeled in carton drum or according to customers' requirement
2) Outer packing: wooden case, carton box
3) Other packing requirement according to client's request.
Zhengzhou Hongliang Cable Co.,ltd is one of the branch of Huadong Cable Group ,and also is biggest professional import and export trade company in China.
Henan Huadong Cable Group is a joint stock enterprise that integrated in cable production, research & development,and domestic & international trade in China.
The plant was founded in 1988,and occupied 50,000 square meters,with advanced equipments of 20 sets production lines and 25 sets testing machines,Annual production capacity is more than 12 million kilometers.
Our international branch is located in Zhengzhou city,which is well-known for convenient transportation . We mainly produce and export all aluminum conductor(AAC), aluminum conductor steel reinforced(ACSR), all aluminum alloy conductor(AAAC), overhead Aerial bundled ABC cable,1-66kV power cables(including XLPE insulated cables, PVC insulated cables, SWA/STA armored cables).(XLPE/PVC insulated ABC cable),control cables, welding cables, rubber cables ,mining cables and electrical wires(PVC sheathed flexible cable). These cables can be used for power transmission in air,underground and industry,such as power station, railway, agriculture, and estate. Our products honoured I S O 9 0 0 1:2 0 0 2 and CCC,PCCC,SGS,BV certificates. We strictly according to GB,IEC,BS,ICEA, ASTM, DIN, VED, JIS standards to manufacture the products, and also we can design and produce according to customers' requirements.We have exported wires and cables to European, South America, North America, Middle East, Africa, Asia,,Oceania countries and etc.
ICEA Overhead ABC Oyster Cable abc cable xlpe insulated 0.6/1kv Aerial Bundled Cable .
1.Qualiy is our culture. we are one of the most famous brand in China. Quality is verified by clients.
2. High-effiency oversale team makes your business much easier.
3. free samples are available for further evaluation and you are highly welcome to visit our factory anytime!
1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 - 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
Your best friend Fiona is always here waiting for your inquiry.
ICEA Overhead ABC Oyster Cable abc cable xlpe insulated 0.6/1kv Aerial Bundled Cable .
