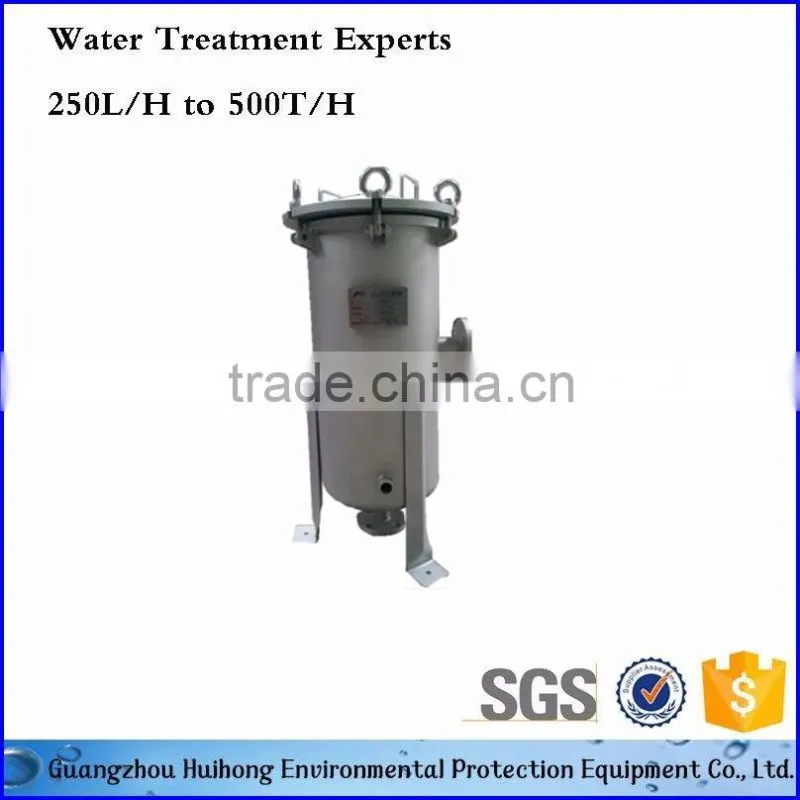

RO Equipment Water Purification System Cartridge Water Filter Housing

Working pressure:

0.6 / 1.0 / 1.6Mpa

Body Material:

Stainless steel (SUS304, SUS304L, SUS316, SUS316L).

Operating temperature:

5 ~ 40 ℃ (exceed 60 ℃ to be informed)

Design temperature:

5 ℃ -100 ℃

Replace the pressure:

0.05Mpa-0.07MPA

Filter interface:

flat compression, plug-in

Cylinder and base connection mode:

quick opening, flanged

Filtration accuracy:

1μm ~ 100μm

Cartridge Quantity:

1 core to 180 cores

Filter Length:

10 "~ 40"

Seal type:

O-ring or flat washer

Seal Material:

PTFE, rubber.

Finish:

 matte jet beads, mirror electrolytic polishing.

Sealing material:

nitrile rubber, silicone, Viton, standard configuration for the silicone seal.

Interface Type:

GB, HG, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on.

Flange Standard:

GB, HG, SH, HGJ, JB, ANSL, JIS and other standards. (User-specified, please indicate the pressure level)

Manufacturing, testing standard:

 GB150 standard, or user-specified criteria.
