The feature of the enameled copper clad aluminum wire areHigh adhesiveness.
Thermal stability.
Chemical resistance.
We can supply:
Enameled Copper Clad Aluminum wire (ECCA) :0.10mm-0.85mm
32% Copper Clad Aluminum wire (CCA) :0.10mm-0.80mm
10% Copper Coated Aluminum wire (CCA) :0.15mm-0.80mm
10% Copper Coated Aluminum&Magnesium wire (CCAM) :0.12mm-0.80mm
Enameled aluminum Wire (EAL):0.12mm-2.0mm
Enamelled Copper Clad Aluminum Wire(ECCA)
ECCA has excellent flexibility,scratch resistance,adhesion,electrical properties and solvent resistance properties.
1.Performance Features:
(a) good conductivity of copper,light weight of aluminum
(b) high signal transmission property
(c) direct soldering, good colorability , high adhesiveness
(d)thermal stability . high thermal endurance . high temperature softening breakdown
(h)HF-resistance , solvent resistance and chemical property resistance to winding damage
2.Application:
Widely used in electrical tools, ballasts, automotive electronics, refrigerator and air conditioner compressor motors, television sets, electric stove, microwave ovens, various transformers, and other kinds of electronic coil motors, electrical appliances, electronic compoment ,instrument windings ,communication equipment ,step motors , Refrigerator rating compressors, Ballast , Home appliance product. High heat-resistant electrical.
3 .Description:
Insulation: Polyester,Polyurethane,Polyester-imide
Model:QZ(PEW),QA(UEW), QZY(EIW),Q(ZY/XY) (EI/AIW)
Class:130/155/180/200/220
Copper Percentage: 10% copper and 32% copper
4.CERTIFICATE ADN STANDARD:
Manufacture standard: IEC Standard
ISO9001:2000 Quality Management System
Enameled Copper Clad Alumimum wire (ECCA): ROHS Authentication
Enameled wire (ECCA ,ECU ,EAL):SGS Authentication

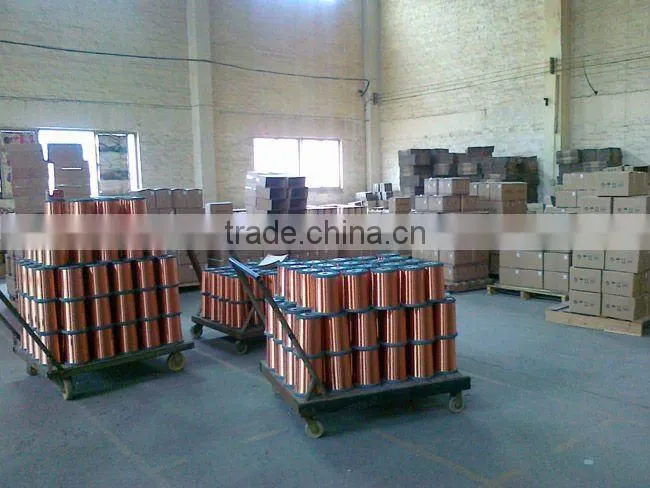

5.PACKING:

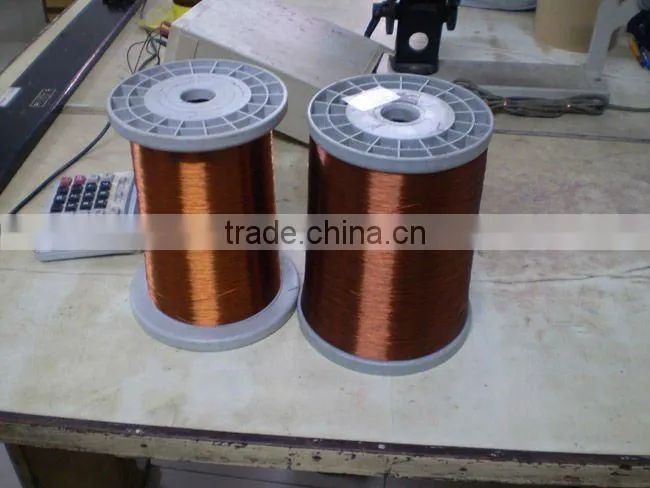

PLASTIC BOBBIN: |
PT-4 |
PT-10 |
PT-15 |
PT-25 |
TAKE UP WIRE SIZE(MM) |
0.12~0.15 |
0.16~0.21 |
0.23~0.59 |
0.6~0.85 |

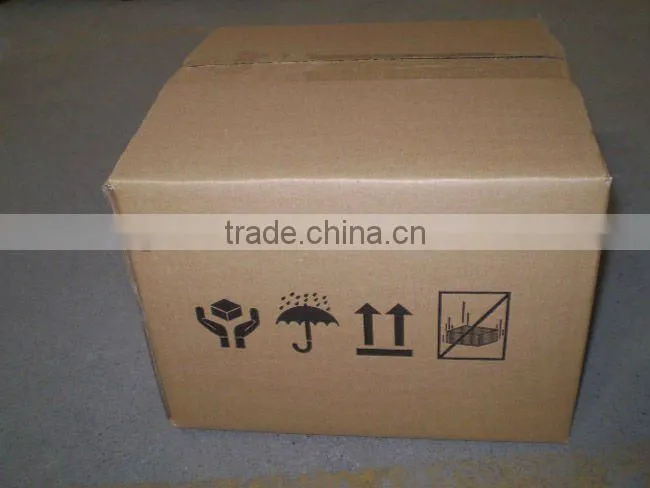

CBM/CARTON |
0.02 |
0.0175 |
0.021 |
0.0167 |
SPOOL/CARTON |
4 |
2 |
2 |
1 |
NET WEIGHT(KG/SPOOL) |
2.5 |
4.5 |
7 |
12 |
