GHL High Speed Mixing Granulator (RMG)
I. Product introduction
Features:
This mixing granulating machine adpots horizontal cylinder structure, its structure reasonable.
Air filled seal shaft for to drive. When washing, it can be changed to water.
Fluidized Granulation, the granule is around ball shape. Its flow ability is good.
Compared to traditional process, 25% of adhesive can be reduced and the drying time is short.
The dry mixing time is 2 minutes and the granulating time is 1-4 minutes. Compared to the traditional process, 4-5 times of efficiency is raised.
Dry mixing, humid mixing and granulating are finished in the same sealed container. It is in conformity with the requirements of GMP.
The whole operation has strict safe and protective measures.
Jacket type might be adopted on request.
Principle:

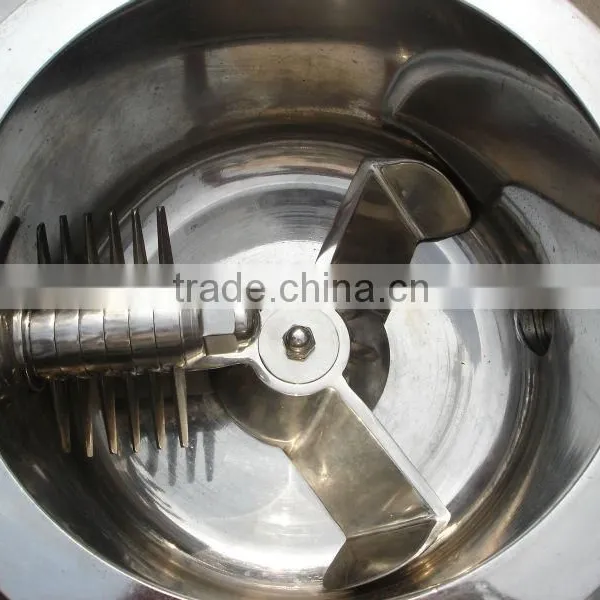

The powder raw material and adhesive in a cylinder are fully mixed at the bottom to become a humid soft material. Then it is cut by high-speed cutter and become uniform granule.
II. Technical parameters
Item |
Specification |
||||||||
Name |
unit |
10 |
50 |
150 |
200 |
250 |
300 |
400 |
600 |
Capacity |
L |
10 |
50 |
150 |
200 |
250 |
300 |
400 |
600 |
Output |
kg/batch |
3 |
15 |
50 |
80 |
100 |
130 |
200 |
280 |
Mixing speed |
r.p.m |
300/600 |
200/400 |
180/270 |
180/270 |
180/270 |
140/220 |
106/155 |
80/120 |
Admix power |
Kw |
1.5/2.2 |
4/5.5 |
6.5/8 |
9/11 |
9/11 |
13/16 |
18.5/22 |
22/30 |
Cutting speed |
r.p.m |
1500/3000 |
1500/ 3000 |
1500/ 3000 |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
Cutting power |
Kw |
0.85/1.1 |
1.3/1.8 |
2.4/3 |
4.5/5.5 |
4.5/5.5 |
4.5/5.5 |
6.5/8 |
9/11 |
Compressed air consumption |
m3/min |
0.6 |
0.6 |
0.9 |
0.9 |
0.9 |
1.1 |
1.5 |
1.8 |
Weight |
Kg |
250 |
500 |
800 |
1000 |
1300 |
1800 |
2200 |
2600 |

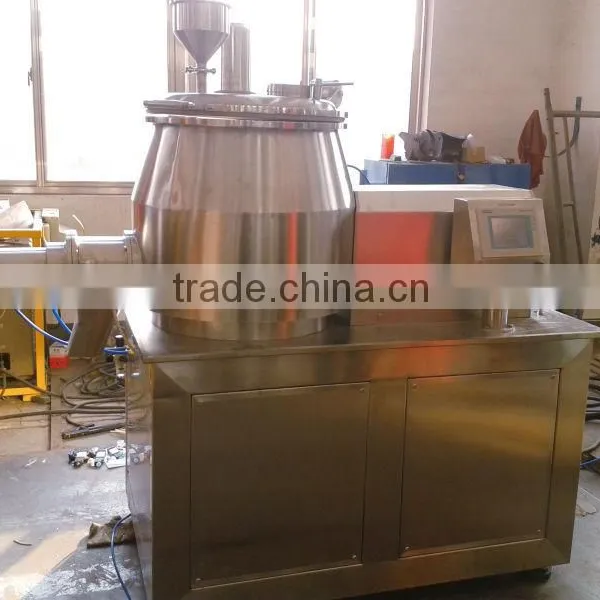

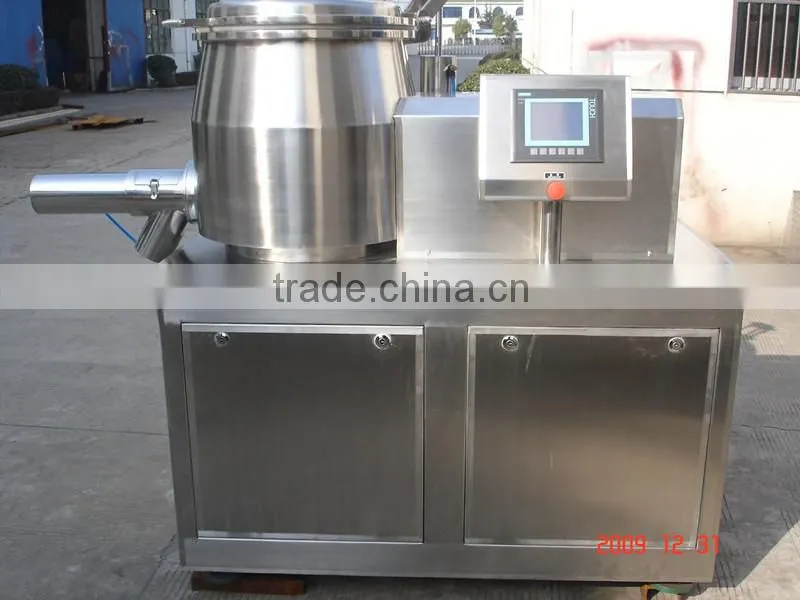

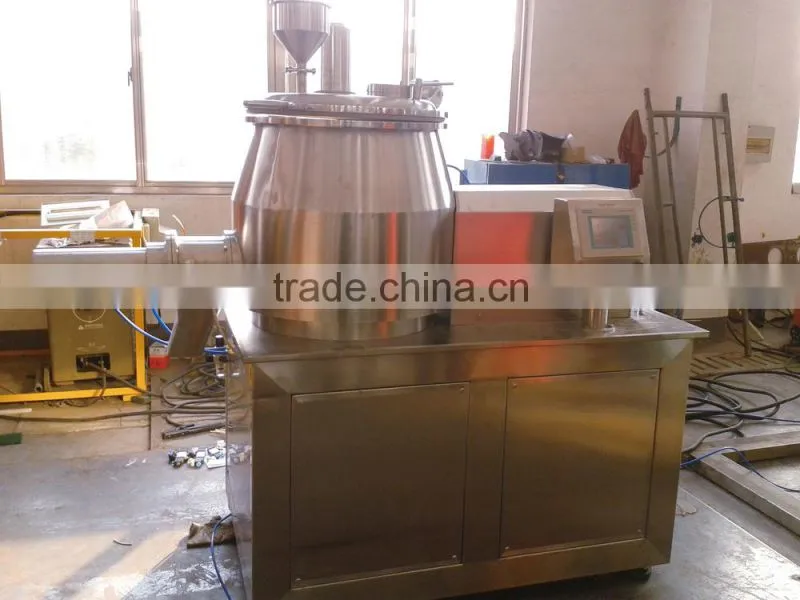

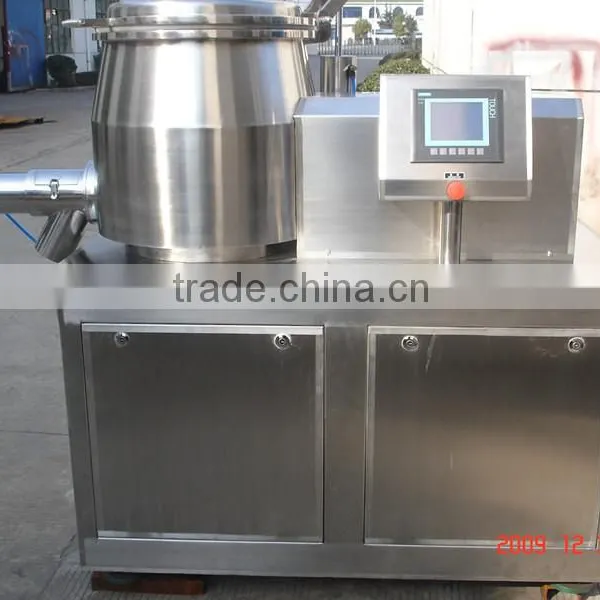

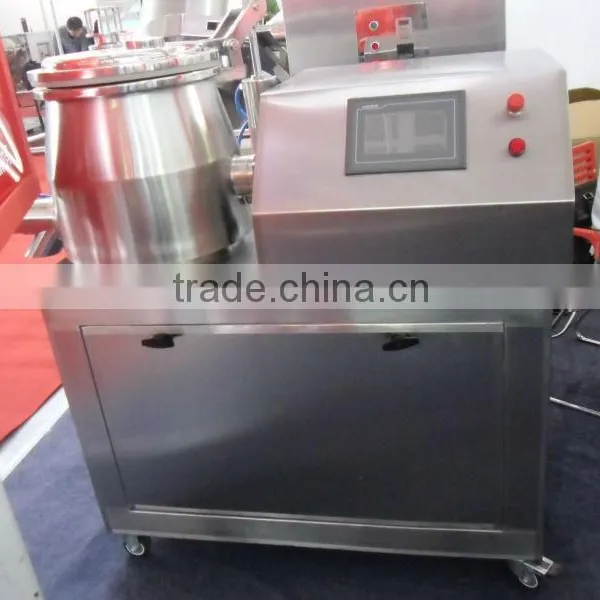

III. Machine photos
Changzhou Lemar Drying Engineering Co., Ltd is located in Zhenglu Industrial Park, Changzhou, Jiangsu, China. It’s only 3 kilometers from downtown and it tightly close to east-ring elevated road of Changzhou and Hengshan Exit of Shanghai-Nanjing Expressway. Our company undertakes large-scale drying technical engineering projects, design, manufacture and sale of drying equipments and industrial heat energy research. Now our products cover the field of drying equipments, granulating and coating equipments, crushing and mixing equipments and advantageous field of heat energy intensive device. The annual output for each kind of product reaches 500 sets.
We supply drying, granulating, mixing, sieving equipments as well as heat generating equipments!

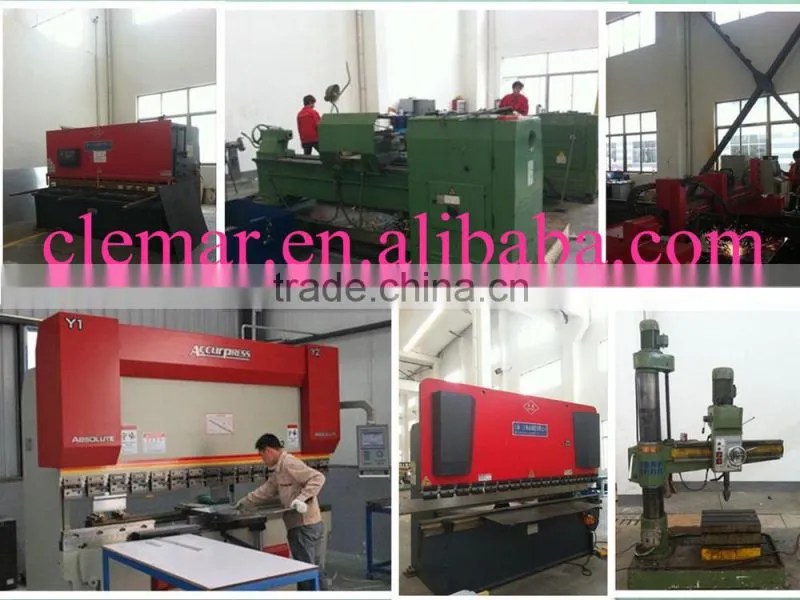

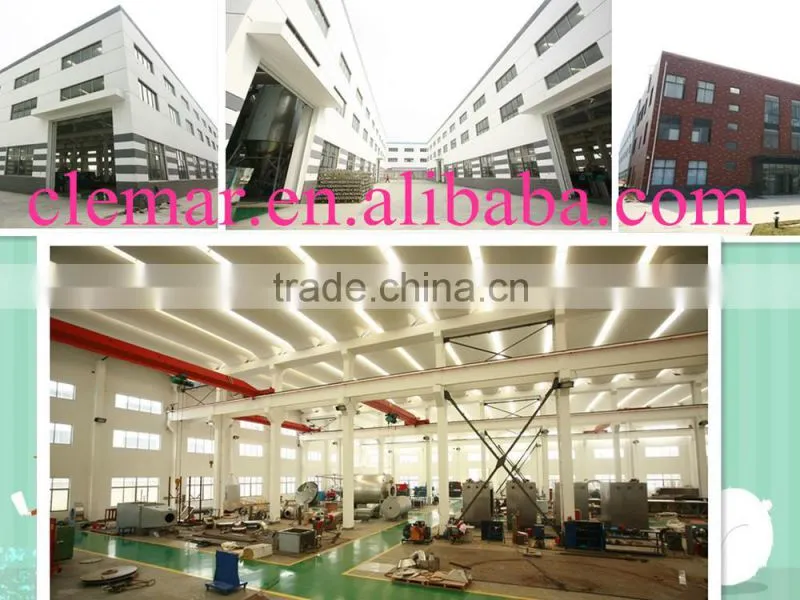

Our headquarters owns a 3000m2composite comprehensive office building, including the following modern office element: coffee bar, VIP reception office, meeting center and central air conditioning system etc. For the 2 large-scale modern machinery heavy-duty manufacturing workshop which covers an area of 10000 square meters are equipped with sheet metal cold processing equipment, 200 sets of welding machine and other special processing machines. Lemar has abundant technical force: a number of top professional talent which have above 10 years professional experience in drying industry engaged in design, mechanical drawing, electrical automation edit etc. We actively participate in market competition. Due to our well grounded, rich project management experience and advanced site construction technology, we obtained good performance and well-known reputation.
Lemar focus on technology, institution and cultural precipitation. In new historical time, Lemar will continuously unfold far seeing plan, unceasingly deepen strategic idea and strongly propel production management. Based on the development of enterprises, the growth of multi-security growing way and the wisdom of the workers, Lemar will rapidly upgrade comprehensive competitive power and struggle unremittingly to create itself an innovative and cultural enterprise.
Lemar focus on technology, institution and cultural precipitation. In new historical time, Lemar will continuously unfold far seeing plan, unceasingly deepen strategic idea and strongly propel production management. Based on the development of enterprises, the growth of multi-security growing way and the wisdom of the workers, Lemar will rapidly upgrade comprehensive competitive power and struggle unremittingly to create itself an innovative and cultural enterprise.
i. Our company shall delegate one team consists of one chief installers and one or two assistants for supervising the installation on the Buyer’s written request.
ii. Our company shall delegate one processor (or/and one electrician) for the commissioning and instruction of the Buyer's personnel on the Buyer’s written request.
