Help CenterFL Powder Fluid Bed Granulator/granulating Machine/granulating Equipment
Related Products

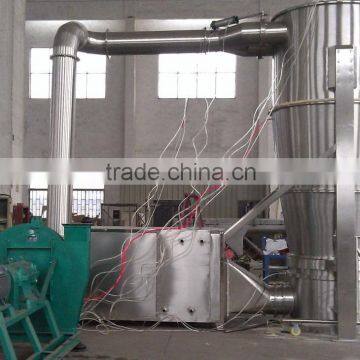

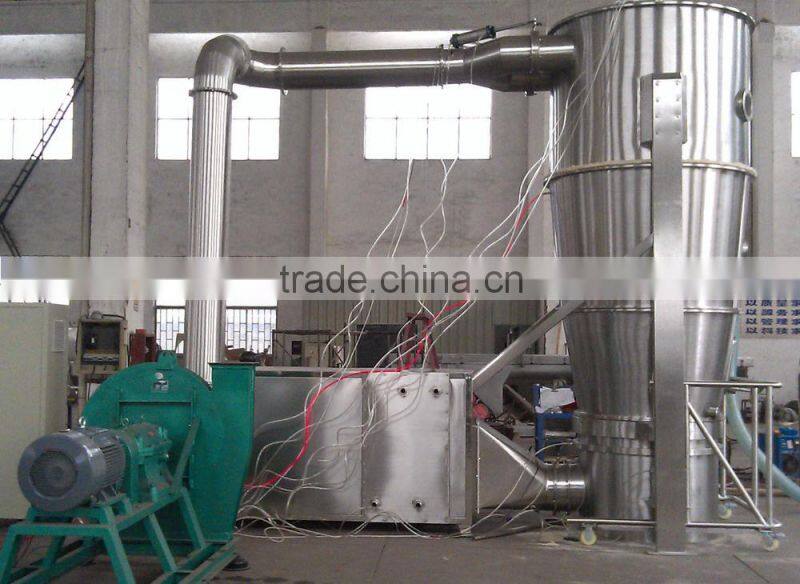

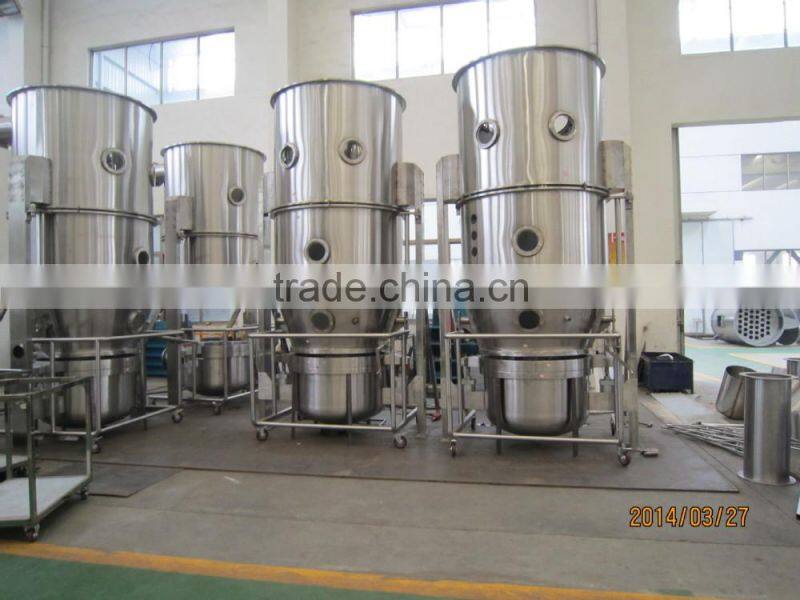

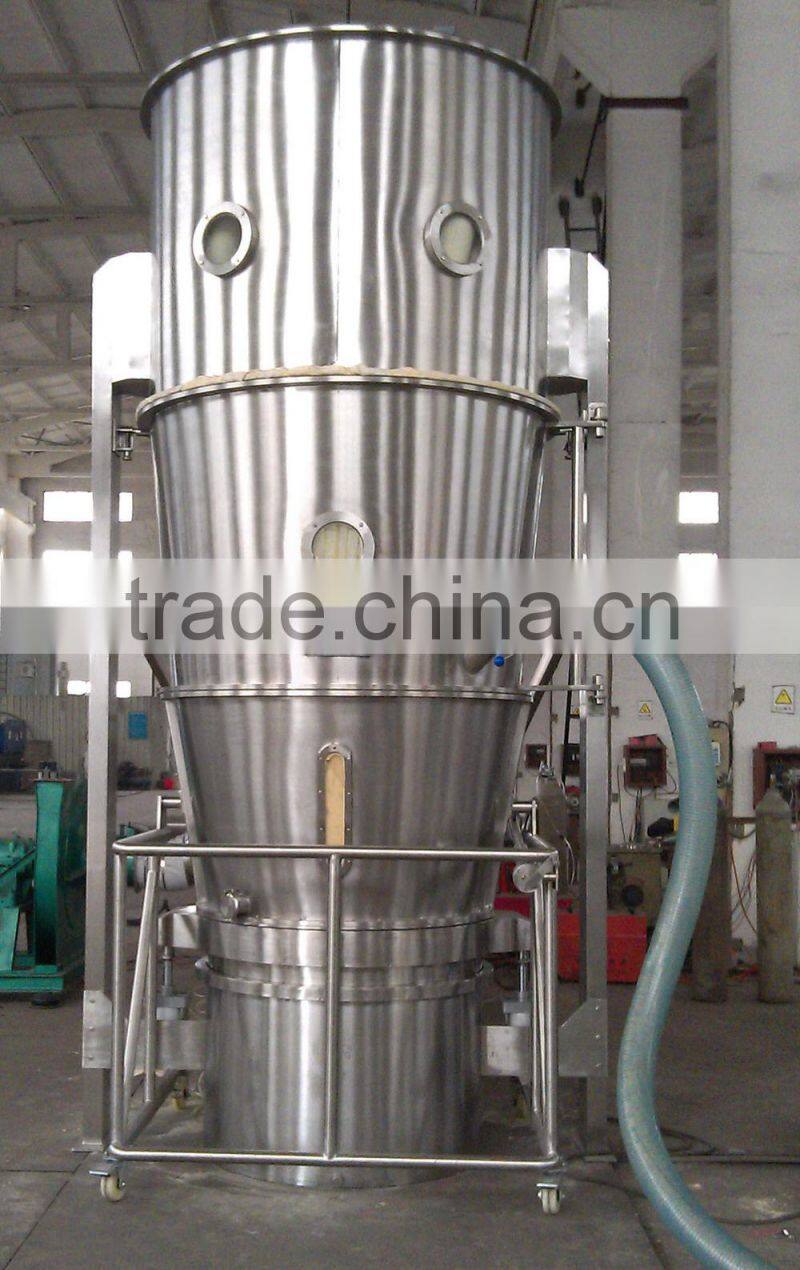

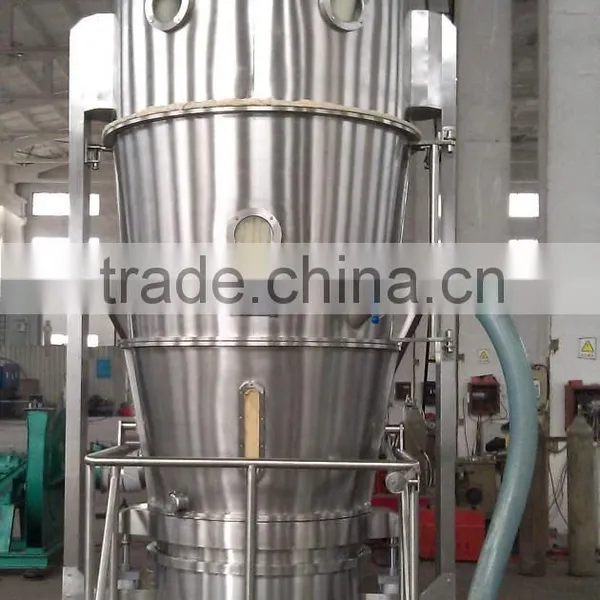

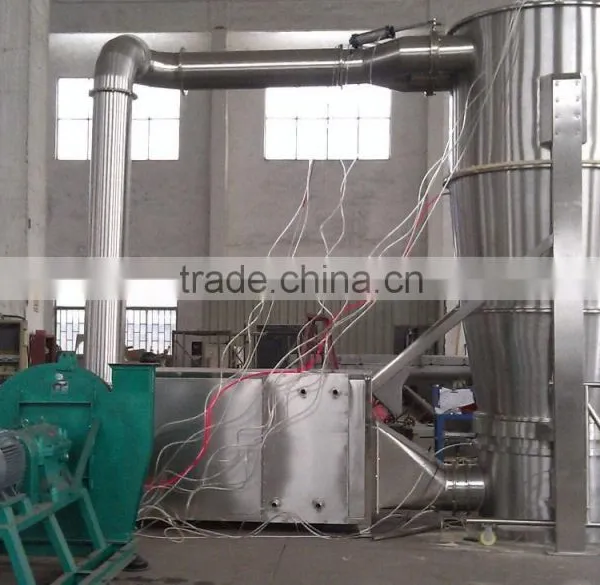

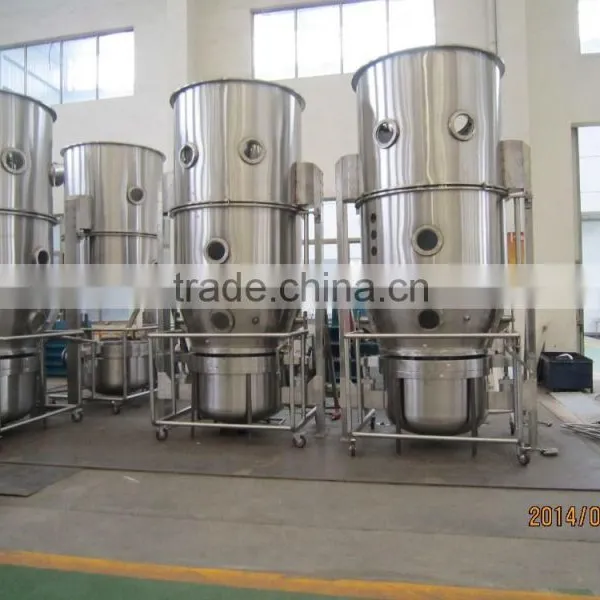

FL Fluid Bed Granulator
Preface:
Fluid bed granulator is a combination of mechanical design and manufacture technology. Therefore hundreds of Granulating machines either for China or exported to USA, Japan, Indonesia, Iran and many other countries are designed in accordance with the process of raw materials. We have manufactured decade’s specifications and 150 different machines to meet different needs. These practical experiences will be very beneficial to customers.
Features:
The flow ability is improved and the dust is reduced, because of Granulator.
Because of powder granulating, its solubility is improved,
Mixing, Granulator and drying processes are completed in one step inside the machine.
The operation is safe because the anti-static filter cloth adopted.
It's safe for operator if explosion take place, because explosion device is adopted.
No need corner. Therefore the loading and unloading are quick, light and clean, meet the requirements of GMP.
Applications:
Pharmaceutical industry: tablet capsule, low sugar or no sugar granule of Chinese traditional medicine.
Foodstuff: cocoa, coffee, milk powder, juice of granulates, flavoring and so on.
Other industries: pesticide, feed, chemical fertilizer, pigment, dyestuff and so on.
Drying: powder or granule state of wet material
Coating: protection layer, color, controlled release, film, or bowels solved coating of granules and pills.
Principle:
The powder granule in vessel (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.
Technical parameters:
Item |
Unit |
Spec |
||||||||||
3 |
5 |
15 |
30 |
60 |
120 |
200 |
300 |
500 |
1000 |
|||
Vessel |
Volume |
L |
12 |
22 |
45 |
100 |
220 |
420 |
670 |
1000 |
1500 |
3000 |
diameter |
mm |
300 |
400 |
550 |
700 |
1000 |
1200 |
1400 |
1600 |
1800 |
2200 |
|
Capability |
Min |
kg |
1.5 |
4 |
10 |
15 |
30 |
80 |
100 |
150 |
250 |
800 |
Max |
kg |
4.5 |
6 |
20 |
45 |
90 |
160 |
300 |
450 |
750 |
1200 |
|
Fan |
Velocity |
m3/h |
1000 |
1200 |
1400 |
1800 |
3000 |
4500 |
6000 |
7000 |
8000 |
13670 |
Pressure |
mmH2O |
375 |
375 |
480 |
480 |
950 |
950 |
950 |
950 |
950 |
1400 |
|
Power |
kw |
3 |
4 |
5.5 |
7.5 |
11 |
18.5 |
30 |
37 |
45 |
90 |
|
Steam consumption |
kg/h |
15 |
23 |
42 |
70 |
141 |
211 |
282 |
366 |
451 |
750 |
|
Compressed air expenditure |
m3/min |
0.9 |
0.9 |
0.9 |
0.9 |
1.0 |
1.0 |
1.1 |
1.5 |
3.0 |
4.0 |
|
Weight of the main body |
kg |
500 |
700 |
900 |
1000 |
1100 |
1300 |
1500 |
1800 |
2500 |
3500 |
|
Steam pressure |
MPA |
0.1-0.4 |
||||||||||
Temperature |
℃ |
adjustable at the range from room temperature to 120℃ |
||||||||||
Working time |
min |
45-90 decided in accordance with the properties of raw materials |
||||||||||
Collect rate |
% |
≥99 |
||||||||||
Noise |
dB(A) |
≤75dB (A) when do installation, main machine is separated from fan. |
||||||||||
Size (L×W×H) |
m |
1.0×0.6 |
1.2×0.7 |
1.25×0.9 ×2.5 |
1.6× 1.1 ×2.5 |
1.85×1.4 ×3 |
2.2×1.65 |
2.34×1.7 ×3.8 |
2.8×2.0 |
3×2.25 |
4×2.8 ×7.2 |
|
Changzhou Lemar Drying Engineering Co., Ltd is located in Zhenglu Industrial Park, Changzhou, Jiangsu, China. It’s only 3 kilometers from downtown and it tightly close to east-ring elevated road of Changzhou and Hengshan Exit of Shanghai-Nanjing Expressway. Our company undertakes large-scale drying technical engineering projects, design, manufacture and sale of drying equipments and industrial heat energy research. Now our products cover the field of drying equipments, granulating and coating equipments, crushing and mixing equipments and advantageous field of heat energy intensive device. The annual output for each kind of product reaches 500 sets.
We supply drying, granulating, mixing, sieving equipments as well as heat generating equipments!

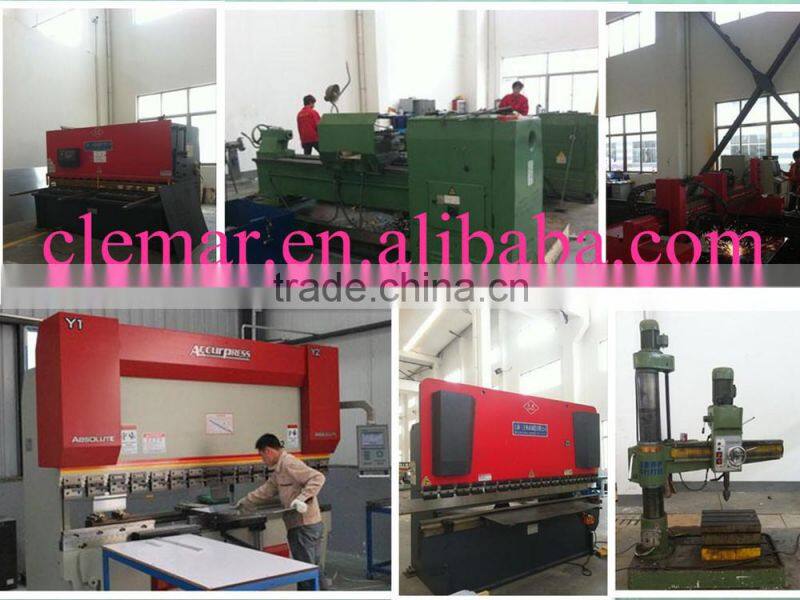

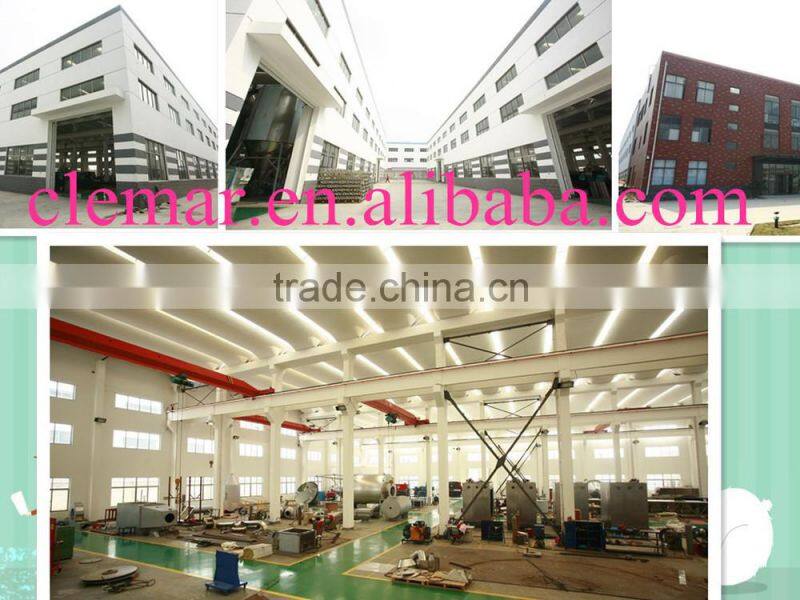

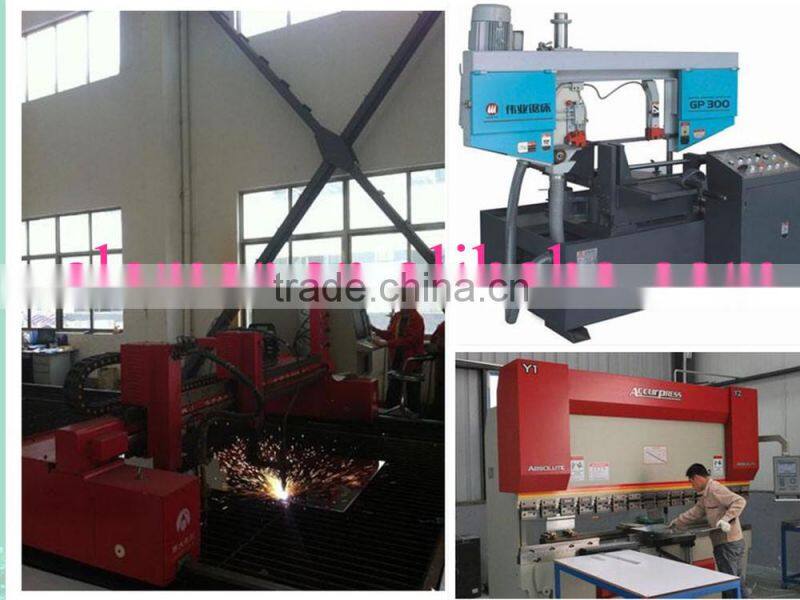

Our headquarters owns a 3000m2 composite comprehensive office building, including the following modern office element: coffee bar, VIP reception office, meeting center and central air conditioning system etc. For the 2 large-scale modern machinery heavy-duty manufacturing workshop which covers an area of 10000 square meters are equipped with sheet metal cold processing equipment, 200 sets of welding machine and other special processing machines. Lemar has abundant technical force: a number of top professional talent which have above 10 years professional experience in drying industry engaged in design, mechanical drawing, electrical automation edit etc. We actively participate in market competition. Due to our well grounded, rich project management experience and advanced site construction technology, we obtained good performance and well-known reputation.
Lemar focus on technology, institution and cultural precipitation. In new historical time, Lemar will continuously unfold far seeing plan, unceasingly deepen strategic idea and strongly propel production management. Based on the development of enterprises, the growth of multi-security growing way and the wisdom of the workers, Lemar will rapidly upgrade comprehensive competitive power and struggle unremittingly to create itself an innovative and cultural enterprise.
Lemar focus on technology, institution and cultural precipitation. In new historical time, Lemar will continuously unfold far seeing plan, unceasingly deepen strategic idea and strongly propel production management. Based on the development of enterprises, the growth of multi-security growing way and the wisdom of the workers, Lemar will rapidly upgrade comprehensive competitive power and struggle unremittingly to create itself an innovative and cultural enterprise.
FAQ
i. Our company shall delegate one team consists of one chief installers and one or two assistants for supervising the installation on the Buyer’s written request.
ii. Our company shall delegate one processor (or/and one electrician) for the commissioning and instruction of the Buyer's personnel on the Buyer’s written request.
