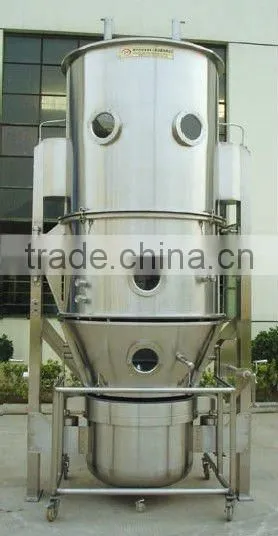

Help CenterFL Fluid Bed Granulator Dryer
Related Products
-
BZJ Centrifugal Granulator/ CoaterUS$ 10,000 - 50,000MOQ: 1 Set -
Fluid Bed GranulatorUS$ 10,000 - 50,000MOQ: 1 Set
-
LBF Agrochemical Fluid Bed GranulatorUS$ 10,000 - 50,000MOQ: 1 Set
-
PPL Pelleting System / Solid Preparation PlantUS$ 10,000 - 50,000MOQ: 1 Set
-
PPP Wet Granulating SystemUS$ 10,000 - 50,000MOQ: 1 Set
Specifications
Fluid bed granulator dryer:1.Mixing, granulating, drying in one step
2.easy to operate
General description of FL Fluid bed granulator dayer:
The machine is mainly used for the operations of mixing, granulating, drying and coating of granule "Top Spraying", etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
The machine is manufactured in accordance with JB20014-2004 <Fluid-bed Granulator In Medicine >.
Features of FL Fluid bed granulator dryer:
Mixing-granulating-drying in one-step.
Adopting double chamber filtering bags system, remove dust completely.
Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is very low.
Can choose 2 bar explosive-proof design
Designed, manufactured and laid out by GMP
Item |
specification |
||||||||||||||
Name |
Unit |
3 |
5 |
15 |
30 |
45 |
60 |
90 |
120 |
150 |
200 |
300 |
500 |
800-1000 |
|
Container Volume |
L |
12 |
22 |
45 |
100 |
155 |
220 |
300 |
420 |
550 |
670 |
1000 |
1500 |
By client
|
|
Capacity |
kg/batch |
3 |
5 |
15 |
30 |
45 |
60 |
90 |
120 |
150 |
200 |
300 |
500 |
||
Steam |
Pressure |
Mpa |
0.4-0.6 |
||||||||||||
Consumption |
kg/h |
10 |
18 |
35 |
60 |
99 |
120 |
130 |
140 |
161 |
180 |
310 |
400 |
||
Power of fan |
kw |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
22 |
30 |
45 |
||
Power of electricity heater |
kw |
6 |
9 |
||||||||||||
Noise |
dB |
Not more than 75dB Separated of fan |
|||||||||||||
Compressed air |
Pressure |
Mpa |
0.6 |
||||||||||||
Consumption |
m 3 /min |
0.3 |
0.3 |
0.6 |
0.6 |
0.6 |
0.9 |
0.9 |
0.9 |
0.9 |
1.1 |
1.3 |
1.5 |
||
