PPL Pelleting System / Solid Preparation Plant
US$ 10,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Lemar
Model Number:
PPL
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PPP Wet Granulating SystemUS$ 10,000 - 50,000MOQ: 1 Set -
Desiccated Coconut DryerUS$ 50,000 - 1,000,000MOQ: 1 Set
-
Desiccated Coconut Dryer/DC Dryer/Coconut Drying Equipment/coconut Belt Dryer/Conveyor DryerUS$ 50,000 - 1,000,000MOQ: 1 Set
-
DZB Fluid Bed CoaterUS$ 10,000 - 50,000MOQ: 1 Set
-
WDG Production Process/ Wet Granulating Production ProcessUS$ 100,000 - 600,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
Lemar
Model Number
PPL
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Pelleting system:1. easy to operate and clean
2. pharmaceutical pelleting
3. agrochemical pelleting
4. WDG pelleting
General description of PPL pelleting system:
1.PPL Pelleting System is widely used in pharmaceutical industry, agrochemical industry, WDG industry, chemical industry, etc.
2.It consists of mixing, granulating, pelleting, drying and sieving five steps. So this pelleting system consists of CH Slot Mixer, XL extruding granulator, QZL pelletizer, GFG high efficient fluid bed dryer and ZS vibration sieve.
3.The specification is decided by your capacity.
Work principle of PPL pelleting system:
- First, the row material will be added into the CH Slot Mixer, by Machinery transmission, the machine makes stirring oar rotate, drive material turning fro-and-to, after even mixing, add the binder, then made into the required damp material which conforms next step.

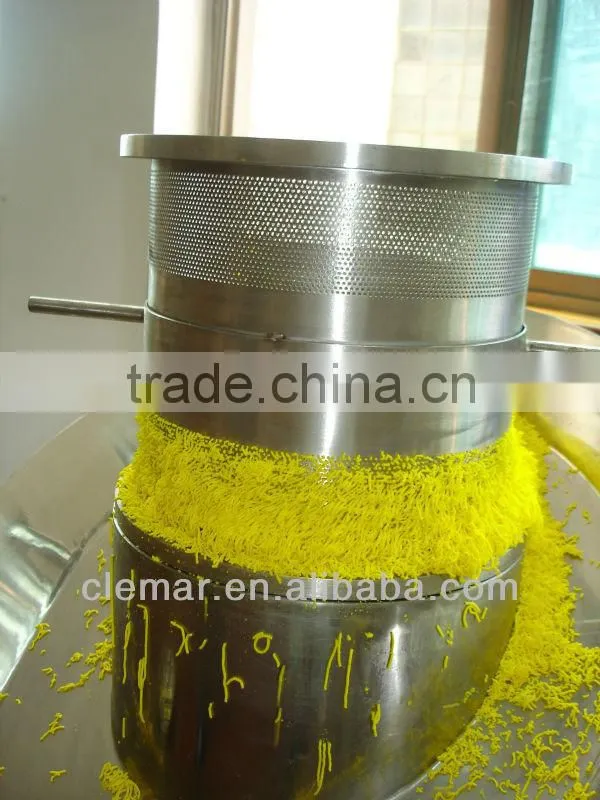

- Second, by using the CH mixing, you can get wet material in the first step, and in this step, the equally mixed soft material are forced to pass the sieve under the extrusion force of grinding impeller (by using the machine XL extruding granulator), then the uniformed length column grain will be obtained by the cutting force of outside scrape impellers.
- After finished Extrusion Granulation in the last step, feeding damp granule into rotating centrifugal disk (by using QZL pelletizer), start fan and then start rotating centrifugal disk. It can make the damp granule undertaken the action of air floating force in ring gap, rotating centrifugal strength and gravity itself, appear circle rope-turning movement and become high-degree ball shape pellet.
- In this step, the Wet ball shape Granules are introduced into the GFG High Efficiency Fluid-Bed Dryer
- In the last step, the dried pellet will be introduced into the ZS vibration sieve, by sieving the uniform size pellet can be obtained.

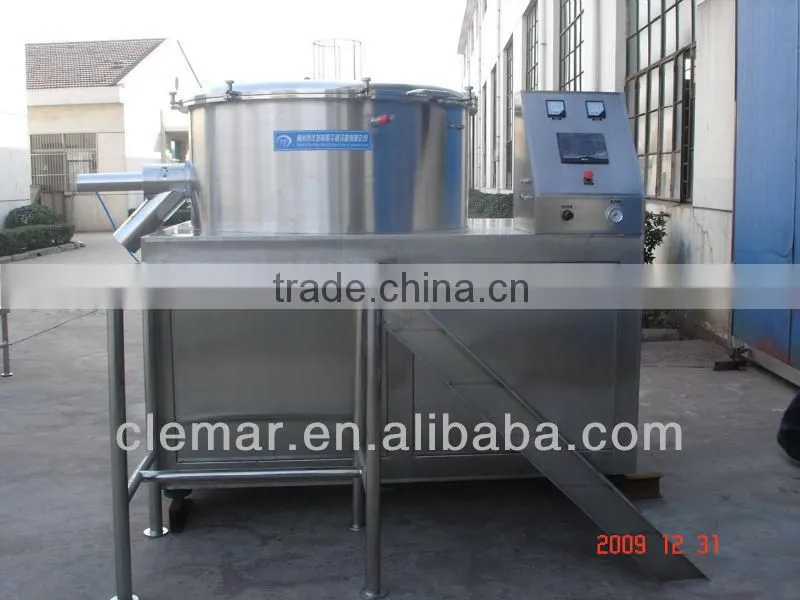

CH Slot Mixer
ZL Extruding Granulator
QZL Pelletizer

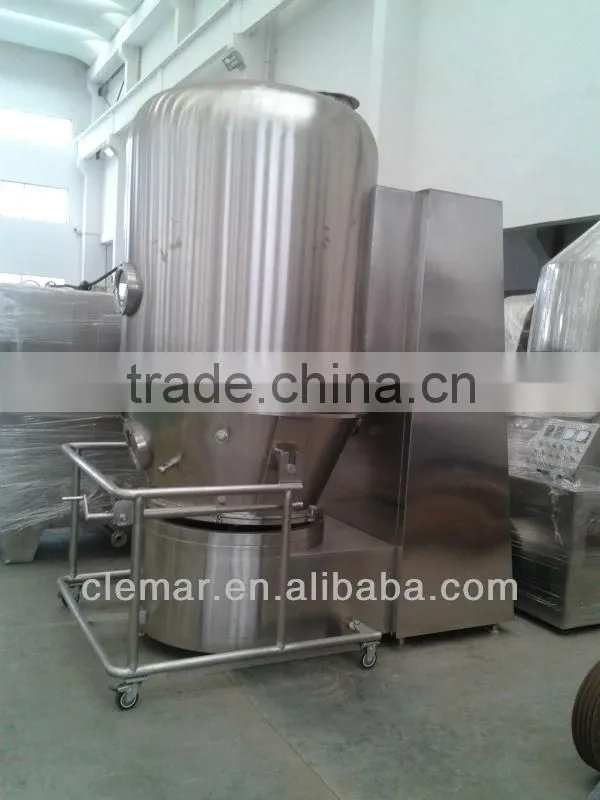

GFG High Efficient Fluid Bed Dryer

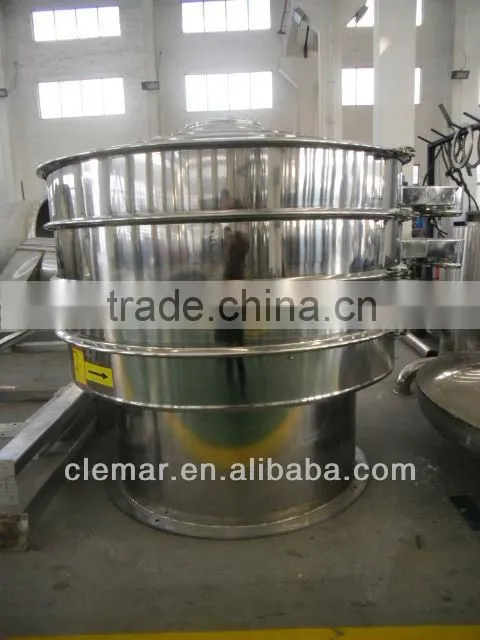

ZS Vibration Sieve
