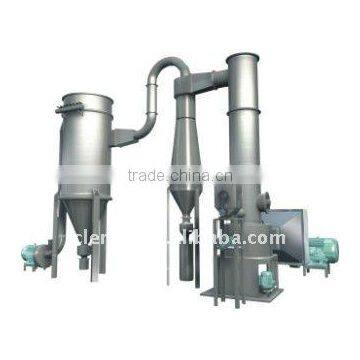

XSG Graphite Flash Dryer

XSG Graphite Flash Dryer thumbnail-1
XSG Graphite Flash Dryer photo-1
US$ 10,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Flash Drying Equipment
Place of Origin:
Jiangsu, China
Brand Name:
Lemar
Contact Supplier Request Quote Chat Now
Changzhou Lemar Drying Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Flash Drying Equipment
Place of Origin Jiangsu, China
Brand Name Lemar
Model Number XSG

Specifications

Graphite Flash Dryer
1,The powder was made from solution directly.
2,Apply to powder,granule
3,Feeding stably

General Application of Graphite Flash Dryer

Hot air enters into stirring and drying chamber from the bottom of dryer with suitable atomizing speed. It exerts strong shearing, blowing, floating and rotating effect to raw material. Therefore raw material is granulated through centrifugating, shearing, impacting and friction effect. It strengthens the process of heat exchange. At the bottom of dryer, the large and damp granule is crushed under the action of stirrer and the granule that is small in particle and contain less moisture will lift accompanied with revolving air stream. During the period of lift, it is dried further. Because gas and solid two phases flow in heat exchange, so the machine has strong drying capacity

Feature of Graphite Flash Dryer

1,Hot air enters into stirring and crushing and drying chamber from the bottom of drier with suitable atomizing speed. It exerts strong shearing, blowing, floating and rotating effect to raw material

2,Dry gas enters into the bottom of drier,generating strong rotating airflow, thus making a strong rushing effect for the material stuck on the wall to eliminate the phenomenon that the material stuck on the wall.

3,In the high temperature zone of the bottom of dryer, heat sensitive material does not close contact with hot surface, and special device was equipped at the bottom of dryer to solve the problem that the coking discoloration of heat-sensitive materials.

4,Due to the high speed of gas at circle inside the drying chamber and the staying time of raw material is short, high efficiency and quick speed can be realized.

5,There are elutriation ring and rotating flow at the top of the drying chamber to control the size and temperature of the product. So it can meet the requirement moisture and granule of different raw material.

Application scope of Graphite Flash DryerAtrazine (pesticides),lauric acid cadmium benzoic acid, sodium oxalate, sterilization Dan, cellulose acetate, organic pigments, etc

Dyestuff : Anthraquinones, black iron oxide, indigo dye, butyrate, titanium oxide, zinc sulfide, various azo dye intermediates

Inorganic substance: Borax, calcium carbonate, hydrogen peroxide, copper sulfate, ferric oxide, TanSuanBei, three antimony oxide, all kinds of metal salt,synthetic cryolite etc.

Food: Soybean protein, gelatinized starch, vinasse, triticum, wheat starch

Technical parameters of Graphite Flash Dryer

model dia of barrel(mm) size of main machine(mm) power of main machine(Kw) air processing volume(m3/h) evaporated capacity(kg/h) occupied area(mm2)
XSG-2 200 250?800 0.75-2.2 300-800 10-20 3500×2500
XSG-3 300 400?300 3-4 600-1500 20-50 3800×2700
XSG-4 400 500?500 4-7.5 1250-2500 25-70 4000×3000
XSG-5 500 600?000 5.5-11 1500-4000 30-100 4200×3200
XSG-6 600 700?200 7.5-18.5 2500-5000 40-200 4250×3250
XSG-8 800 900?600 11-18.5 3000-8000 60-600 4500×3500
XSG-10 1000 1100?000 15-30 5000-12500 100-1000 4750×3750
XSG-12 1200 1300?200 15-37 10000-20000 150-1300 5000×4000
XSG-14 1400 1500?400 30-55 14000-27000 200-1600 5250×4250
XSG-16 1600 1700?000 45-75 18700-36000 250-2000 5500×4500
Notes::1.The evaporated amount of moisture is calculated when the temperature of inlet is 200°C and the temperature of outlet is 80°C
2.Besides the models above mentioned, specification can also be made as request.
3.the datum above is for standards, it can be obviously reduced according to different power .



name of raw material Znic stearate Alumium hydroxide Znic carbonate pesticide TMTD DSDacid Iron oxide red tellurium dioxide Cuprous chloride White carbon black
inlet air temp. 150 180 150 120 140 150 200 180 200 280
initial water content 80 55 80 30 65 60 60 45 30 85
final water content 0.5 1.5 1.0 1 0.5 0.5 0.5 1.0 3 5
actual drying capacity 140-160 250-280 130-170 80-110 80-120 80-120 300-350 280-320 290-310 250-300

name of raw material promoting agentsZDC Oil ink Mancozeb Fast blue Citric acid calcium superfine
Calcium carbonate		 Mud treating-agent Sodium isocyanurate sioxide Dichloroisocyanurate
inlet air temp. 150 150 120 150 140 160 200 180 150
initial water content 60 45 30 55 40 70 75 25 30
final water content 0.5 2 1.0 1.0 1.0 1.5 5 0.2-2 1.0
actual drying capacity 80-110 350-380 120-150 160-180 300-350 430-470 290-310 80-120 90-150
