Specifications
Horizontal fluid bed dryer:ntinuous work
2.large capacity

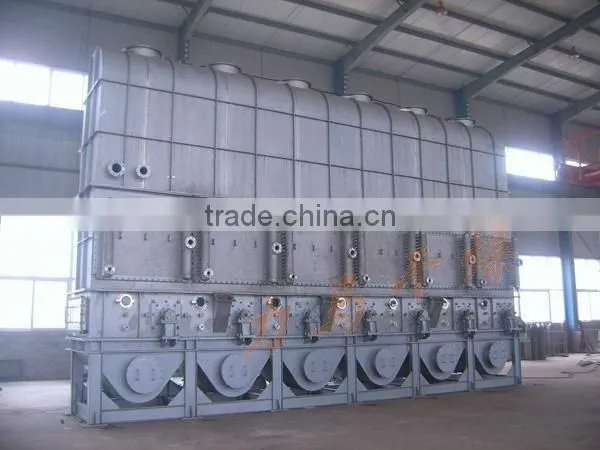

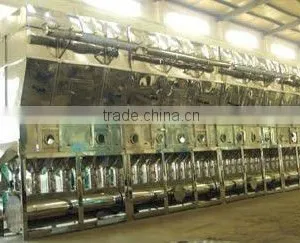

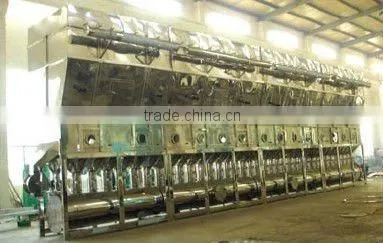

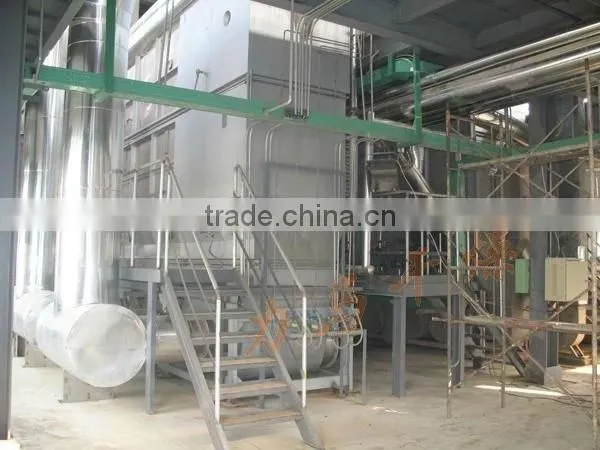

General description of XF Horizontal Fluid Bed Dryer:
IIt is suitable for drying powder and granule material such as raw material in pharmaceutical industry, granule material for pressing tablet, infusion of Chinese medicine; in chemical industry, drying and damp removing of citric acid, other powder and granule shape materials. It can also be suitable for food, drinking infusion, etc; in grain process, drying maize embryo, feedstuff and so on. In general the maximum size of material may reach 6 mm. The best is 0.5 ~ 3 mm
Type/ |
bed area |
drying capacity(kgH2O/h) |
power of fan(kw) |
inlet air temperature |
material temperature |
occupied area(m2) |
L×W×H(M) |
XF0.25-1 |
0.25 |
10-15 |
5.5 |
120-140 |
40-60 |
18 |
1×0.6×3.35 |
XF0.25-2 |
0.5 |
20-25 |
7.5 |
120-140 |
40-60 |
25 |
2×0.6×3.35 |
XF0.25-3 |
1.0 |
30-45 |
15 |
120-140 |
40-60 |
35 |
4×0.6×3.35 |
XF0.25-6 |
1.5 |
52-75 |
22 |
120-140 |
40-60 |
40 |
6×0.6×3.35 |
XF0.3-2 |
0.6 |
-30 |
7.5 |
120-140 |
40-60 |
25 |
2×0.7×3 |
XF0.3-4 |
1.2 |
42-60 |
18.5 |
120-140 |
40-60 |
38 |
4×0.7×3.4 |
XF0.3-6 |
1.8 |
63-90 |
30 |
120-140 |
40-60 |
45 |
6×0.7×3.4 |
XF0.3-8 |
2.4 |
84-120 |
37 |
120-140 |
40-60 |
56 |
8×0.7×3.4 |
XF0.3-10 |
3.0 |
105-150 |
18 |
120-140 |
40-60 |
70 |
10×0.7×3.4 |
XF0.4-4 |
1.6 |
56-80 |
30 |
120-140 |
40-60 |
18 |
4×1×3.58 |
XF0.4-6 |
2.4 |
84-120 |
37 |
120-140 |
40-60 |
56 |
6×1×3.58 |
XF0.4-8 |
3.2 |
112-160 |
48 |
120-140 |
40-60 |
74 |
8×1×3.58 |
XF0.4-10 |
4.0 |
140-200 |
70 |
120-140 |
40-60 |
82 |
10×1×3.58 |
XF0.4-12 |
4.8 |
168-240 |
70 |
120-140 |
40-60 |
96 |
12×1×3.58 |
