Specifications
1. Easy to operate2. GMP
3. High efficiency
In pharmaceutical industry, SZG Double Cone Vacuum Dryer is widely used for drying

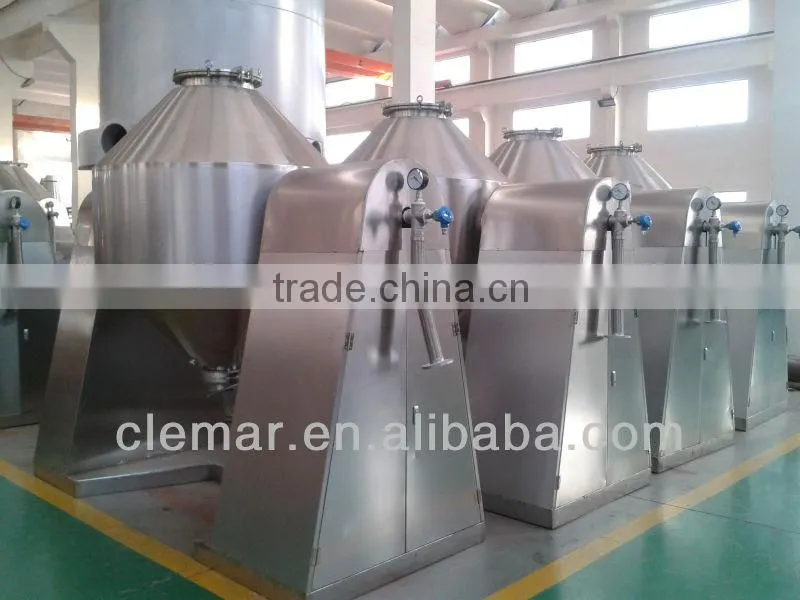

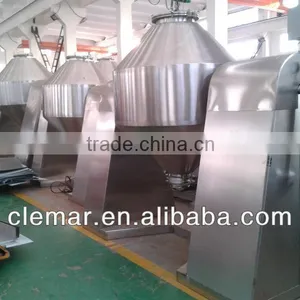

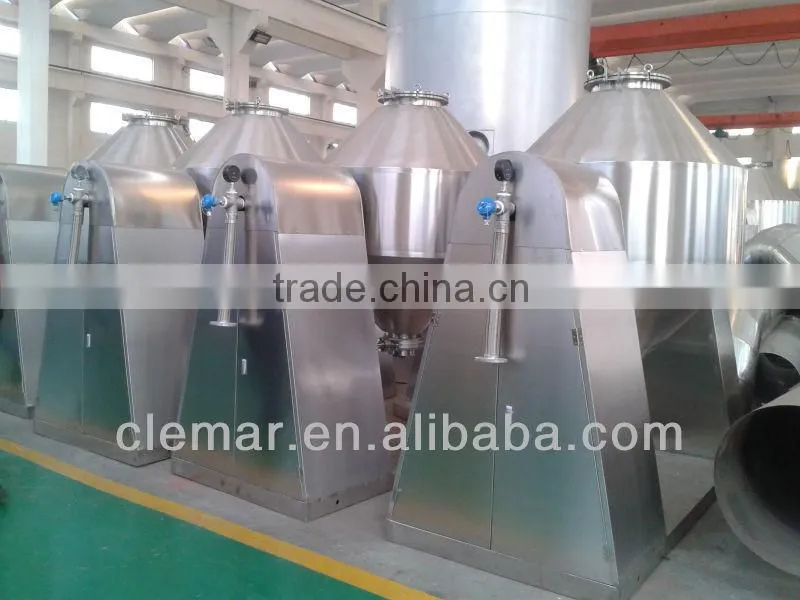

Description of SZG Double Cone Vacuum Dryer:
This machine can feed powder or granules into twin cone container through vacuum transmission or manual. With continuous rotation of container, material will make complex inpacting motion in the container and reach to uniform mixing. And heating source will be in the jacket, material will be dried by the heat transferred from jacket in the vacuum condition. In the vacuum condition, material can be dried in a low temperature and if you need to recover the organic solvent, you also can provide you a condensor to collect the organic solvent.
Features of SZG Double Cone Vacuum Dryer:
Energy saving, easy to operate, low labor strength, and high working efficiency.
Application of SZG Double Cone Vacuum Dryer:
1.
2. Material that cannot undertake high temperature
3. Materail that is easy to osidize
4. Material that do not permit to destruct
5. Material that need to recover organic solvent
6. Material with vigorous irritative and toxicity.
Technical parameters of SZG Double Cone Vacuum Dryer:
|
Model Name |
100 |
350 |
500 |
750 |
1000 |
1500 |
2000 |
3500 |
4500 |
5000 |
|
|
Volume of tank(L) |
100 |
350 |
500 |
750 |
1000 |
15000 |
2000 |
3500 |
4500 |
5000 |
|
|
Max loading volume(L) |
40 |
140 |
200 |
300 |
400 |
600 |
800 |
1400 |
1800 |
2000 |
|
|
Max loading weight (kg) |
20 |
70 |
100 |
150 |
200 |
300 |
400 |
700 |
900 |
100 |
|
|
Rotary speed (rpm) |
3~13 |
6 |
5 |
4 |
4 |
4 |
|||||
|
Powder of motor (k w) |
0.75 |
1.1 |
1.5 |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
|
|
Occupied area L×W (mm) |
2160×800 |
2160×800 |
2350×800 |
2560×1000 |
2860×1300 |
3060×1300 |
3260×1400 |
3760×1800 |
3960×200 |
4400×2500 |
|
|
Rotary height (mm) |
1750 |
2100 |
2250 |
2490 |
2800 |
2940 |
2990 |
3490 |
4100 |
4200 |
|
|
Designed pressure in the tank (MPa) |
-0.1~0.15 |
||||||||||
|
Designed pressure in the jacket (MPa) |
≤0.3 |
||||||||||
|
Weight (kg) |
800 |
1100 |
1200 |
1500 |
2800 |
3300 |
3600 |
6400 |
7500 |
8600 |
|
Remark: All the parameters are calculated as bulk density is 0.6g/cm3. If the bulk density of your material is higher than this please inform us. If you need pressure vessel certificate, please inform us. If material of inner tank need glass lining please inform us. If your material is inflammable and explosive materials please inform us.
