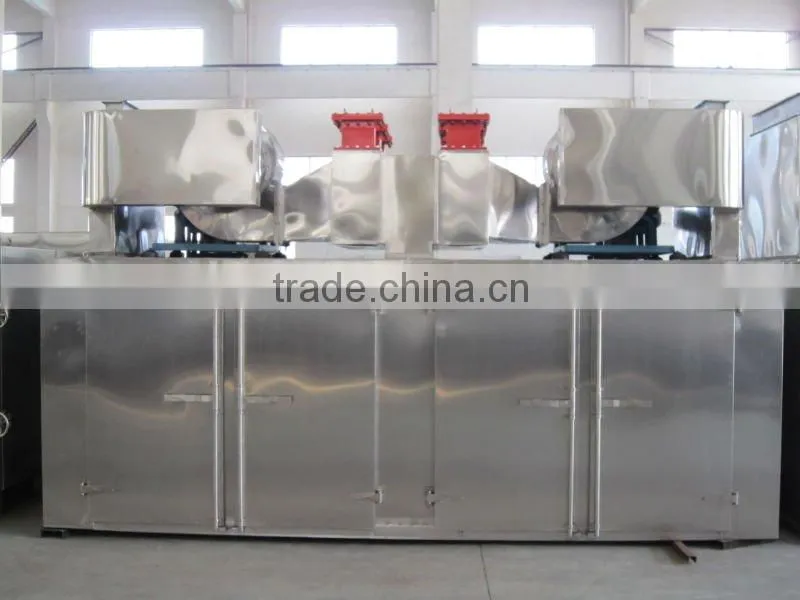

CT,CT-C Series Drying Oven

CT,CT-C Series Drying Oven thumbnail-1
CT,CT-C Series Drying Oven photo-1
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Drying Oven
Place of Origin:
Jiangsu, China
Brand Name:
Lemar
Contact Supplier Request Quote Chat Now
Changzhou Lemar Drying Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Drying Oven
Place of Origin Jiangsu, China
Brand Name Lemar
Model Number CT,CT-C

Specifications

drying oven
1,efficiency of drying oven is high
2,Low energy consumption
3,Comprehensive drying oven
4,Free freight

CT,CT-C Series Drying OvenGeneral description

Most of hot air is circled inside the drying  oven. The hot efficiency is high, The energy source can be saved. lt used enhanced ventilation and equips with adjustable air divider plate inside the  drying oven. Raw materials can be dried evenly, The hot sources can be steam, hot water, electricity of far infrared.

The machine has low noise and stable operation. The temperature can be controlled automatically. The installation and maintenance are very convenient. The applied fields are wide and can be suitable for all kinds of raw materials, lt is a comprehensive drier

 Features

1,The hot sources can be steam, electricity, far infrared, or system+electricity. Customers can select  one of  the heat ways in accordance with practical conditions.

2,Temperature of operation: 50-140°C for steam heating, Maximum temperature will be 150°C.

3,50-500°C for electricity or far infrared

4,There are automatic and computer control systems for customers selection

5 ,The normal pressure of system will be 0.2-0.8Mpa(2-8kg/cm2)

6 ,The equipped power of electric heater will be 15kw calculated with Model 1 and the preational power to used will be 5-8w/h

7,If have special requirement, please indicate in order

8,The price of non-standard oven shall be discussed additionally

9,If the operation temperature is more than 140°C or less than 60°C, please indicate in order.

10,The size of drying troll and tray is standardized. They can be exchanged each other.

11,The size of drying tray: 450×640×45(mm)

parameters
field standard number
model
drying capacity(kg/batch)
power(kw)
steam consumption(kg/h)
radiator area(m2)
fan volume
(m3/h)
temperature difference(°C)
equipped drying tray
size(mm)
equipped drying cart
RXH-4-B
CT-I
100
1.1
20
20
3400
±2
48
2430×1200×2375
2
RXH-27-B
CT-II
200
1.1
40
40
5200
±2
96
2430×2200×2433
4
RXH-41-B
CT-III
300
2.2
60
80
9800
±2
144
3430×2200×2620
6
RXH-54-B
CT-IV
400
2.2
80
100
9800
±2
192
4380×2200×2620
8
RXH-5-C
CT-C-O
25
0.45
5
5
3400
±2
16
1550×1000×2044
0
RXH-7-C
CT-C-IA
50
0.45
10
10
3450
±2
24
1400×1200×2000
1
RXH-14-C
CT-C-I
100
0.45
18
20
3450
±2
48
2300×1200×2000
2
RXH-27-C
CT-C-II
200
0.9
36
40
6900
±2
96
2300×2200×2000
4
RXH-41-C
CT-C-III
300
1.35
54
80
10350
±2
144
2300×3220×2000
6
RXH-54-C
CT-C-IV
400
1.8
72
100
13800
±2
192
4460×2200×2290
8
RXH-18-C
CT-C-IB
120
0.9
20
25
6900
±1
48
1460×2160×2250
2
RXH-41-C
CT-C-IS
special drying tray
2.2
60
100
6900
±2

1140×6160×3240
6
RXH-25-A
High efficiencyand high temperature far infrared sterilization oven
1200×1000×1600
1
