AMEISON 1700 - 2170MHz 10 DBi Directional 5km Outdoor Yagi Antenna

Name: AMEISON 1700 - 2170MHz 10 DBi Directional 5km Outdoor Yagi Antenna
Brand: AMEISON
SKU: 126223459
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

AMEISON

Model Number:

AMXY-1722-10

Shenzhen Ameison Communication Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name AMEISON

Model Number AMXY-1722-10

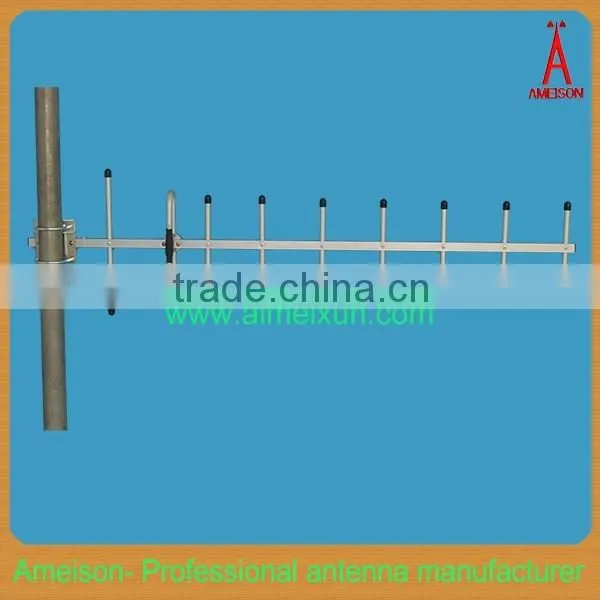

AMEISON 1700 - 2170MHz 10 dBi Directional 5km outdoor yagi antenna

AMXY-1722-10

Feature:

High gain

Aluminum alloy framework

Full day working

Optimized dimension

Application:

3G system

Point-to-point, point-to-multipoint system

Wireless bridging, client termination antenna

AMXY-1722-10 Electrical Specifications
Frequency range(MHz)	1700 - 2170
Bandwidth(MHz)	470
Gain(dBi)	10
Element	9
Half-power beam width(°)	H:35 V:30
Front-to-back ratio(dB)	≥16
VSWR	≤2.0
Input Impedance(Ω)	50
Polarization	Horizontal or Vertical
Maximum input power(W)	100
Lightning protection	DC Ground
Input connector type	N female or others
Mechanical Specifications
Dimensions(mm)	4108444
Cable length(m)	0.3
Antenna weight(kg)	0.25
Operating temperature(°c)	-40~60
Rated Wind Velocity(m/s)	60

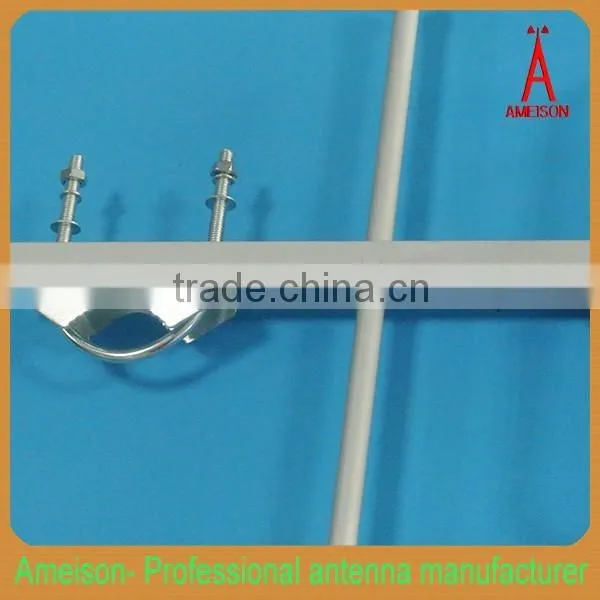

Clamp	U-shape
Mounting hardware(mm)	Φ35 ~ Φ50
