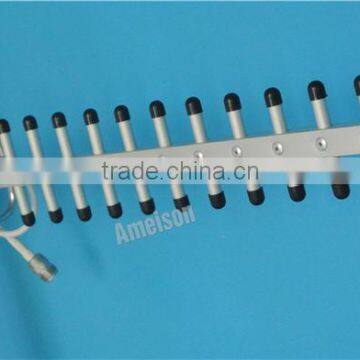

14dbi cordless phone antenna 3g antenna booster 1800-2170MHz Directional Anodized 3g yagi antenna
AMXY-1822-14
Feature:
High gain
Aluminum alloy framework
Full day working
Optimized dimension
Application:
3g system
Point-to-point, point-to-multipoint system
Wireless bridging, client termination antenna
|
AMXY-1822-14 Electrical Specifications | |
Frequency range(MHz) |
1800-2170 |
Bandwidth(MHz) |
370 |
Gain(dBi) |
14 |
Element |
13 |
Half-power beam width(°) |
H:35 V:30 |
Front-to-back ratio(dB) |
≥16 |
VSWR |
≤2.0 |
Input Impedance(Ω) |
50 |
Polarization |
Horizontal or Vertical |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |
Input connector type |
SMA-Male(Male PIN) or others |
Mechanical Specifications | |
Dimensions(mm) |
610*84*44 |
Cable length(m) |
10 |
Antenna weight(kg) |
0.9 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Clamp |
U-shape |
Mounting hardware(mm) |
Φ35~Φ50 |
1) All of our products do strictly 100% inspection and follow AQL standard before packing;
2) All of our products are well packed before shipping;
3) All of our prodects have one year quality warranty, free maintenance within warranty period!
Ameison promises all our issued products pictures on the internet are shot by our professional photographers, and these are real existence, NO duplication/ stolen figures/ infringement of intellectual property rights/ PS technical means etc.
The ownership of pictures and tests are owned by Ameison, if without permission and usurp unauthorized, Ameison will pursue legal liabilities according to laws and regulations and ask for economic compensation.
Due to there appears technical data is unreal even fake on the market, Ameison always sticks to the facts but not tell stories, all our technical specifications are real and tested by ourselves, welcome to request our related test reports and samples for compared and distinguishing the true from the false.
