Attention:
As Ameison have more than 600 models antennas in our factory, in order to offer the optimum models and reasonable prices, please kindly let us know the frequency range, gain, connector style and cable length(if available), and if here this showed model is your required, that can be the best thus we can respond directly.
And please let us know whether your antenna should pass 3rd intermodulation LOW PIM(IM3) standard OR common standard, that is there have different relevant prices between them.

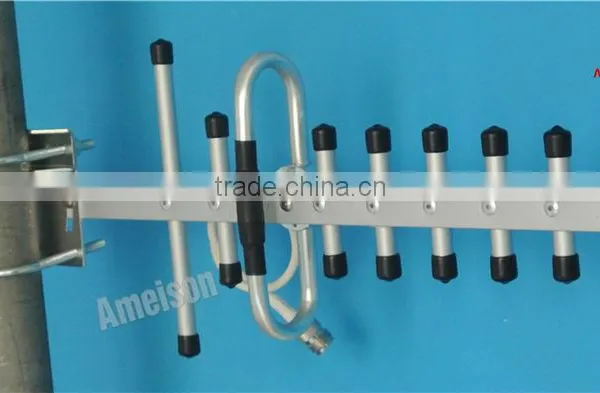

17dbi 890 - 960MHz Directional Yagi Antenna gsm signal booster cell phone antenna signal booster
AMXY-8090-17
Feature:
High gain
Aluminum alloy framework
Full day working
Optimized dimension
Mounting way can be Vertical or Horizontal

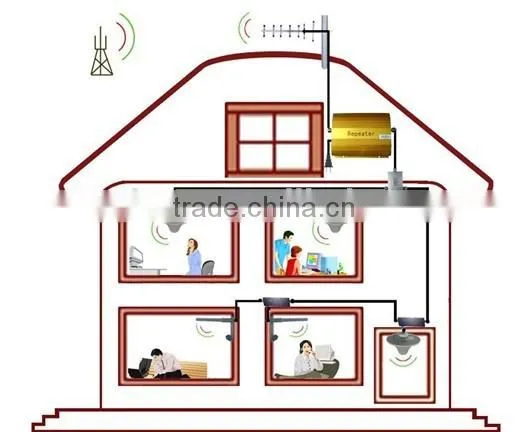

Application:
CDMA, GSM system
Point-to-point, point-to-multipoint system
Wireless bridging, client terminal antennas
|
AMXY-8090-17 Electrical Specifications | |
Frequency range(MHz) |
890-960 |
Bandwidth(MHz) |
70 |
Gain(dBi) |
17 |
Element |
16 |
Half-power beam width(°) |
H:32 V:30 |
Front-to-back ratio(dB) |
≥16 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Horizontal or Vertical |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |
Input connector type |
TNC Male or Requested |
Mechanical Specifications | |
Dimensions(mm) |
1160*190*54 |
Cable length(m) |
0.3 |
Antenna weight(kg) |
0.6 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Clamp |
U-shape |
Mounting hardware(mm) |
Φ35 ~ Φ50 |
