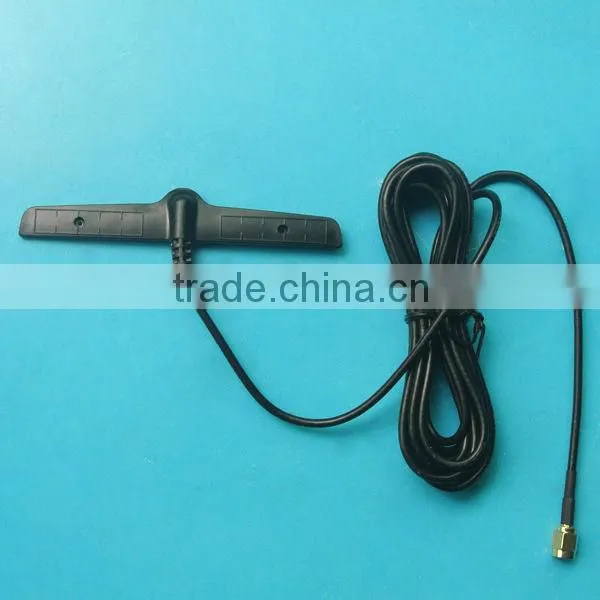

Help CenterAntenna Manufacturer 890-960/1710-1880MHz Multi-Band 2dBi Wave Microstrip Patch Long Range Car Radio Antenna
Related Products
-
Antenna Manufacturer 2 DBi Wave Blade Microstrip 433MHz Patch AntennaNegotiableMOQ: 2000 Pieces -
Antenna Manufacturer 890-960/1710-1880MHz Multi-Band 2dBi Wave Microstrip Patch Blade AntennaNegotiableMOQ: 2000 Pieces
-
Antenna Manufacturer 890-960/1710-1880MHz Multi-Band 2dBi Wave Blade Microstrip Patch Sticker AntennaNegotiableMOQ: 2000 Pieces
-
Antenna Manufacturer 890-960/1710-1880MHz Multi-Band 2dBi Wave Blade Microstrip Sticker Patch AntennaNegotiableMOQ: 2000 Pieces
-
Antenna Manufacturer 1920-2170MHz 3dBi Wave Blade Microstrip 3g Car Patch Strip AntennaNegotiableMOQ: 2000 Pieces
Specifications
Multi-Band GSM/PCS and Data antenna;Cellular and Data Band Applications;GSM/PCS/UMTS;900MHz ISM Band,1710-1880MHz.Antenna Manufacturer 890-960/1710-1880MHz Multi-Band 2dBi Wave Microstrip Patch long range car radio antenna
The Multi-Band design of these antennas eliminate the need to purchase different antennas for each frequency.
Model types include standard "Rubber Duck" style antennas and "Desk Top" style antennas with sticky mounts.
The antenna covers the frequencies 900MHz through 1800MHz.
900/1800MHz Patch antenna
AMXS-9018-2A
Feature:
High gain
Strong anti-interference ability
Full day working
Exquisite appearance
Optimized dimension
Application:
For vehicle alarm
For vehicle alarm Vehicle mobile communication device
Multi-Band GSM/PCS and Data antenna
900MHz ISM Band, 1800-2100MHz and 2200-2500MHz
Cellular and Data Band Applications
GSM/PCS/UMTS
|
AMXS-9018-2A Electrical Specifications | |
Frequency range(MHz) |
890-960/1710-1880 |
Bandwidth (MHz) |
70/170 |
Gain (dBi) |
2/2 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Vertical |
Maximum input power(W) |
50 |
Input connector type |
SMA Male or Requested |
Mechanical Specifications | |
Dimensions(mm) |
115×21×5 |
Antenna weight(g) |
40 |
Mounting way |
Stick |
Operating temperature(°c) |
-40~60 |
