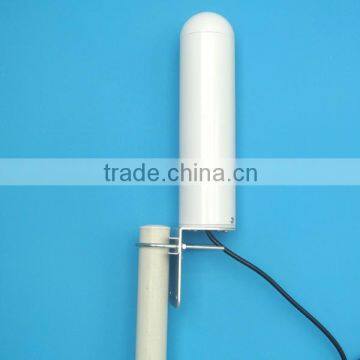

AMEISON 5 dBi 806 - 2500MHz Omnidirectional DAS IEEE802.15.4 2.4GHz 868MHz gsm wifi zigbee combination antenna
AMXF-8025-5
Feature:
Exquisite appearance
Good impact resistance, waterproofing and anticorrosion ability
Full day working
Optimized dimension
Low standing wave, strong anti-interference ability
Application:
CDMA/GSM/PCS/3G/WLAN system
Point-to-multipoint system
|
AMXF-8025-5 Electrical Specifications | |
Frequency range(MHz) |
806-960 / 1710-2500 |
Bandwidth(MHz) |
154 / 790 |
Gain(dBi) |
3 / 5 |
Half-power beam width(°) |
H:360 V:55 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Vertical, Linear |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |
Input connector type |
SMA Male or Requested |
Mechanical Specifications | |
Dimensions (mm) |
Φ60*230 |
Antenna weight(kg) |
0.6 |
Operating temperature(°c) |
-40~60 |
Radome material |
ABS |
Rated Wind Velocity(m/s) |
60 |
Radome color |
White or customized |

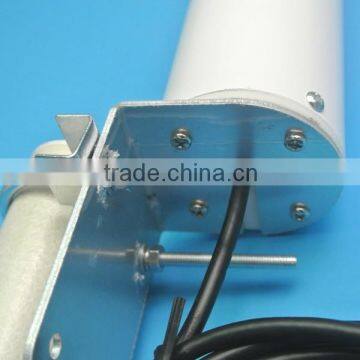

Mounting way |
Wall/ Pole-holding |
Waterproof Standard |
IP65/ IP67 |
Mounting hardware(mm) |
35 - 50 |
