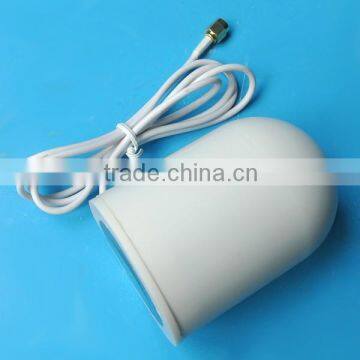

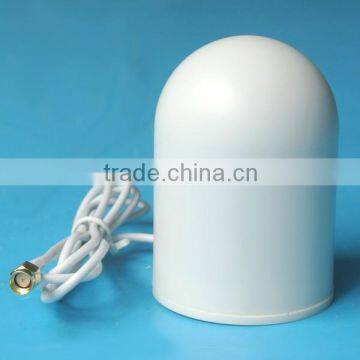

AMEISON 3 dBi 1710 - 2700 MHz Omnidirectional UMTS 3g antenna for huawei e173
AMXF-1727-3
Feature:
Exquisite appearance
Optimized dimension
Full day working
Wide frequency band, low standing wave, strong anti-interference ability
Application:
PCS/ 3G/ WLAN/ 4G/ LTE system
Vehicle mobile communication device
|
AMXF-1727-3 Electrical Specifications | |
Frequency range(MHz) |
1710~2700 |
Bandwidth(MHz) |
990 |
Gain(dBi) |
3 |
Half-power beam width(°) |
H:360 V:55 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Vertical, Linear |
Maximum input power(W) |
50 |
Lightning protection |
DC Ground |
Input connector type |
SMA Male or Requested |
Mechanical Specifications | |
Dimensions(mm) |
Φ60*85 |
Antenna weight(Kg) |
0.05 |
Operating temperature(°c) |
-40~60 |
Radome material |
ABS |
Radome color |
White or customized |
Waterproof Standard |
IP65/ IP67 |
Mounting hardware(mm) |
35 - 50 |
Mounting way |
Magnetic adsorption/ Wall/ Pole Mount |
