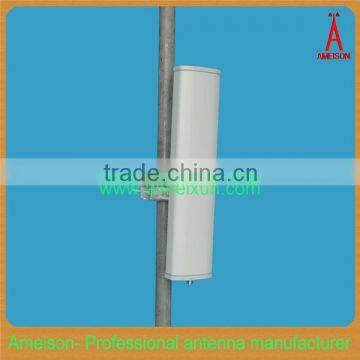

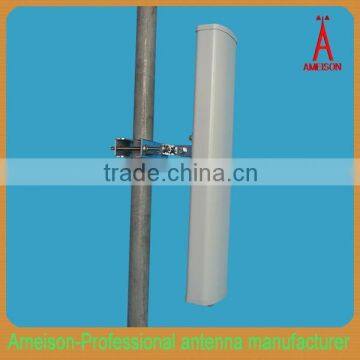

AMEISON 2400 - 2500MHz 13dBi Directional Base Station Sector Panel 2km wifi antenna
AMXP-2425V-D13L120
Feature:
High gain
Full day working
Optimized dimension
Vertical or horizontal
Application:
2.4 GHz WLAN system
Public wireless hot spot coverage
Wi-Fi system
AMXP-2425V-D13L120 Electrical Specifications | |
Frequency range(MHz) | 2400~2500 |
Polarization | Vertical |
Gain(dBi) | 13 |
half-power beam width(°) | H:120 V:14 |
Front-to-back ratio(dB) | ≥18 |
Input Impedance(Ω) | 50 |
VSWR | ≤1.5 |
Sidelobe suppression for first sidelobe above horizon | 15 dB |
Maximum input power(W) | 200 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N Female |
Dimensions-mm (Height/Width/Depth) | 500*114*54 |
Packing size(mm) | 530*130*110 |
Antenna weight (kg) | 4 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt(°) | 0~10 |
Operating temperature:(°c) | -40~60 |
Rated Wind Velocity(m/s) | 60 |
Waterproof Standard | IP67 |
Mounting way | pole-holding |
Mounting hardware(mm) | 35 ~ 75 |
