AMEISON 2400 - 2500 MHz Directional Base Station Sector 2.4 GHz 16dbi Wifi Panel Antenna
- Shenzhen or HongKong
- T/T Money Gram Credit Card PayPal
You May Like
-
AMEISON 698 - 960 MHz 14 DBi 120 Degree Directional Base Station Repeater Sector Panel Gsm Repeater Outdoor Antenna
-
AMEISON 4900 - 5850 MHz 16 DBi Dual-polarized 120 Degree Directional Base Station Repeater Panel Sector Outdoor Antenna
-
AMEISON 698 - 2700 MHz 17 DBi Dual Polarized 65 Degree Base Station Repeater Sector Panel DAS Outdoor Directional Panel Antenna
-
AMEISON 806 - 960 MHz Directional Base Station Repeater Sector Panel Vertical Polarized GSM 90 Degree Antenna
-
AMEISON 806 - 960 MHz Directional Base Station Repeater Panel 18 DBi Slant Linear Polarized Gsm Sector Antenna
-
AMEISON 2300-2700MHz Directional Base Station Sector Panel Vertical Horizontal Polarized 19dBi 90 Degree Wifi Antenna 15km
Product Details
| Place of Origin | Guangdong, China | Brand Name | AMEISON | |
| Model Number | AMXP-2425VH-D16L120 |
bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Product Description
Important Tips: There have more than 600 models antennas in our factory, In order to offer the optimum models and reasonable prices, please kindly let us know the frequency range, gain, connector style and cable length(if available), and if here this showed model is your required, that can be the best thus we can respond directly.

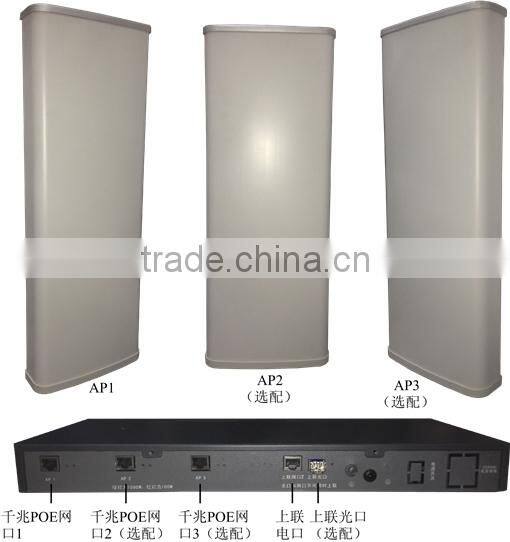

AMEISON 2400 - 2500 MHz Directional Base Station Sector 2.4 GHz 16dbi wifi panel antenna
AMXP-2425VH-D16L120
Feature:
High gain
Full day working
Optimized dimension
Dual polarization
Application:
2.4 GHz WLAN system
Public wireless hot spot coverage
Wi-Fi system
AMXP-2425VH-D16L120 Electrical Specifications | |
Frequency range(MHz) | 2400~2500 |
Polarization | Vertical and Horizontal |
Gain(dBi) | 2×16 |
half-power beam width(°) | H:120 V:7 |
Front-to-back ratio(dB) | ≥18 |
Input Impedance(Ω) | 50 |
VSWR | ≤1.5 |
Isolation between ports | ≥28dB |
Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º |
Sidelobe suppression for first sidelobe above horizon | 15 dB |
Maximum input power(W) | 200 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | 2-N Female |
Dimensions-mm (Height/Width/Depth) | 1200*114*54 |
Packing size(mm) | 1280*155*145 |
Antenna weight (kg) | 6 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt(°) | 0~10 |
Operating temperature(°c) | -40~60 |
Rated Wind Velocity(m/s) | 60 |
Waterproof Standard | IP67 |
Mounting way | pole-holding |
Mounting hardware(mm) | 35 ~ 75 |
