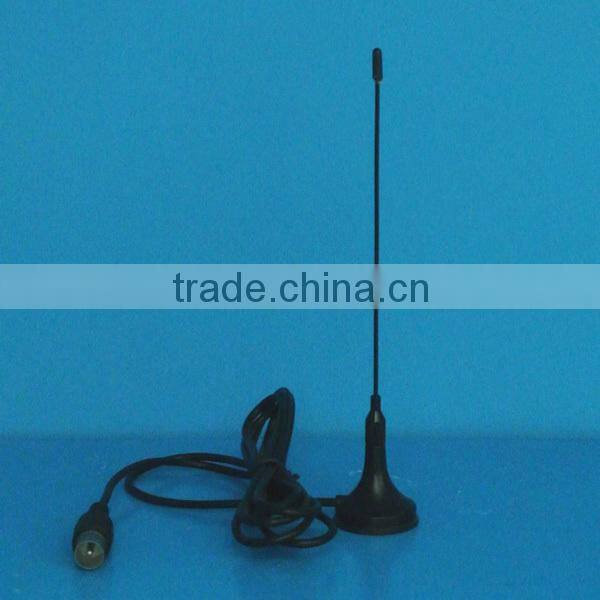

DVB-T Magnetic base antenna
AMXM-DVB-3A
Feature:
Low VSWR,strong anti-interference ability
Full day working
Exquisite appearance
Optimized dimension
Application:
Vehicle mobile TV
Automotive mobile communications equipment
|
AMXM-DVB-3A Electrical Specifications | |
Frequency range(MHz) |
174-230/470-862 |
Bandwidth (MHz) |
10 |
Gain (dBi) |
3 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Vertical |
Maximum input power(W) |
50 |
Input connector type |
IEC Male or Requested |
Mechanical Specifications | |
Dimensions(mm) |
30×160 |
Antenna weight(g) |
35 |
Mounting way |
Magnetic adsorption |
Operating temperature(°c) |
-40~60 |
Ameison Antennas have been working in worldwide for over 6 tears. Our antennas cover GSM, CDMA, 3G, 4G, LTE, Wifi, Wimax, Wlan, UHF TV, VHF TV, RFID, Cluster, Marine and so on. Now we have a lots of MIMO and DAS models are hot selling.
