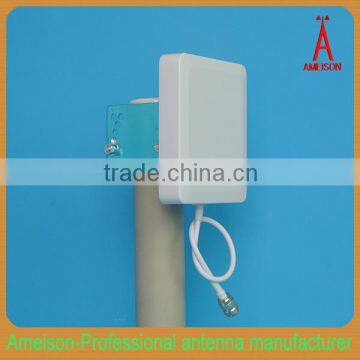

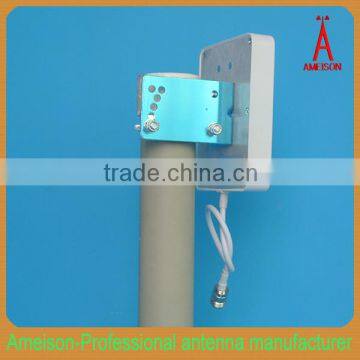

2400 - 2483 MHz Directional Wall Mount Flat Patch Panel Antenna
AMXW-2400-10A
Feature:
High gain, strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
2.4 GHZ WLAN system 2.4 GHZ ISM frequency band
Wi-Fi system
|
AMXW-2400-10A Electrical Specifications | |
Frequency range(MHz) |
2400-2483 |
Bandwidth(MHz) |
83 |
Gain(dBi) |
10 |
Half-power beam width(°) |
H:50 V:50 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Vertical |
Maximum input power(W) |
50 |
Lightning protection |
DC Ground |
Input connector type |
RP-SMA Male or Requested |
Mechanical Specifications | |
Dimensions-mm (Height/Width/Depth) |
140*120*25 |
Antenna weight(kg) |
0.3 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Radome material |
ABS |
Radome color |
white |
Waterproof Standard |
IP54/ IP65/ IP67 |
Mounting way |
wall-hanging or pole-holding |
Mounting hardware(mm) |
35~50 |
