Specifications

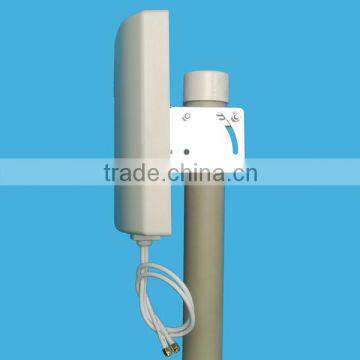

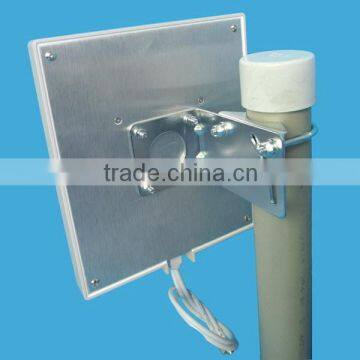

This high performance directional flat patch antenna is suitable for indoor and outdoor applications in the 3G / WLAN ISM band.Antenna Manufacturer Outdoor/Indoor 1.8-2.7GHz 9dBi Broadband Dual Polarized Wall Mount Flat Panel indoor MIMO Antenna
Dual Polarized Design
This antenna features an unique array of cross dipole elements.
The antenna is fed via two N-Female ports, one for vertically polarized and one for horizontally polarized signals.
These feature makes these antennas ideal for polarization diversity systems.
Ameison Flat Panel Antenna
Factory price
Superior performance
Mounting kits included
Waterproof heavy-duty ABS redome
1800-2700MHz Directional Wall Mount Antenna
AMXW-1827VH-9
Feature:
strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
3G / 4G/LTE/ WLAN system
Wireless communication and data transmission system
|
AMXW-1827VH-9 Electrical Specifications | |
Frequency range(MHz) |
1800-2700 |
Bandwidth(MHz) |
900 |
Gain(dBi) |
9 |
Half-power beam width(°) |
H:70 V:55 |
VSWR |
≤1.6 |
Input Impedance(Ω) |
50 |
Polarization |
Vertical and Horizontal |
Maximum input power(W) |
50 |
Lightning protection |
DC Ground |
Input connector type |
2×SMA Male or Requested |
Mechanical Specifications | |
Dimensions-mm(Height/Width/Depth) |
225*195*47 |
Antenna weight(kg) |
0.5 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Radome material |
ABS |
Radome color |
white |
Mounting way |
wall-hanging or pole-holding |
Mounting hardware(mm) |
35-50 |
