Specifications
This very compact 3GHz flat patch antennas provide very broad coverage suitable for both indoor and outdoor applications.Antenna Manufacturer 1920-2170MHz 14dBi Directional Wall Mount Patch Flat Panel Indoor 3g Antenna

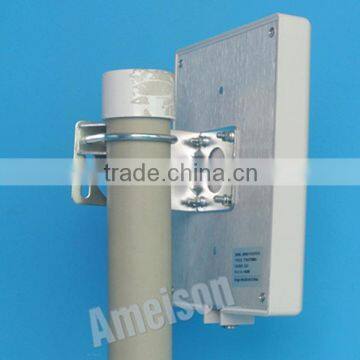

1920-2170MHz Directional Wall Mount Antenna
AMXW-1922-14A
Feature:
High gain
Strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
3G system
Wireless communication and data transmission system
|
AMXW-1922-14A Electrical Specifications | |
Frequency range(MHz) |
1920-2170 |
Bandwidth(MHz) |
250 |
Gain(dBi) |
14 |
Half-power beam width(°) |
H:30 V:30 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Vertical |
Maximum input power(W) |
50 |
Lightning protection |
DC Ground |

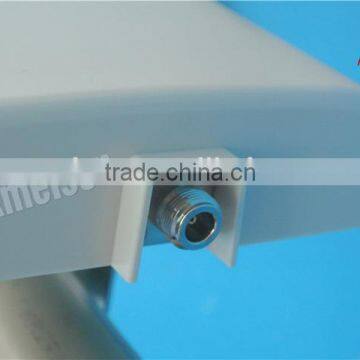

Input connector type |
N Male or Requested |
Mechanical Specifications | |
Dimensions-mm (Height/Width/Depth) |
225*195*47 |
Antenna weight(kg) |
0.45 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Radome material |
ABS |
Radome color |
white |
Mounting hardware(mm) |
35-50 |
