Specifications
These antennas are well suited for the following applications: SCADA, 900 MHz ISM/GSM, RFID and 900 MHz Cellular deployments.698-960MHz GSM Directional Panel Antenna
It is a professional quality "cell site" antenna designed primarily for service providers in the 900MHz band.
It is ideally suited for 900MHz ISM and GSM bands. Typical applications include 900MHz Wireless LAN, SCADA, Wireless Video Links and 900MHz Cellular.
Rugged and Weatherproof

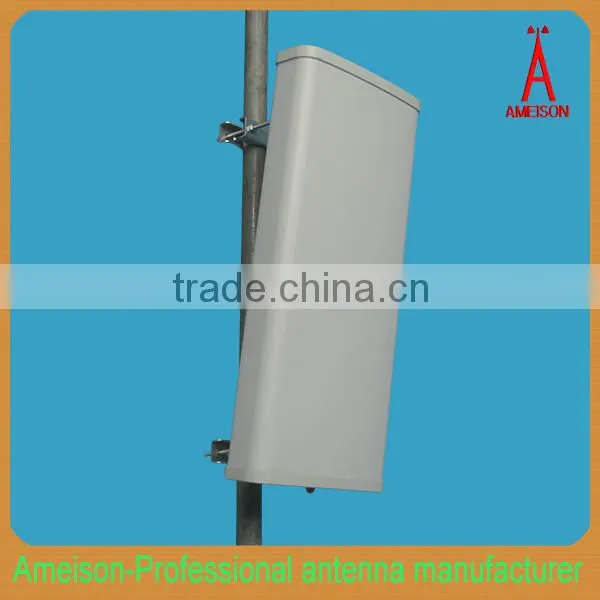

This antenna features a heavy-duty plastic radome for all-weather operation. The mounting system adjusts from 0 to 16 degrees down tilt.
Ideal for 900 MHz Wireless Service Provider "Cell" Sites
This sector antenna is an ideal choice for Wireless Service Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle. The 90° beam-width is ideal for covering large service areas.
AMXP-7090V-D15L90
Feature:
High gain
Full day working
Optimized dimension
Polarization:Vertical or horizontal
Application:
900 MHz ISM/LTE/ CDMA/ GSM system
SCADA/ RFID/ ZigBee
Wireless communication and data transmission system
|
AMXP-7090V-D15L90 Electrical Specifications | |
Frequency rang(MHz) |
698~960 |
Polarization |
Vertical |
Gain(dBi) |
15 |
Half-power beam width(°) |
H:90 V:10 |
Front-to-back ratio(dB) |
≥23 |
Input Impedance(Ω) |
50 |
VSWR |
≤1.5 |
Sidelobe suppression for first sidelobe above horizon |
15 dB |
Maximum input power(W) |
400 |
Lightning protection |
DC Ground |
Mechanical Specifications | |
Input connector type |
N Female |
Dimensions-mm (Height/Width/Depth) |
2000*280*125 |
Packing size(mm) |
2050*320*210 |
Antenna weight (kg) |
13.5 |
Radome material |
UPVC |
Radome color |
Gray |
Mechanical tilt(°) |
0~10 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Mounting hardware(mm) |
35~90 |
