Specifications
VHF UHF tv yagi antennaGain is 12dBi
Antenna has 9 elements
Material is aluminum alloy framework
Ameison VHF UHF tv yagi antenna
Model No.: AMXY-5575-12
Features:
1. High gain
2. Aluminum alloy framework
3. Full day working
4. Optimized dimension
5. Mounting way can be Vertical or Horizontal
Applications:
1. 550-750MHz system
2. Point-to-point,point-to-multipoint system
3. Wireless bridging,client terminal antennas
|
AMXY-5575-12 Electrical Specifications | |
Frequency range(MHz) |
550-750 |
Bandwidth(MHz) |
200 |
Gain(dBi) |
12 |
Element |
9 |
Half-power beam width(°) |
H:38 V:32 |
Front-to-back ratio(dB) |
≥16 |
VSWR |
≤2.0 |
Input Impedance(Ω) |
50 |
Polarization |
Horizontal |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |
Input connector type |
F female or Requested |
Mechanical Specifications | |
Dimensions(mm) |
1000*265*54 |
Cable length(m) |
0.3 |
Antenna weight(kg) |
0.51 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |

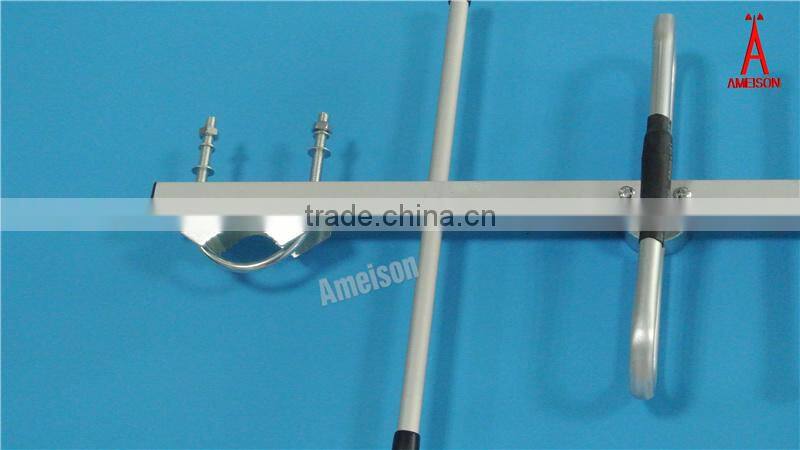

Clamp |
U-shape |
Mounting hardware(mm) |
Φ35~Φ50 |

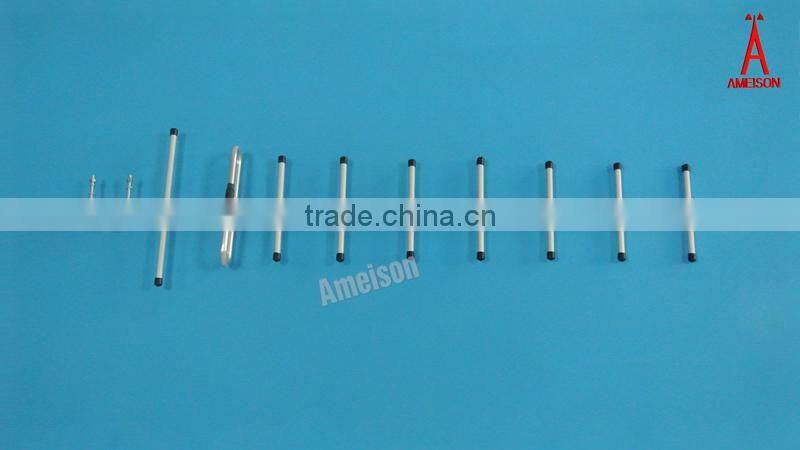

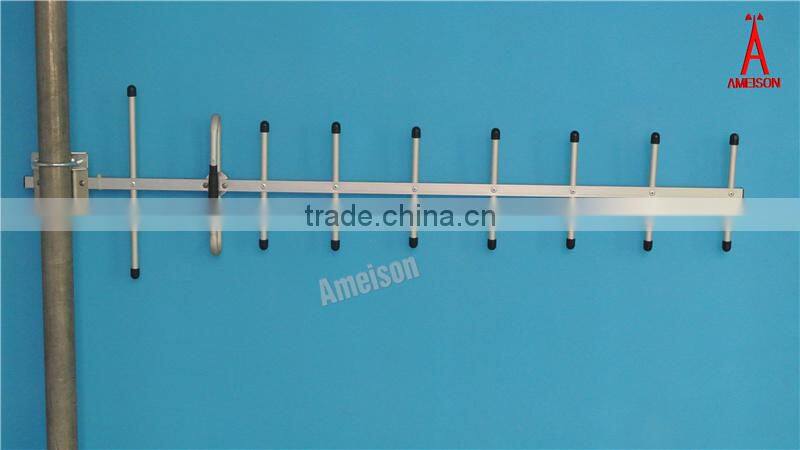

Product Picture
Shenzhen Ameison Communication Equipment Co., Ltd. was established in 2009. which is one of the leading professional antenna manufacturer in China and an integrated new-rising high-tech company in developing, designing and manufacturing antennas and relative products! Ameison has successfully entered China Unicom public phone system, China mobile wireless business phone system, China telecom 3G system and our marketing occupancy has grown step by step.
Our main products: LTE antenna, WIMAX antenna, WIFI antenna, 3G antenna, DECT antenna, WLAN antenna,CDMA antenna, CDMA2000 antenna,WCDMA antenna,TD-SCDMA antenna,GPRS antenna,CMMB antenna,DMB antenna,DVB antenna,GSM antenna,FM antenna and PHS antenna. etc..
The purpose of the company sales: Quality first, Price reasonable.
We sincerely welcome the customers all over the world to visit our factories and cooperate with us!
OEM/ODM ORDERS ARE WELCOMED BY US.
