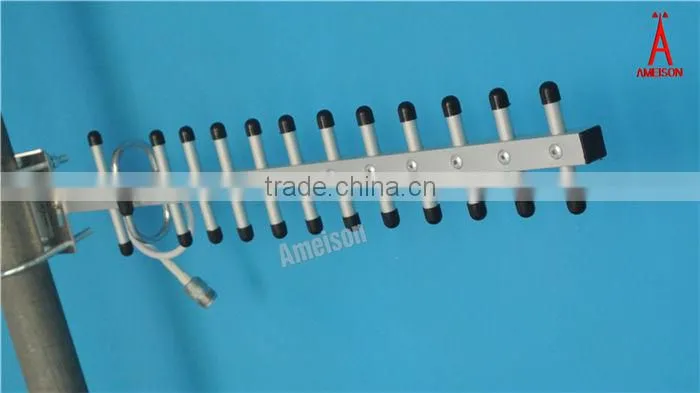

Ameison Wireless 2.4 GHz 13 dBi Aluminium High Performance yagi uda antenna wifi high range
Model No.: AMXY-2400-13
Superior Performance
The Ameison AMXY-2400-13 WiFi Yagi Antenna features high gain and a 37° beam-width with a 1m coax lead
terminated with a PRA-SMA male connector. It is ideally suited for directional and multipoint IEEE 802.11b,
802.11g and 802.11n wireless LANs, public wireless hotspot applications and other systems operating in the
2.4GHz ISM band.
Aluminium Construction
This antenna features a heavy-duty aluminium boom and solid aluminium elements which ensures superior durability
and long performance life in all weather conditions. The AMXY-2400-13 antenna is supplied with a tilt and swivel
mast mount kit. This mounts provides 0-20 degree up or down tilt in 10 degree increments.
Specifications
Frequency Range: 2400-2483 MHz
Gain: 13 dBi
Polarization: Vertical or Horizontal
Vertical Plane Half Power Beamwidth: 37°
Horizontal Plane Half Power Beamwidth: 40°
Front to Back Ratio:>16 dB
VSWR: < 1.5: 1
Impedance: 50 Ω
Maxium Input Power: 100 W
Connector: PR-SMA male or According requests
Cable Length: 1 Meter
Dimension(L/W/D): 460*70*44 mm
Racome material: Solid Aluminium Construction
Lightning Protection: DC Ground
Weight (Approx.) including mounting bracket: 0.5 KG

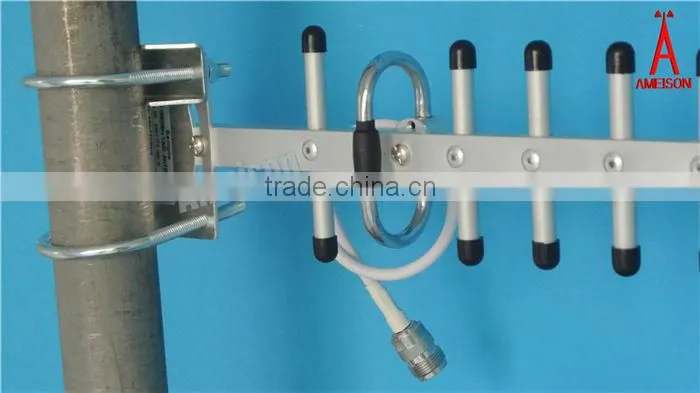

Mounting Bracket: U Type clamp with bracket suitable for 35-50 MM diameter pole
Features:
- Aluminium construction
- 30° beam-width
- DC Short lightning protection
- Includes tilt and swivel mast mount
- 1m coax lead terminated with a PR-SMA male connector
Applications:
- 2.4 GHz ISM Band
- IEEE 802.11b, 802.11g Wireless LAN
- IEEE 802.11n (Pre-N, Draft-N, MIMO) Applications
- Public Wireless Hotspot
- WiFi & Wireless Video Systems
What is a Yagi antenna ?
A Yagi Antenna,or Yagi-Uda antenna, is named for its inventors Shintaro Uda and Hidetsugu Yagi of Japan.
A Yagi antenna is a directional type antenna with a single dipole, a reflector, and multiple elements. Yagi
antennas can be used for point to point or point to multi-point WiFi applications. Ameison offers Yagi
antennas and Log Periodic Yagi antennas. Additionally, our Yagi-Uda antennas support frequencies from
200 MHz to 2.7 GHz. Custom Yagi antennas are also available.
Ameison promises all our issued products pictures on the internet are shot by our professional photographers, and these are real existence, NO duplication/ stolen figures/ infringement of intellectual property rights/ PS technical means etc.
The ownership of pictures and tests are owned by Ameison, if without permission and usurp unauthorized, Ameison will pursue legal liabilities according to laws and regulations and ask for economic compensation.
Due to there appears technical data is unreal even fake on the market, Ameison always sticks to the facts but not tell stories, all our technical specifications are real and tested by ourselves, welcome to request our related test reports and samples for compared and distinguishing the true from the false.
Genuine Quality Assured
It’s Your Excellent Choice High Quality Products.
Ameison is TOP3 professional communication and wireless antennas industry manufacturer enterprise in Shenzhen, we hope to establish long-term business relationship with you.
More items want to know, please visit our official company website to request the catalog, we warmly welcome you to schedule a visit to our factory anytime.
