Home > Electrical & Electronics > Antenna > Communication Antenna > Ameison Outdoor 800 MHz- 2500 MHz 11 DBi Log Periodic Broadband Yagi Antenna

Ameison Outdoor 800 MHz- 2500 MHz 11 DBi Log Periodic Broadband Yagi Antenna

Name: Ameison Outdoor 800 MHz- 2500 MHz 11 DBi Log Periodic Broadband Yagi Antenna
Brand: Ameison
SKU: 126215843
Availability: InStock

Ameison Outdoor 800 MHz- 2500 MHz 11 DBi Log Periodic Broadband Yagi Antenna thumbnail-1

Ameison Outdoor 800 MHz- 2500 MHz 11 DBi Log Periodic Broadband Yagi Antenna photo-1

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Ameison

Model Number:

AMXL-8025-11

Contact Supplier Request Quote Chat Now

Shenzhen Ameison Communication Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Ameison

Model Number AMXL-8025-11

Specifications

Ameison Log Periodic Antenna
Factory price
Superior performance
Mounting kits included
Waterproof heavy-duty ABS redome

Ameison Outdoor 806-2500 MHz Log Periodic DAS antenna

Model No.: AMXL-8025-11

Superior Performance

The Ameison AMXL-8025-11 is a high performance wide band log periodic antenna designed to operate continuously from 806 MHz to 2500 MHz. This Wideband design eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications where wide coverage is desired.

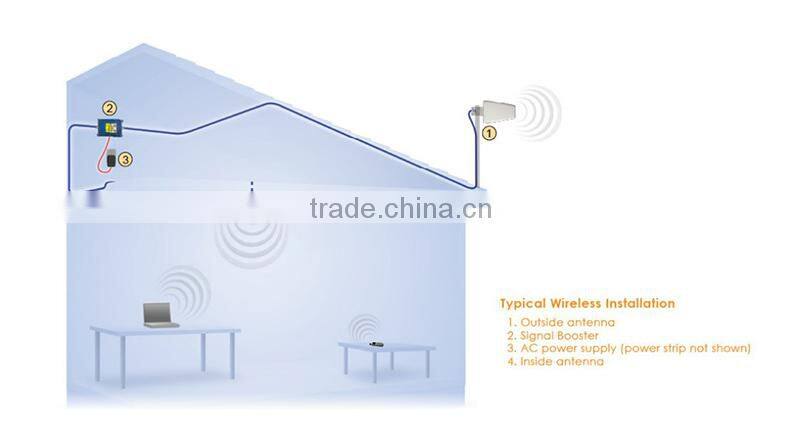

The AMXL-8025-11 is ideal for Distributed Antenna Systems, DAS. ADAS system is used to distribute Cellular and WiFi signals throughout a building or area. It is also suited for directional and multipoint IEEE 802.11b/g/n ireless LANs, public wireless hotspot applications and other systems operating in the 2.4GHz ISM band. The broadband characteristics of the antenna enable it to operate over a very wide frequency range. This antenna features 11 dBi of gain and a 55 degree vertical beam width.

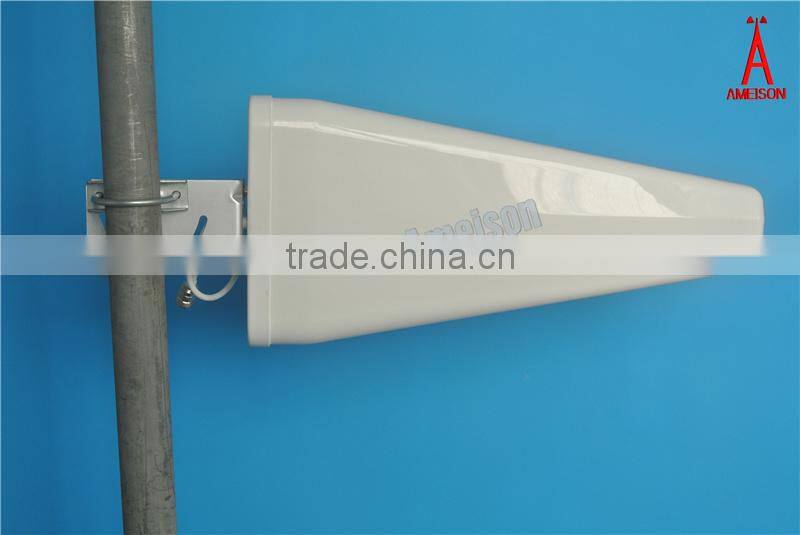

The internal components of this antenna are enclosed within a UV-stable white ABS radome for all-weather operation. It is supplied with a tilt and swivel mast mount kit.

Features:

800 - 2500 MHz Continuous Coverage
Broadband, low VSWR
Sealed Radome for all weather operation
800/900/1900MHz Cellular applications
Supplied with tilt and swivel mast bracket

Applications:

GSM/CDMA/PCS/3G/4G/LTE/WiMAX/WLAN
Distributed Antenna Systems, DAS
IEEE 802.11b/g/n Access Points and Routers
WiFi and Wireless video systems

AMXL-8025-11 Electrical Specifications
Frequency range(MHz)	806~960/1710~2500
Bandwidth(MHz)	154/790
Gain(dBi)	10/11
Half-power beam width(°)	H:65/50 V:55/40
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	Vertical
Maximum input power(W)	50
Lightning protection	DC Ground
Input connector type	N Female
Mechanical Specifications
Dimensions (mm)	44521065
Antenna weight(kg)	0.91
Operating temperature(°c)	-40~60
Rated Wind Velocity(m/s)	60
Radome material	ABS
Radome color	white
Mounting hardware(mm)	Φ35-Φ50
