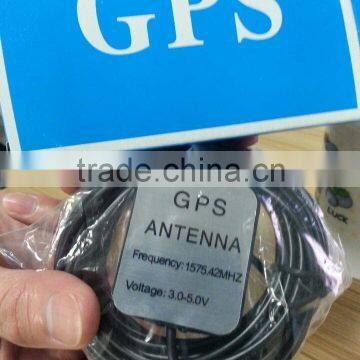

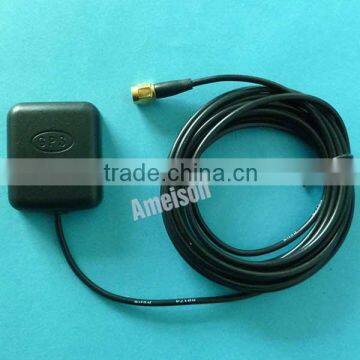

Antenna SMA Female Connector Magnetic Mount RG174 3M cable 5dBi glonass car tv gps antenna
AMXGPS-1575.42-28B
Specifications
Supporting both GPS and GLONASS frequencies, this antenna is suitable for telematics and M2M applications.
This car tv gps antenna is a cost-effective GPS/GLONASS active magnetic patch antenna. Supporting both GPS and GLONASS frequencies, this antenna is suitable for telematics and M2M applications.
GPS L1/GLONASS antenna is a high performance antenna with a wide voltage range, ideally suited to telematics platforms for use in vehicle-mounted applications. With a wideband patch, this antenna was designed to operate at GPS L1 as well as GLONASS L1 frequencies.
Using internal magnets or screw mount holes, the antenna can be installed almost anywhere on a vehicle allowing for greater flexibility. The antenna features 5 dB gain low noise amplifier and a SAW filter. With 4.5 to 5.5 volt operation, the antenna can be used with the vast majority of GPS L1 and GLONASS systems available.
Features:
Good Sensibility
Accessible to various satellites
Strong singal,accurate positioning.
Ferromagnetic, strong anti-waterproofing ability
Applications:
Vehicle Navigation
Security and tracking system
Global Satellite Positioning System
AMXGPS-1575.42-28B | |
Electric Specification | |
Frequency rang-MHz |
1575.42±5 |
Bandwidth -MHz |
10 |
Gain -dBi |
5±0.5 |
LNA-dBi |
28 |
VSWR |
≤1.5 |
Input Impedance-Ω |
50 |
Polarization |
RHCP |
Voltage |
3 /5 |
Electric Current -mA |
≤20 |
Connector model |
SMA female or others |
Mechanical Specification | |
Size -mm |
46*38*13 |
Cable length-m |
3 |
Antenna weight-kg |
0.8 |
Working Temperature -°c |
-30~60 |
Radome color |
Black |
Welcome to Ameison Communication Equipment Co.,Ltd, we are leading antenna manufacturer in China.
Ameison Antennas have been working in worldwide for over 6 tears. Our antennas cover GSM, CDMA, 3G, 4G, LTE, Wifi, Wimax, Wlan, UHF TV, VHF TV, RFID, Cluster, Marine and so on. Now we have a lots of MIMO and DAS models are hot selling.
OEM is welcome. Please contact us when you need any antennas!
Ameison Antennas Factory delivers high quality antennas and solutions for the global defence, security and communications markets.
We manufacture low cost antennas for wireless networking and cellular end-user antenna applications, RFID and Defence.
your choice + our products > win-win situation
We are a manufacturer, NOT trading company.
Ameison Antennas Factory is one of leading professional antenna manufacturers and only one has our own Antennas Far Field Automatic Measurement System in Shenzhen.
Your Reliable Antennas Partner in China
Tel:+86-755-8991 4346(20 lines)
Fax:+86-755-8991 4746
Factory Address: 33-2#, Fajiafu Industrial Zone, Shantangwei, Pingdi, Longgang, Shenzhen, 518117, P.R.China.
China Plant: Shenzhen Ameison Communication Equipment Co.,Ltd.
Hong Kong Head Office: FOXTENNA COMMUNICATION LIMITED.
For question most asked vist our company Official Website:
1)All of our product will have been strictly test before packing
2)All of our product will be well packed before shipping
3)All of our prodect will have one year quality warranty, free maintenance with warranty period!
