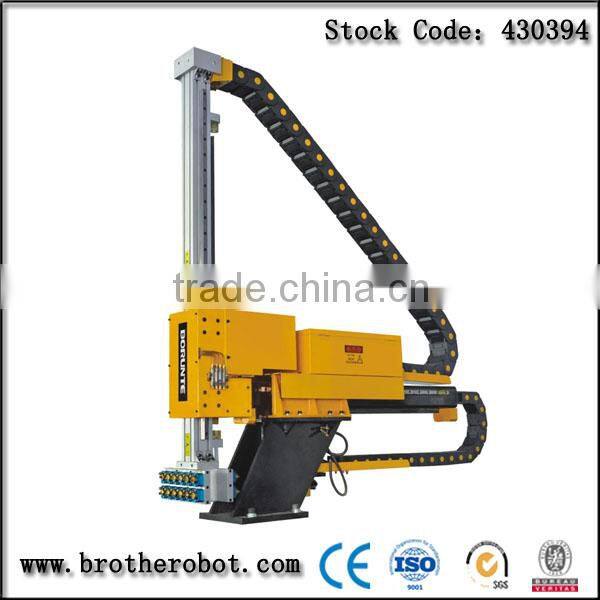

Help CenterDie Casting Machine Hot Chamber Automatic Sprayer
Related Products
-
Dongguan Servo Driven Sprayer for Die Casting MachineUS$ 14,600 - 14,800MOQ: 1 Set -
Automatic Sprayer For Die Casting MachineUS$ 17,000 - 19,000MOQ: 1 Set
-
Aluminum Servo Sprayer For Die Casting MachineUS$ 17,000 - 19,000MOQ: 1 Set
-
Intelligent Servo Sprayer For Die Casting MachineUS$ 17,000 - 19,000MOQ: 1 Set
-
Servo Driven Sprayer For Die Casting MachineUS$ 16,666 - 19,666MOQ: 1 Set
Industrial Die Casting Machine Automatic Sprayer Equipment
Servo Driven Sprayer Product Features
1.Vertical transverse type with two-axis structure uses aluminum parts to make the whole weight greatly reduced, so that the action is more compact and efficient.
2.High-precision linear guide, it is suitable for long-term operation in harsh environments, with a high level of protection in robot industry.
3.Using Japanese Panasonic servo motor and imported precision reducer. It is high-speed, precision and protection grade taller than IP67.
4.Using an independent atomizing nozzle, spray with excellent results, each volume can be individually adjustable spray nozzles. Nozzle angle can be adjusted, fixed spray and spray continuously while moving, you can choose to use the pre-spray and spray.
5.Using Japanese Mitsubishi Computer with stable, reliable and long life features.
6.Can be done continuously move back and forth between the spray and blow in X, Y axis arbitrarily points.
7.Using hand-held terminal, set up and operate in one set, through touch man-machine interface can be edit the spraying program freely, fixed spray, floating spray or topical focus on spraying for mold.
8.Replacement of the mold only needs to modify the program without replacing the nozzle spray, so the using cost is lower than copper-type spray.
9.With fault alarm text description, maintenance is simple and clear.
10.Have a plurality of mold process differential preservation of function.
| Servo Driven Sprayer | |||
| Model | BRYPO2Y | BRYPO4Y | BRYPO6Y |
| Recommended die casting machine | 160-420T | 500-850T | 1250T |
| Traverse stroke | 650mm | 850mm | 950mm |
| Forward time | 0.8s | 1.0s | 1.2s |
| Backward time | 0.8s | 1.0s | 1.2s |
| Vertical stroke | 850mm | 1250mm | 1400mm |
| Rise time | 1.0s | 1.5s | 2.0s |
| Down time | 1.0s | 1.5s | 2.0s |
| X-axis driven motor | 750W | 1000W | 1300W |
| Y-axis driven motor | 750W | 1300W | 1500W |
| Air pressure | (PT1")5-6kg/cm² | (PT1")5-6kg/cm² | (PT1")5-6kg/cm² |
| Release agent | (PT½")3-5kg/cm² | (PT½")3-5kg/cm² | (PT¾")3-5kg/cm² |
