Full-servo Take-out Robotic Arm

Full-servo Take-out Robotic Arm thumbnail-1
Full-servo Take-out Robotic Arm photo-1
US$ 14,999 - 17,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Elevation Speed:
7 sec
Vertical Travel(mm):
1200 mm
Contact Supplier Request Quote Chat Now
Guangdong Bo Langte Intelligent Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Elevation Speed 7 sec
Vertical Travel(mm) 1200 mm
Horizonal Travel(mm) 1180 mm
Application Other, Take out Product
Place of Origin Guangdong, China
Brand Name BORUNTE
Model Number BRR1200WD-S3/S5 Full-servo Take-out Robotic Arm
Weight 280 kg
Dimension(L*W*H) 2540*1868*1748 mm
Power(W) 3.2/1.7 KVA
Certification CE. SGS. ISO. TUV
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

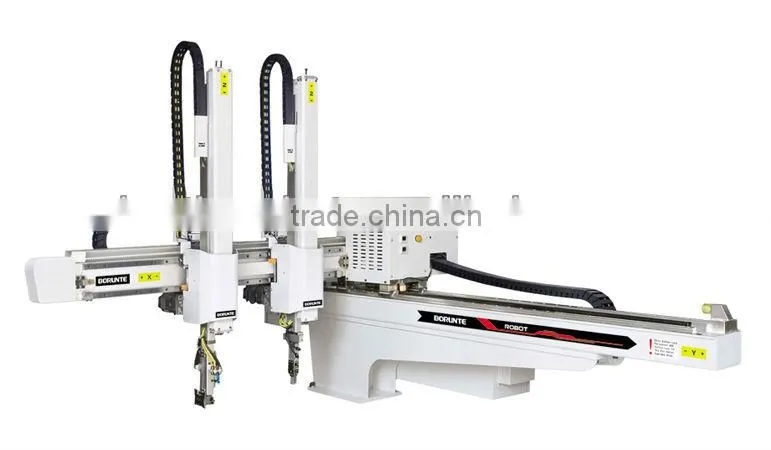

 Full-servo Take-out Robotic Arm



Full-servo Take-out Robotic Arm is telescopic type and single arm,suitable for two plate mold

products take out. Traverse axle and vertical axle driven by AC servo motor.



Main Specification:

Model BRR800WD-S5/S3 BRR100WD-S5/S3 BRR1200WD-S5/S3
Power Source(KVA) 3.2/1.7 3.2/1.7 3.2/1.7
Recommended I.M.M(ton) 100-250 250-450 450-650
Traverse Stroke(mm) 1440 1620 1800
Traverse Driven AC Servo Motor
Crosswise Stroke(mm) 820 1000 1180
Vertical Stroke(mm) 800 1000 1200
Max.Loading(kg) 5 8 10
Dry Take Out Time(sec) 0.8 1 1.2
Dry Cycle Time(sec) 5 6 7
Air Consumption(Nl/cycle) 4 4 5
Net Weight(kg) 200 240 280

Outer Dimensions:



Model A B C D E F G H I J K M
BRR800WD-S5/S3 1508 / 535 1508 1440 200 2300 150 820 160 145 405
BRR1000WD-S5/S3 1628 535 1688 1620 2420 1000
BRR1200WD-S5/S3 1748 423 1868 1800 2540 1180 120 100







Full-servo Take-out Robotic Arm



Full-servo Take-out Robotic Arm



Full-servo Take-out Robotic Arm



2014Shanghai Chinaplas:

Full-servo Take-out Robotic Arm



Full-servo Take-out Robotic Arm

Product size

2540*1868*1748

Net weight

280kg

Gross weight

Subject to the actual packaging

Packaging Materials

packaged with wooden case and plastic stretch film

Package include

                                  1.English manuals

                                   2.Accessories

                                   3.Controller

Full-servo Take-out Robotic Arm



1> 10 years experience in the industry of robotic arm.

2> All robotic-arm and belt conveyor are 100% new.

3> We do 100% testing before shipment.

4> Warranty are 12 months for all products.

5> Provide CE/SGS/ISO certification.

6> Major market included North America,South America,Europe, Southeast Asia, South Africa

    and Australia etc.

♣ Our certification

Full-servo Take-out Robotic Arm



Full-servo Take-out Robotic Arm

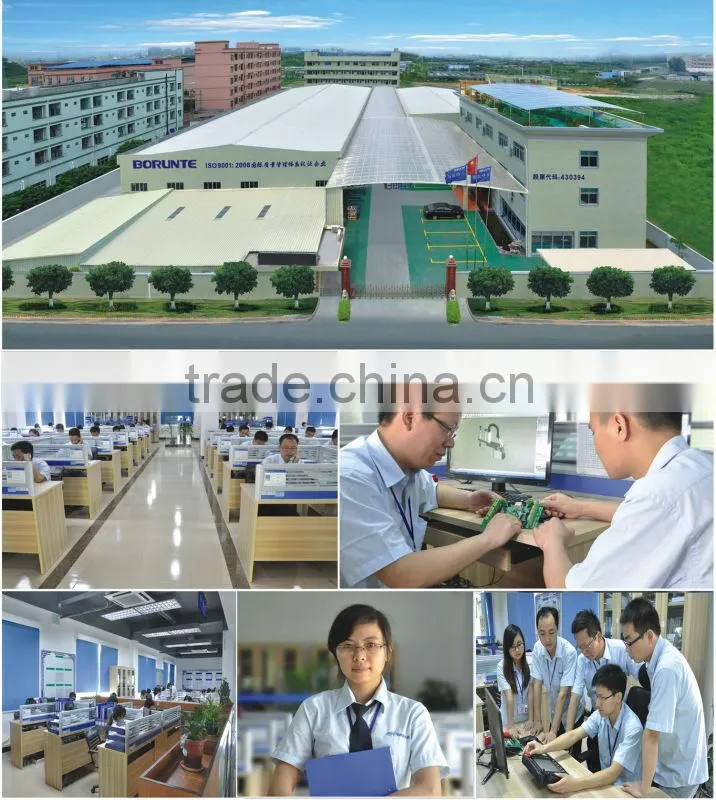

Guangdong Bo Langte Intelligent Equipment Co.,Ltd specialize in robot arm and peripheral

automation equipments manufacturing.Our members has honest sales team. We have

accumulated rich & valuable experiences in offering customers good service.



Full-servo Take-out Robotic ArmFull-servo Take-out Robotic Arm





Full-servo Take-out Robotic Arm



♥ Mr. Tommy-Tang(Sales manager)

♥ Skype: tom71521

♥ Tel: 86-769 - 3901 1165

♥ Fax: 86-769 - 81066785

♥ Showroom: www.brotherobot.en.china.cn
