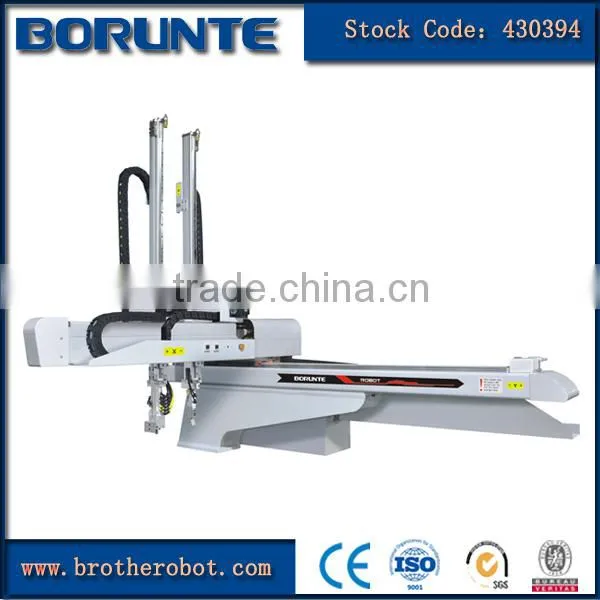

Full Servo Automation Take Out Robotic Arm

Full Servo Automation Take Out Robotic Arm thumbnail-1
Full Servo Automation Take Out Robotic Arm photo-1
US$ 12,500 - 15,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Elevation Speed:
5 sec
Vertical Travel(mm):
600 mm
Contact Supplier Request Quote Chat Now
Guangdong Bo Langte Intelligent Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Elevation Speed 5 sec
Vertical Travel(mm) 600 mm
Horizonal Travel(mm) 700 mm
Application Other, Take out product
Place of Origin Guangdong, China
Brand Name BORUNTE
Model Number BRR600ID-S5 Full Servo Automation Take out Robotic Arm
Weight 120 kg
Dimension(L*W*H) 2300*1354*1345 mm
Power(W) 3.2/1.7 KVA
Certification CE, SGS, TUV, ISO
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas
BRR600/800ID-S3/S5

Full Servo Automation Take out Robotic Arm

Full Servo Automation Take out Robotic Arm

1.Main Specification

Model BRR600ID-S5/S3 BRR800ID-S5/S3
Power Source(KVA) 3.2/1.7 3.2/1.7
Recommended I.M.M(ton) 30-100 50-320
Traverse Stroke(mm) 1200 1500
Traverse Driven AC Servo Motor
Crosswise Stroke(mm) 700 800
Vertical Stroke(mm) 600 800(900)
Max.Loading(kg) 4 5
Dry Take Out Time(sec) 0.8 0.8
Dry Cycle Time(sec) 5 5.5
Air Consumption(Nl/cycle) 4 5
Net Weight(kg) 120 200



2.Other Dimensions

Model A B C D E F G H I J K M
BRR600ID-S5/S3 1345 / 396 1354 1200 160 2300 72 700 140 115 230
BRR800ID-S5/S3 1830 / 520 1300 1500 200 2360 235 870 180 150 420





Full Servo Automation Take out Robotic Arm



 Full Servo Automation Take out Robotic Arm





Full Servo Automation Take out Robotic Arm

    More and more modernized enterprises are using Bo Langte’s equipment to improve

product quality and work efficiency, promote the competitiveness of products.



Full Servo Automation Take out Robotic ArmFull Servo Automation Take out Robotic Arm





Full Servo Automation Take out Robotic Arm

 · Vision:  Become world class brand of intelligent equipment!

 · Mission: Create the biggest value for customers, employees, firm and society!

 · Core value: Serious, honest, sincere, win-win, innovative, sustainable!

 · Culture mode: Army + school + family!  Ensure accomplishment, resolute completion!



Full Servo Automation Take out Robotic Arm



 Full Servo Automation Take out Robotic Arm

Full Servo Automation Take out Robotic Arm

    More and more modernized enterprises are using Bo Langte’s equipment to improve

product quality and work efficiency, promote the competitiveness of products.



Full Servo Automation Take out Robotic Arm



Full Servo Automation Take out Robotic Arm
