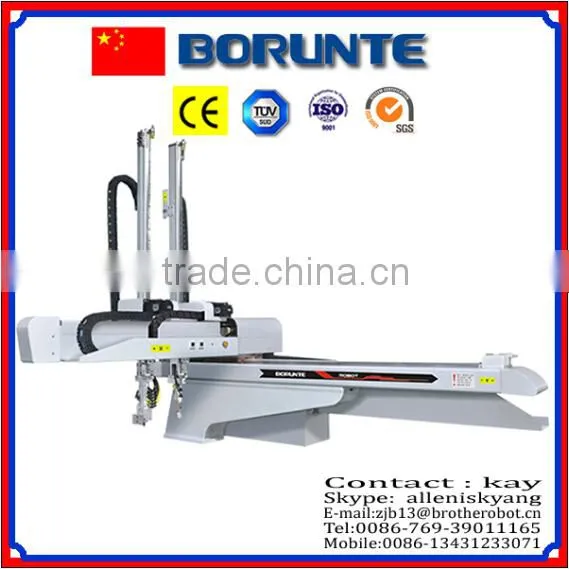

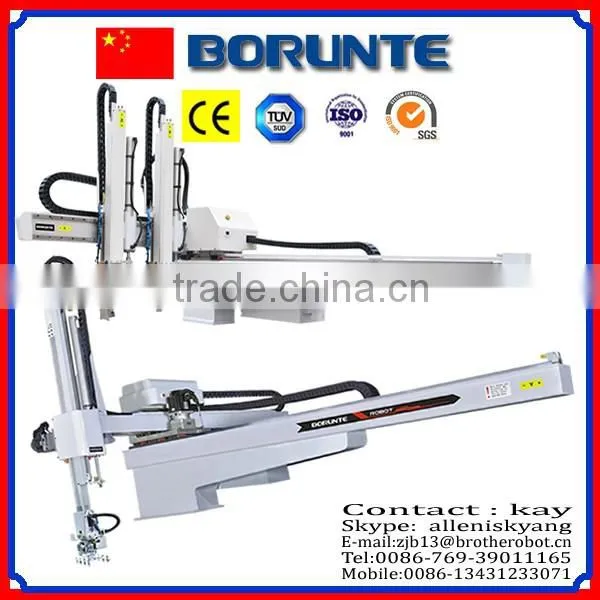

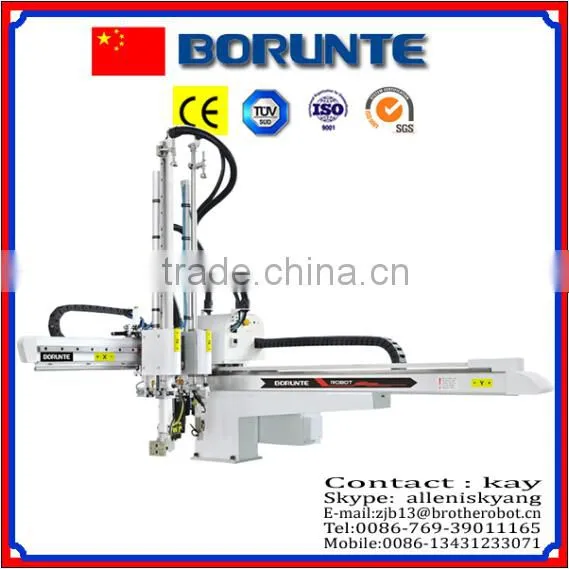

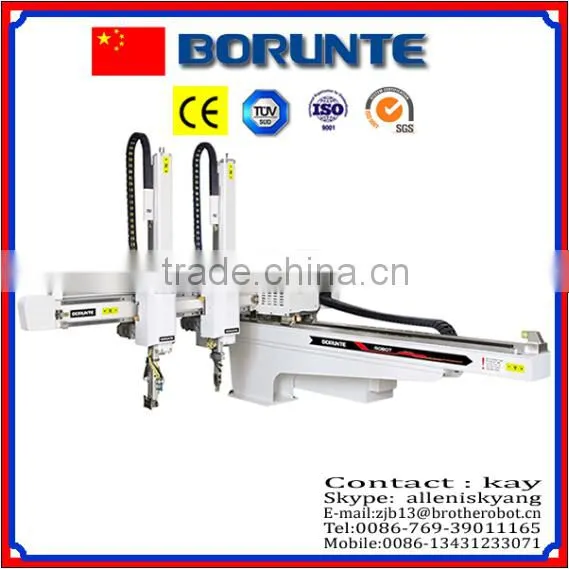

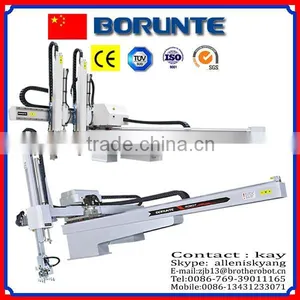

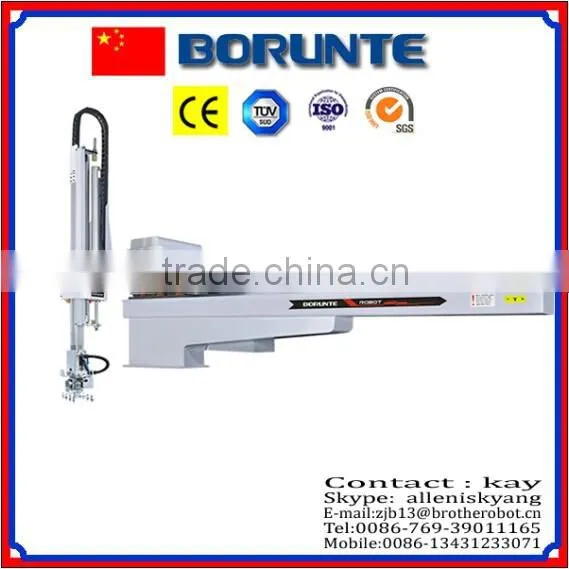

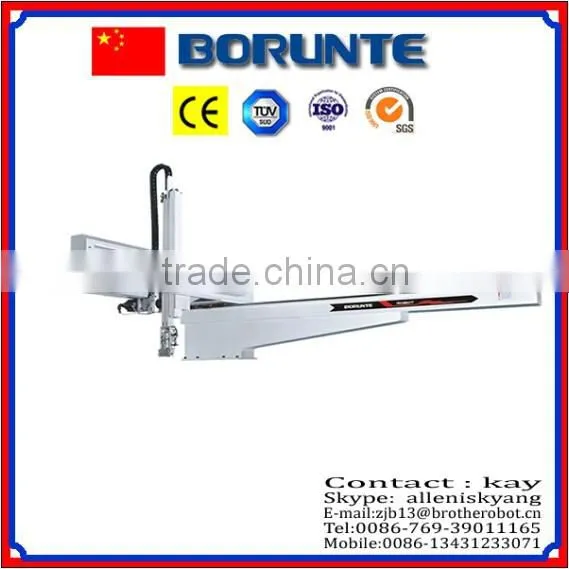

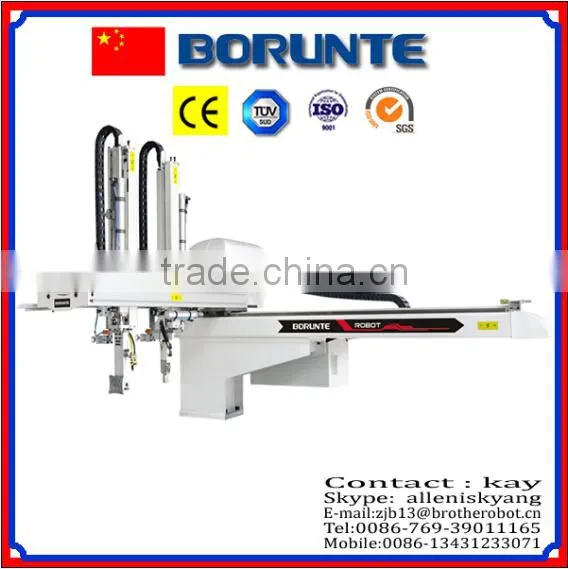

Borunte Servo Traverse Robots
Linear robots for every application
Borunte has a worldwide reputation for excellence in the development, production and integration of high-speed servo traverse robots. Our extensive line-up includes a wide range of payload capacities, cycle speeds and stroke lengths to match all common press sizes and job specifications.
All Borunte servo traverse robots include powerful servo motors on all three or five axes, driven by a Huacheng NC box to save floor space and minimize cable runs. Additionally, many models feature dual-support kick frames for greater rigidity under higher payloads, plus two-stage telescopic arms for multiplied speed and reduced overall machine height.
Borunte Robots has 6 series, BRP series,BRA700/900 series(the number is the robot's Vertical Stroke,like BRA700,it's vertical stroke is 700mm),BRB600/700/800/900/1000/1200 series,BRC1400/1800/2200,BRR600/800/1000/1200,BRTN1400/1800/2200/2600/3000.according to the usage,the robots classified into 2 groups,the product arm + runner arm and product arm.according to the installed higher,the robots divide into 2 classes,Single stage & Telescopic type.
To your usage of the injection molding machine of different models,we can provide you the appropriate type of take out robots.
Outer Dimensions:(PS:if some other type you need,tell us,we provide you ther model. )
| Model | A | B | C | D | E | F | G | H | I | J | K | M |
| BRA700WDY | 1210 | 980 | 510 | 1235 | 1300 | 220 | 1980 | 125 | 700 | 160 | 200 | 360 |
| BRA900WDY | 1320 | 1080 | 1355 | 1300 | 2100 | 810 | 375 |
Main Specification:(PS: tell us the model you need,twe provide you the main specification. )
| Model | BRA700WDY/WSY | BRA900WDY/WSY |
| Power Source(KVA) | 0.6 | |
| Recommended I.M.M(ton) | 100-200 | 200-320 |
| Traverse Stroke(mm) | 1300 | 1300 |
| Traverse Driven | AC Servo Motor | |
| Crosswise Stroke(mm) | P:170 R:120 | |
| Vertical Stroke(mm) | 700 | 900 |
| Max.Loading(kg) | 3 | 3 |
| Dry Take Out Time(sec) | 1.6 | 1.8 |
| Dry Cycle Time(sec) | 8.5 | 10.5 |
| Air Consumption(Nl/cycle) | 22 | 25 |
| Net Weight(kg) | 145-200 | 150-230 |
Our business involves various markets all over the word, in many fields with our excellent
product performance; we favored consistent high praise from domestic and foreign customers.
About Borunte
Our company is the first listed company of this line in China . There are advanced processing
equipment, standardized assembling process, scientific testing method and modern storge bin.
We join in the second large exhibition of this line in the global on 23th-26th in Shanghai.
Certification:
Thanks for your visiting our Web,if you need the
HI-Q,Resonable price take out robot,asap contact me,plz.
