Injection Molding Machinery Robot Arm Below 320T

Injection Molding Machinery Robot Arm Below 320T thumbnail-1
Injection Molding Machinery Robot Arm Below 320T photo-1
US$ 6,888 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Elevation Speed:
10.5 sec
Vertical Travel(mm):
900 mm
Contact Supplier Request Quote Chat Now
Guangdong Bo Langte Intelligent Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

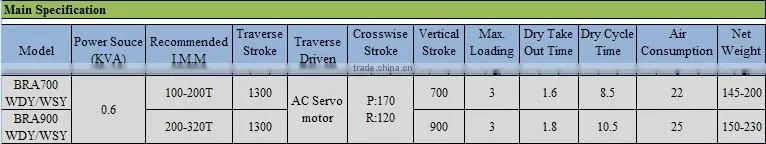

Condition New
Elevation Speed 10.5 sec
Vertical Travel(mm) 900 mm
Horizonal Travel(mm) P:170 mm R:120 mm
Application Other, Pick and Place
Place of Origin Guangdong, China
Brand Name BORUNTE
Model Number BRA900WDY Injection Molding Machinery Robot Arm
Weight 150-230 kg

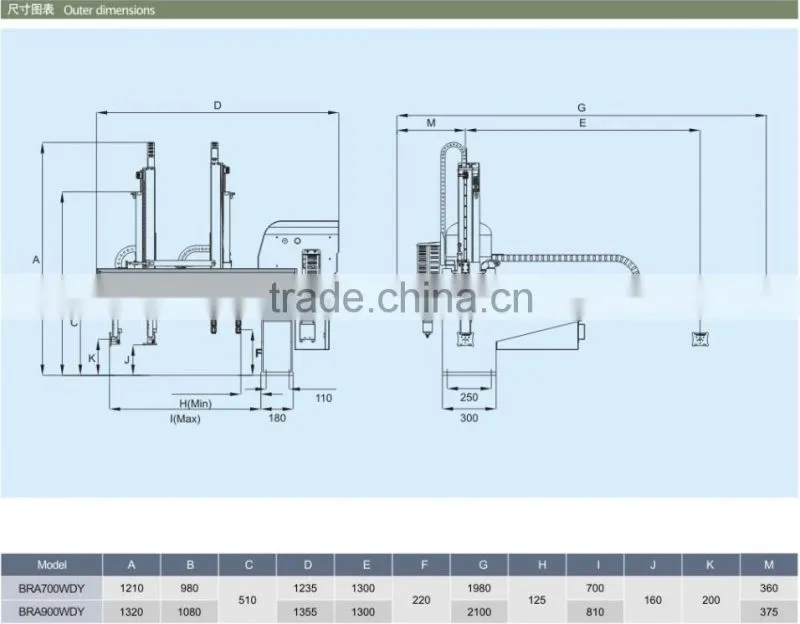

Dimension(L*W*H) 2100*1355*1320 mm
Power(W) 0.6 KVA
Certification CE,ISO,SGS,TUV, CE/ ISO/ SGS/ TUV
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



Injection Molding Machinery Robot Arm

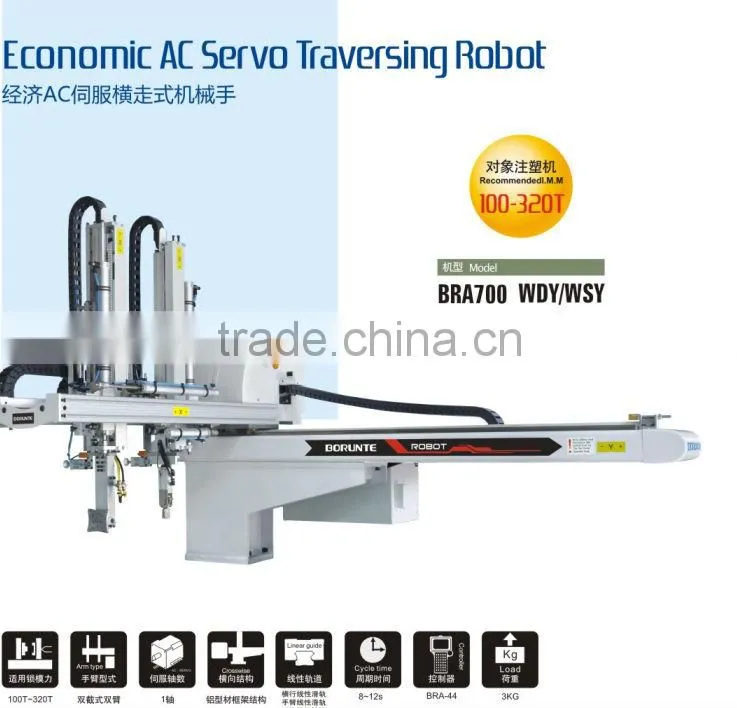

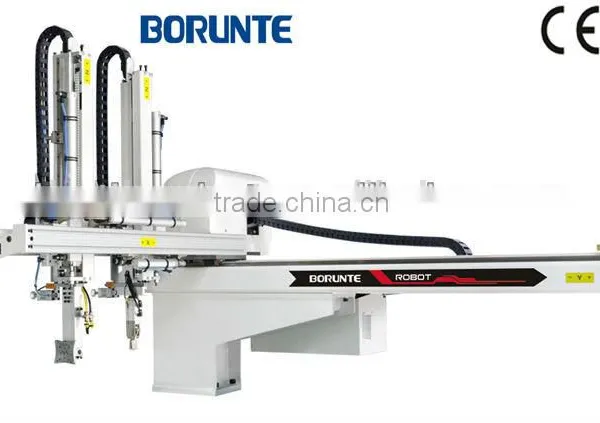

Economic AC Servo Driven Traversing Robot Arm

BRA700/900 Series traversing robot arm is applicable to all types of horizontal injection machine ranges of 100~320T for take-out products and sprues. Vertical arm is telescopic type, with product arm and runner arm, for two plate or three plate mold products take out. Traverse axle driven by AC servo motor. After installed this robot, the productivity will be increased 10~30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.

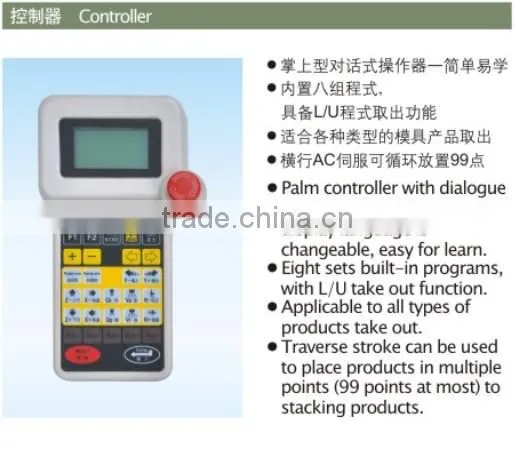

l         Palm controller with dialogue type operation interface, the display language is changeable, easy for learn.

l         Eight sets built-in programs, with L/U take out function.

l         Applicable to all types of products take out.

l         Traverse stroke can be used to place products in multiple points (99 points at most) to stacking products.



Denote:

W: Telescopic type.

D: Product arm + runner arm.

S: Product arm

Y: AC Servo driven on traverse axis.



 Injection Molding Machinery Robot Arm Below 320TInjection Molding Machinery Robot Arm Below 320TInjection Molding Machinery Robot Arm Below 320TInjection Molding Machinery Robot Arm Below 320T







Customers Application Cases:

  • Robot arm has been widely applied to household appliances, computer and peripherals products, photoelectric, cosmetic, automobile, clocks and watches, precision gear, PET bottle embryo, beach chair, audio-visual music, light guide, communication electronic, mobile phones, medical supplies, medicine packaging, food packaging, etc.

Injection Molding Machinery Robot Arm Below 320T





High Quality End of Arm Tooling Parts:Injection Molding Machinery Robot Arm Below 320T

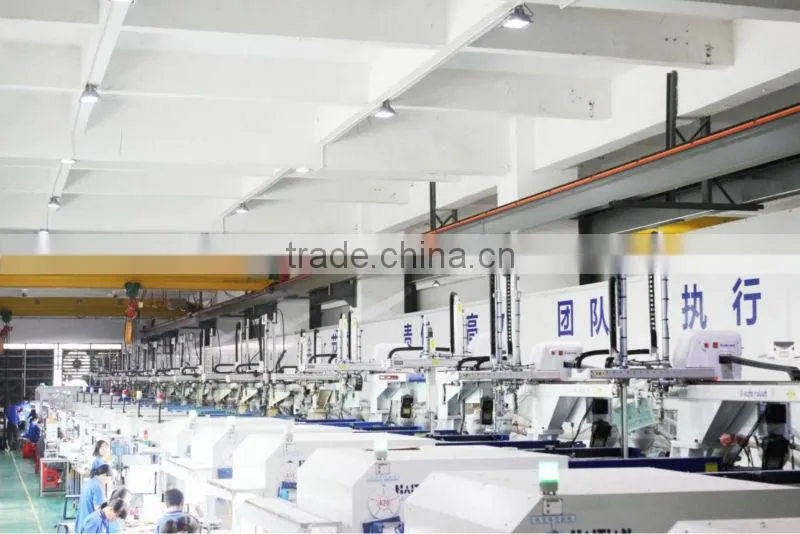

Advanced Processing Equipment:

  • Company use advanced laser cutting machine, large gantry machining center, large CNC machining centers, CNC bending machines, cutting machines, CNC lathe, milling machine, surface grinding machine etc. ensure the machining precision and quality.

Injection Molding Machinery Robot Arm Below 320T







Machinery assembling - Rigorous work, focus on details:

  • Each assembling technician all passed through the strict pre-job training, qualified then mounts guard.
  • Standardized assembling process, ensure every process up to standard requirements, improve the assembly precision and quality.

Injection Molding Machinery Robot Arm Below 320T







Machinery Parts Warehouse:

  • Company purchased modern storage bin, improve the standard product quantitative inventory, guaranteed fast delivery to meet customers’ need.
  • Warehouse all input materials, must be with factory quality inspection certificate and by our professional technician re-confirmed, ensure that incoming products 100% qualified.
  • Input parts all need to be record, each component are coded and placed provisions position, ensure warehouse efficiency and prevent the loss of resources.

Injection Molding Machinery Robot Arm Below 320T







Research and Developmemt Department:Injection Molding Machinery Robot Arm Below 320T





Corporate Culture:

  • Vision:  Become world class brand of intelligent equiptment!
  • Mission:  Create the biggest value for customers, employees, firm and society!
  • Core value:  Serious, honest, sincere, win-win, innovative, sustainable!
  • Culture mode: Army + school + family!    Ensure accomplishment,   resolute completion!

 Injection Molding Machinery Robot Arm Below 320T





Company:

Injection Molding Machinery Robot Arm Below 320T





Overseas Sales and Service Network:

  • Our business involves various markets all over the word, in many fields with our excellent product performance; we favored consistent high praise from domestic and foreign customers.

Injection Molding Machinery Robot Arm Below 320T
