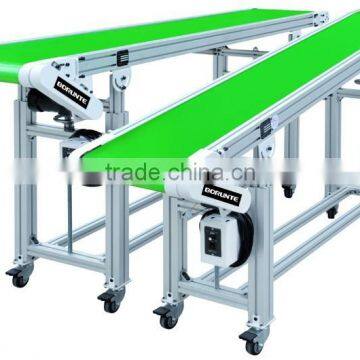

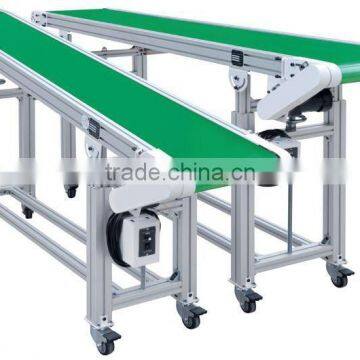

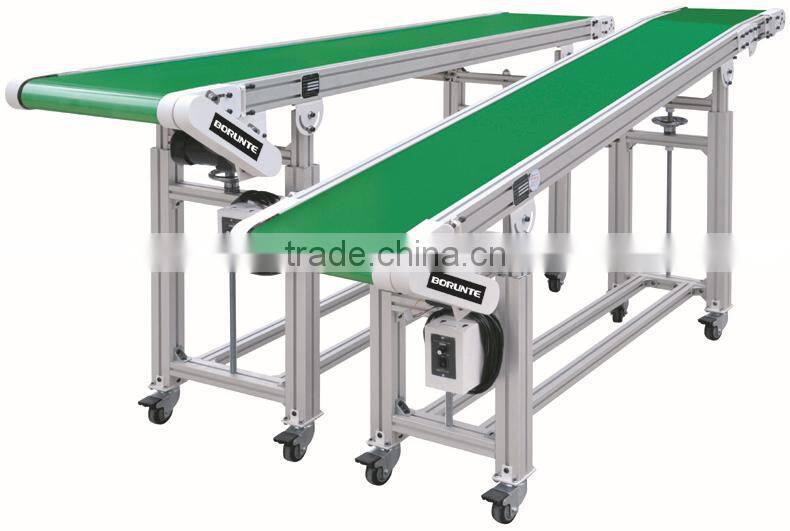

Make a Conveyor Belt Loader

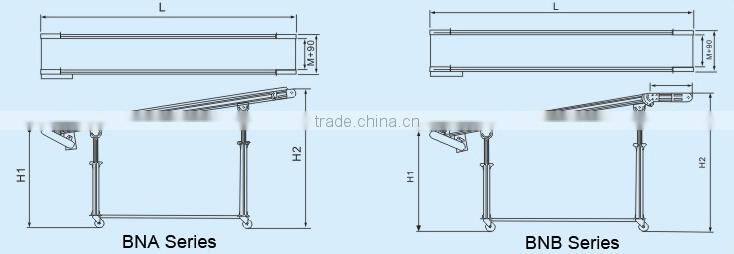

Outer Dimensions:
| Model | BNA/BNB 200W | BNA/BNB 300W | BNA/BNB 400W | BNA/BNB 500W | BNA/BNB 600W |
| Width of Belt (mm)/W | 200 | 300 | 400 | 500 | 600 |
| Length of Belt Conveyor (mm)/L | 1500/2000/2500/3000/3500/4000/4500/5000/5500/6000 | ||||
| Height of lower end (mm)/H1 | 700-1100 | ||||
| Height of higher end (mm)/H2 | 1100-1500 | ||||
| Length of Plance (mm)/L2 | 300 (only for BNB series) | 500 (only for BNB series) | 700 (only for BNB series) | ||
| Max. Loading (kg) | 15 | ||||
| Standard Speed (m/min) | 5 | ||||
| Belt Description | (1) Material: PVC (2) Thickness: 2mm (3) Color: green (4) Heat resistant: -10-80°c (5) Antistatic, wear resistant and oil resistant. | ||||
| Power Source | Single Phase AC 220±10V 50/60HZ | ||||
| Power Capacity (KVA) | 0.2 | ||||
| Features | (1) Full unit made with high rigidity alloy aluminum structure beam (A6063). Super-strong structure makes it long-wearing and not deformed. (2) The height of both sides can be adjusted easily by a hand shaft, convenient in using. (3) Enclose 4 wheels, convenient to move. Four fixed feet are foldable, save space. (4) Speed is adjustable, easy to use. (5) With standard robot connecor which can be connected quickly. | ||||

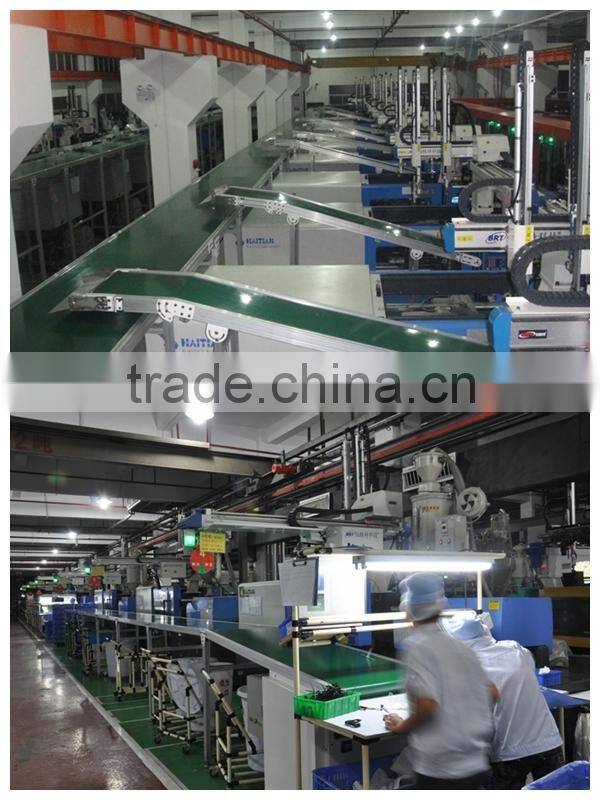

Customers Application Cases:
Packing: Wooden Case and Plastic Stretch Film
We provide after-sales service for our domestic and overseas customers:
Our Factory:
Assembly Workshop:
CNC Processing Center:
Warehouse:
2014 Chinaplas in Shanghai:
CE, SGS, TUV, ISO Certifications:
(1) Are you a factory or a trading company?
We are manufacturer in Dongguan City, Guangdong, China.
(2) What's the speed and loading weight of your conveyor belt loader?
Standard speed: 5 meters/minute (Adjustable)
Max. loading: 15kg
(3) Do you have any certifications?
Yes, we have. All of our conveyor belt loaders are CE, SGS, TUV, ISO certificated.
(4) What's your product lead time?
Within 20 days after payments.
Why Choose BORUNTE?
(1) The first listed intelligent equipment company in China.
(2) Over 10 years experience in the industry of conveyor belt loader with the capacity to produce 5000 sets a year.
(3) CE, SGS, TUV, ISO 9001:2008 certificated.
(4) Over 400 skilled workers, QC department and R&D team to ensure the high quality and fast production.
(5) Our sales increased 99.7% in 2013 and 42.8% in 2014.
(6) Only 1 hour reach HK port or Shenzhen port, convenient for shipment.
