Specifications
Sand Maker Machine1.rock-on-rock design
2.durable and economic
3.sand maker manufacturer
4.ISO9001:2008 & CE

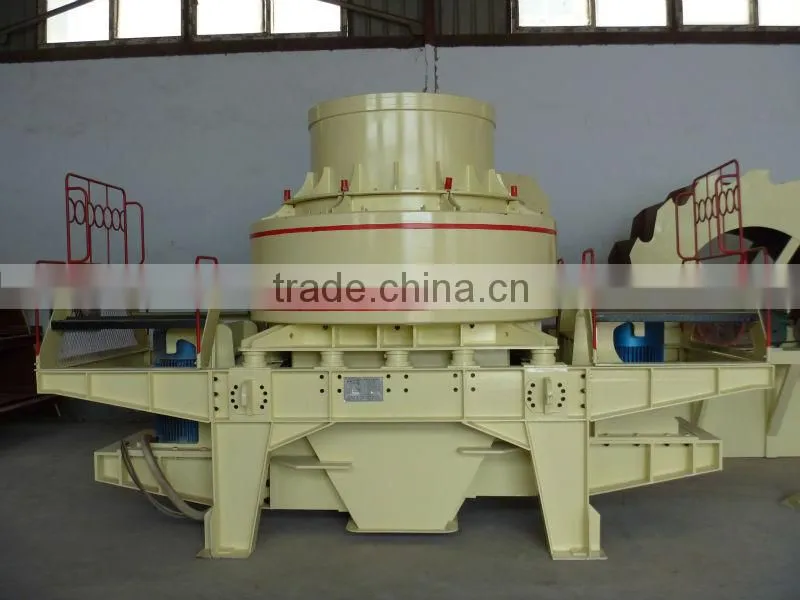

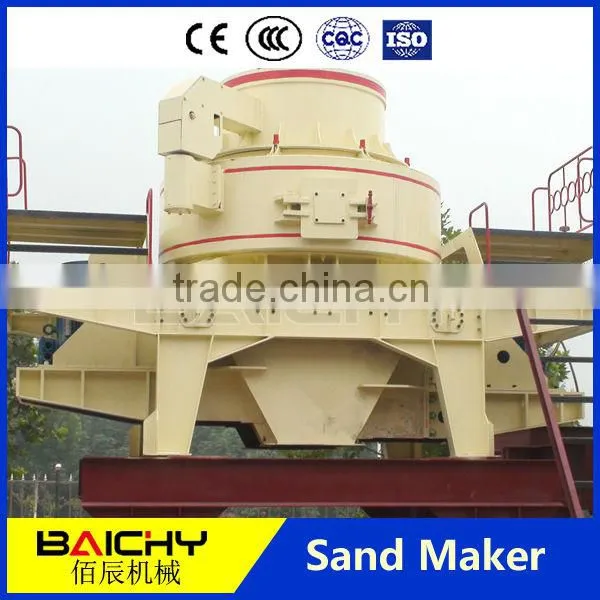

VSI High-efficient vertical shaft Sand Maker
Brief Introduction
Vertical shaft sand maker is also known as sand making machine and shaping machine. It is the internationally advanced low energy crushing equipment which manages the fine crushing equipments for ore, river pebbles and Iron ore. It is the effective, practical and reliable sand shaping machine at this moment.
Application
This series of sand making and shaping machines are suitable for kinds of hardness material, widely used in metal ore or non_metallic minerals, building sand, stones, metallurgical slag, and quartz. It is especially suitable for super hardness material and wear resistant material such as corundum, sintered bauxite, etc.

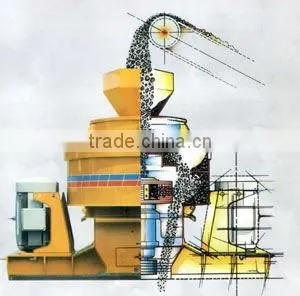

Working Principle

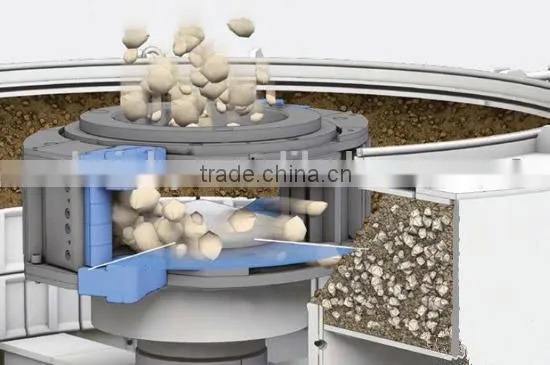

Materials fall into the highspeed rotary impellers from the top of the machine, accelerated by the centrifugal force, it strongly grinds with the other part of material flowing around the impellers in an umbrella form. After their impaction, the eddy will be formed between the impellers and the machine shell. In the eddy the materials are impacted, rubbed and pulverized for many times and discharged from the bottom of the machine. The required granularity of the final products is controlled by the screening equipment.
Technical data
Model |
VSI-7611 |
VSI-8518 |
VSI-9526 |
VSI-1140
|
VSI-1145 |
|
Capacity (t/h) |
Cascade and Center Feeding |
120-180 |
200-260 |
300-360 |
450-520 |
490-600 |
Center Feeding |
60-90 |
100-130 |
150-190 |
225-260 |
250-310 |
|
Feeding Size (mm) |
Soft Material |
<35 |
<40 |
<45 |
<50 |
<50 |
Hard Material |
<30 |
<35 |
<40 |
<45 |
<45 |
|
Rotation Speed (r/min) |
1700-1890 |
1520-1690 |
1360-1510 |
1180-1310 |
1180-1280 |
|
Power of the Double Motors (kw) |
110-150 |
180-220 |
264-320 |
400-440 |
440-520 |
|
Overall dimension L×W×H (mm) |
3700×2150 ×2100 |
4140×2280 ×2425 |
4560×2447 ×2278 |
5000×2700 ×3300 |
5100×2790 ×3320 |
|
Weight (t) |
9.8 |
13.5 |
16.8 |
25.6 |
27.5 |
|
Power Source |
380v:50hz |
|||||
Vibrating Sensor |
Inspection Scope:0.1-20mm/s, it can be adjusted continuously. |
|||||
Hydraulic Lubrication Station |
Power of Double Oil Pump |
2×0.31kw |
||||
Safety |
Double oil pumps make sure supply of oil with; Stop automatically without oil flow or oil pressure; Water cooled; Heating start the motor in winter. |
|||||
Overall Dimension L×W×H (mm) |
820×520×1270 |
|||||
Power of Oil-Box Heater |
2kw |
|||||
Henan Baichy Machinery Equipment Co., Ltd. was founded in 2003, and now it has been becoming a high-tech mining company. Our company integrates research and development, designing, manufacturing, sales and after-sales services. The brand products, Cone crusher, Sand making machine, High-efficient fine crusher, High-pressure medium-speed mill, Vertical mill, Micronizer, Three-ring mill, Ball mill, etc, are in the leading level of the world.
A; we can send our technician to your work site to make basement construction.
B; we can send our workers to your work site to make the plant installation.
C; we guarantee our machines can produce the qualified products by your requirements.
D; we can offer all drawings of the plant.
E; we guarantee the best whole life after-sales.
.Baichy Enterprise Culture:
· Enterprise objective: quality first, sustained development.
· Operation concept: focusing on quality, persisting in good faith.
· Operation principle: customer foremost, mutual-win objective.
Certificates of honor are the measure of the strength of the company, and the trust of users on Henan Baichy Machinery Equipment Co., Ltd. is the greatest honor for us!
In 2008, Henan Baichy Machinery Equipment Co., Ltd. was chosen to be the member of "CSSA Chinese gravel Association".
All the products of Henan Baichy Machinery Equipment Co., Ltd. Have passed through the ISO9001:2008 Quality Management System and gained the IQNet international Certificate.
In order to recommend suitable design for you, please kindly tell me:
1. What is your raw material to be crushed, is it soft stone (like limestone, dolomite) or hard stone (like granite,basalt, river stone, etc)?
Impact crusher is suitable as secondary crusher for soft stone, while cone crusher is suitable as secondary crusher for hard stone.
2. What is the maximum feed size of your raw material?
3. What are output sizes you want?
Normally for road construction, it is 0-40mm, while for aggregate, it is 0-20mm.
4. What is per hour capacity you want?
5. Are you the end user or will you re-sell the machinery to your clients?
Welcome your inquiry on our Sand Maker Machine,thank you !!!
