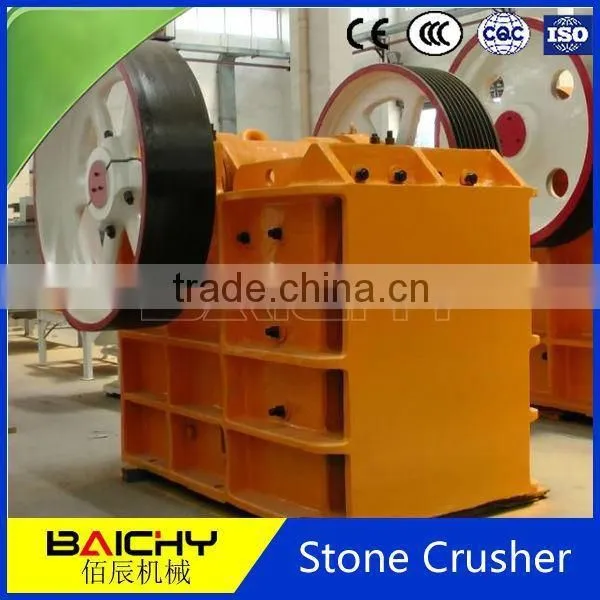

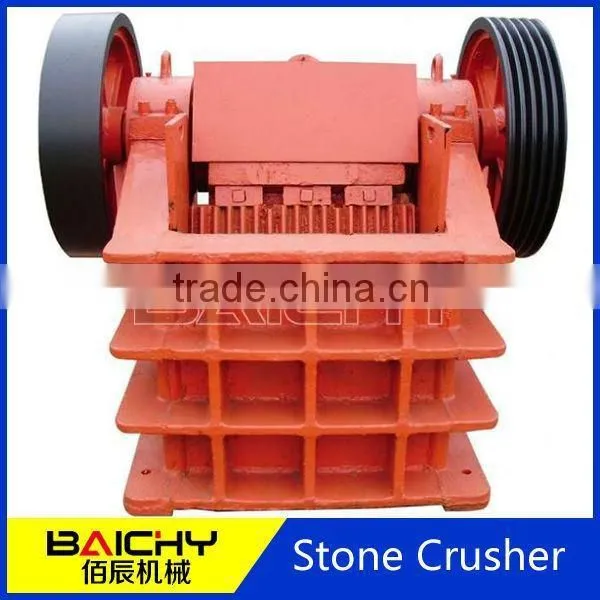

Small Jaw Crusher

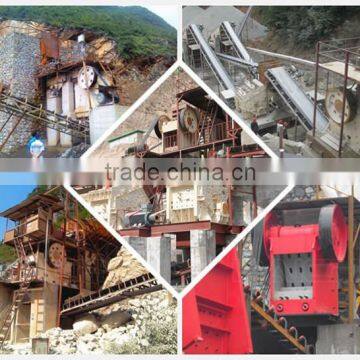

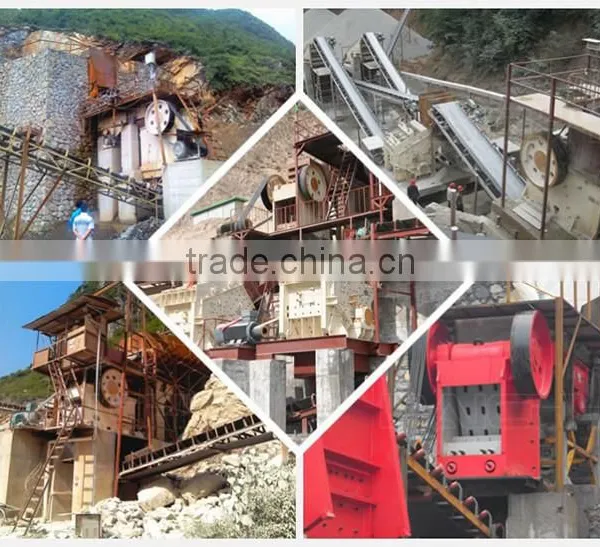

Jaw crusher has the features of high crushing ratio, even granule, simple structure, easy maintenance, etc. It is widely used in mining, metallurgy, building materials, highway, railway, department of water conservancy and chemical industry and so on. The highest compressive resistance of the crushed materials is 320Mpa.

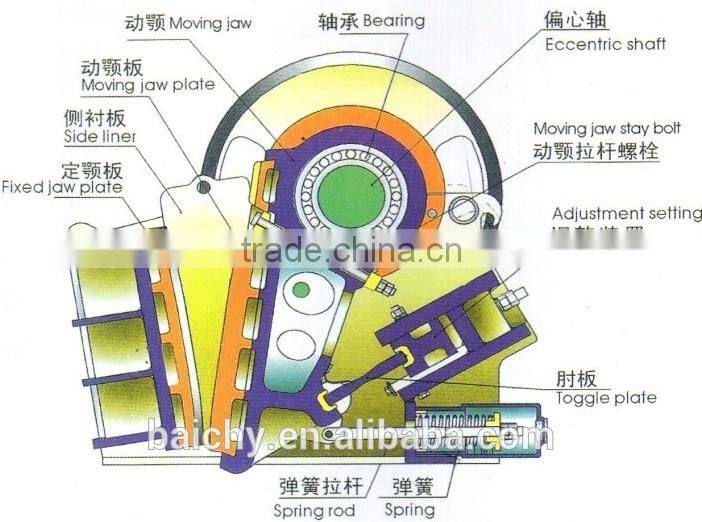

Motor drivesv-belt and belt pulley to make moving jaw do periodic motion by eccentric shaft. Moving jaw moves upwards to the fixed jaw when angle between toggle plate and moving jaw increases, so materials are crushed in this process. Moving jaw moves downwards from fixed jaw by pulling rod and spring when angle between toggle plate and moving jaw decreases, so the final crushed materials are discharged from the outlet. The moving jaw moves periodically according to the eccentric shaft movement, and the materials entering the crushing chamber are crushed and discharged continually.
| Model | Feeder Opening Size(mm) | Max. Feeding Size (mm) | Discharging Opening Size(mm) | Capacity (t/h) | Motor Power (kw) | Overall Dimension (mm) |
|---|---|---|---|---|---|---|
| PE150××250 | 150×250 | 130 | 15-45 | 1-4 | 5.5 | 896×745×935 |

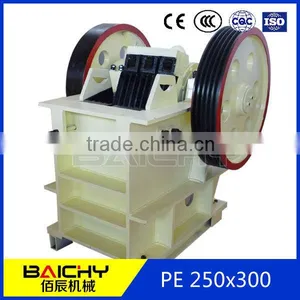

| PE250×300 | 250×300 | 150 | 15-55 | 3-6 | 7.5 | 1050×987×1000 |
| PE250×400 | 250×400 | 210 | 25-60 | 5-20 | 15 | 1215×1520×1030 |
| PE400×600 | 400×600 | 350 | 40-90 | 15-60 | 30 | 1650×1588×1050 |
| PE500×750 | 500×750 | 425 | 50-100 | 40-110 | 45 | 1956×1918×1920 |
| PE600×900 | 600×900 | 500 | 60-125 | 90-180 | 55 | 2250×2733×2280 |
| PE800×900 | 800×900 | 600 | 80-140 | 100-220 | 75 | 2450×2950×2490 |
| PE750×1060 | 750×1060 | 630 | 60-150 | 110-380 | 110 | 2531×2455×2783 |
| PE900×1060 | 900×1060 | 700 | 100-160 | 180-380 | 110 | 2900×2657×2950 |
| PE900×1200 | 900×1200 | 750 | 110-165 | 220-450 | 132 | 3100×2760×3260 |
| PE1200×1500 | 1200×1500 | 950 | 115-195 | 250-500 | 220 | 3710×3446×4075 |
| PE1500×1800 | 1500×1800 | 1200 | 135-225 | 350-700 | 280 | 5100×4700×4300 |
| PEX150×750 | 150×750 | 120 | 10-40 | 5-16 | 15 | 1310×1118×1145 |
| PEX250×750 | 250×750 | 210 | 15-50 | 15-30 | 22 | 1440×1751×1515 |
| PEX350×750 | 350×750 | 300 | 15-50 | 18-40 | 30 | 1485×1680×1648 |
| PEX250×1000 | 250×1000 | 210 | 15-60 | 15-60 | 30 | 1550×1964×1380 |
| PEX250×1200 | 250×1200 | 210 | 15-60 | 20-60 | 37 | 1530×1946×1380 |
| PEX300×1300 | 250×1300 | 250 | 25-60 | 10-65 | 55 | 2000×2320×1730 |
| PEX400×1200 | 300×1300 | 350 | 10-19 | 30-80 | 45 | 1628×2270×1651 |
