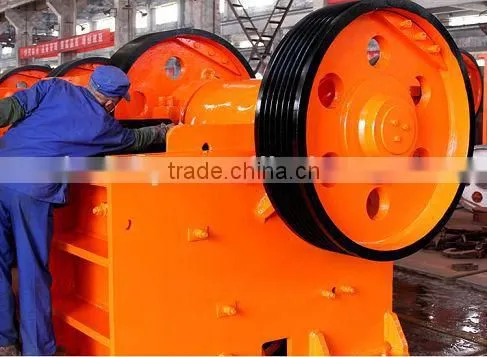

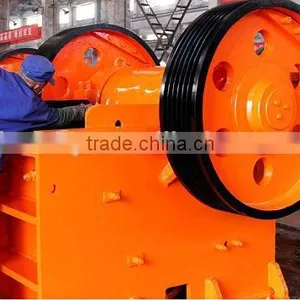

PE Series Jaw Crusher Toggle Plate for Quarry Mining
- 50 Set / Sets per Month
- Qingdao/Tianjin/Shanghai
- T/T Credit Card
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Jaw Crusher | Application: | mine,building material,highway |
Motor Type: | AC Motor | Power(W): | 55000 | Capacity(t/h): | 90-180 |
Place of Origin: | Henan, China | Brand Name: | BAICHY | Model Number: | PE600*900 |
Dimension(L*W*H): | 2250*2733*2280mm | Weight: | 17.6t | Certification: | ISO9001:2008 |
Warranty: | 1 YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Jaw Crusher Toggle Plate2.Large crushing ratio
3.Even granularity
4.Simple structure&easy maintenance
5.ISO9001:2008
PE Series Jaw Crusher Toggle Plate for Quarry Mining
1. Introduction of jaw crusher:
Jaw crusher which is produced by our company is a high-performance, energy-saving broken equipment absorbing the successful experience of similar products both at home and abroad. Large and medium-sized jaw crushers are one of our main products. Particularly in the design and manufacture, it has been leading level both at home and abroad. It is widely used in the fields of metallurgical industry, mining, building materials, highway, railway, chemical industry, etc.
2. Jaw crusher’s working principle:
Jaw crusher’s main structure is rack, eccentric shaft, the pulley, flywheel, moving jaw, side shield, elbow board, elbow, the rear plate; transfer gap screw, spring reset; fixed plate and the activities of jaw board. And bracket also plays an important role in insurance. The machine’s leather belt and wheel are driven by the electric motor, and then the movable jaw begins to move up and down by the eccentric shaft. When the movable jaw moves from bottom to top, the angle between fixed jaw and movable jaw becomes bigger, then promotes the active board close to the fixed board. At the same time materials are extruded, molded, multi-roller crushed etc. When the movable jaw moves from top to bottom, the angle between fixed jaw and movable jaw becomes smaller, under the function of drag, rod and spring, the movable jaw plate deviate from the fixed jaw plate. At this moment the crushed materials are discharged from the bottom outlet of the crushing cavity. With the continuous rotation motor, the crusher is crushing and nesting cyclically.
3. Jaw crusher’s performance characteristics:
1. Deep broken cavity, no dead zone, large feeding capacity and output.
2. Large crushing ratio, uniform size of products.
3. Safe and reliable lubrication system, convenient replacement of parts
4. Simple structure, reliable work, low operating costs.
5. Energy-saving equipment, single machine can save energy 15% -30%.
6. Large adjustment range of the nesting, it can meet different users’ requirements.
7. Low noise and less dust.
4.Jaw Crusher main technical parameters:
Type |
Max feed size (mm) | Specification |
Main shaft rotary(r/min) |
Motor power(kw) |
Overall dimensions (L×W×H) (mm)
|
Weight (kg) | |
Adjustment scopes(mm) |
Production capacity(m3/h) | ||||||
PE150×250 | 125 | 10-40 | 1-3 | 285 | 5.5-7.5 | 922×745×933 | 700 |
PE200×300 | 165 | 20-70 | 2-8 | 265 | 11 | 1056×1100×1120 | 800 |
PE250×400 | 210 | 20-80 | 5-20 | 310 | 15-18.5 | 1108×1142×1392 | 3000 |
PE400×600 | 340 | 40-90 | 10-40 | 275 | 30 | 1700×1732×1392 | 7200 |
PE350×750 | 290 | 30-55 | 20-50 | 300 | 37 | 1900×1806×1808 | 8900 |
PE500×750 | 425 | 50-100 | 34-68 | 275 | 55 | 2050×1860×2145 | 11320 |
PE600×900 | 480 | 75-200 | 40-120 | 255 | 75 | 2792×1268×2250 | 17600 |
PE750×1060 | 630 | 80-200 | 80-160 | 250 | 90 | 4180×2560×3070 | 30530 |
PE900×1200 | 750 | 100-200 | 110-200 | 250 | 110 | 5200×2900×3500 | 50000 |
PE1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 3480×2876×3330 | 55000 |
PE1200×1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 4200×3300×3500 | 100000 |
PEX150×750 | 125 | 10-40 | 5-15 | 300 | 15 | 1220×1480×1180 | 3600 |
PEX250×1000 | 210 | 15-55 | 10-32 | 300 | 37 | 1580×1992×1380 | 7350 |
PEX250×1200 | 210 | 15-60 | 12-38 | 300 | 37 | 1730×2192×1380 | 8700 |
PEX300×1300 | 250 | 20-90 | 16-65 | 300 | 55 | 1930×2400×1747 | 11600 |
