Specifications
mining rotary dryer1.Big capacity,
2.Simple maintenance, long life
3.High efficient
4.ISO9001:2008

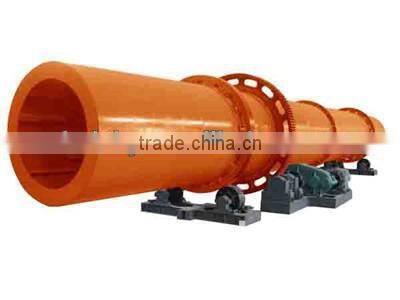

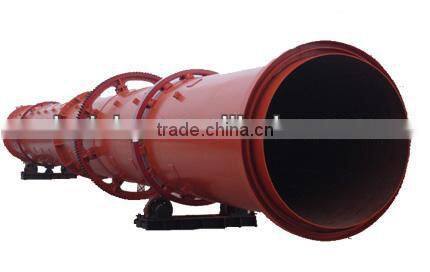

China Top 10 mining rotary dryer Widely Used in Mining Machinery
1.Description of rotary dryer:

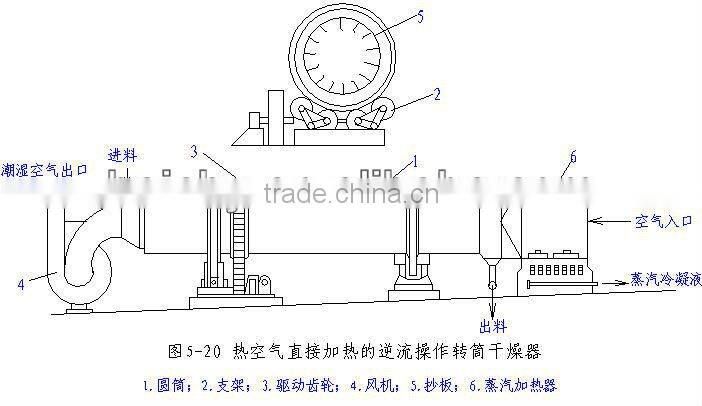

The rotary dryer is mainly composed by the revolving body, lifting plate, driving device, supporting device, sealing ring and other components. So it has the advantages of reasonable structure, perfect in workmanship, high yield, low energy consumption, convenient to operate
2.Application of rotary dryer
Rotary dryer is widely applied in mining, metallurgy, building materials, chemistry and other industries, mainly stoving mineral powder, slag, clay, limestone, lignite and other materials

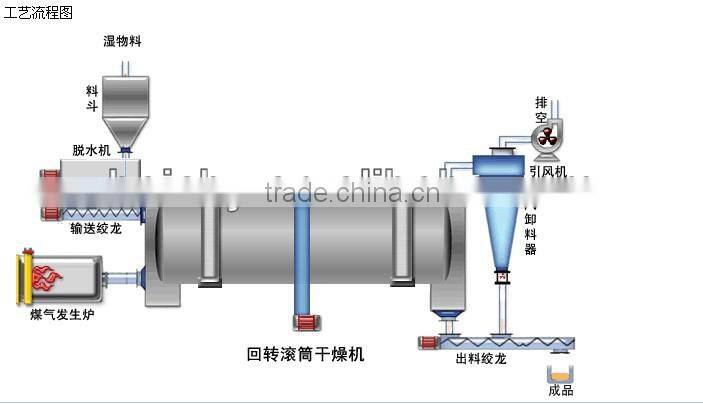

3.Working principle of rotary dryer
Rotary Dryer is made up of cylinder, lifting plate, transmission, supporting devices and others. Based on reasonable layout an alternate angle-change equally spaced in cylinder, the lifting plate scatters the wet material inside rotating cylinder. Hot air flow turns water into steam letting into air, and aimed dry material is achieved
4. Single drum rotary dryer parameter list
Model |
Shell diameter (mm) |
Shell length (mm) |
Slope(°) |
Rotary speed(r/m) |
Weight(t) |
Power (KW) |
Volume (m3) |
Φ0.6×8 |
600 |
8000 |
3-5 |
8 |
5.1 |
4 |
2.26 |
Φ0.8×10 |
800 |
10000 |
3-5 |
7.2 |
6.9 |
4 |
5.02 |
Φ1.0×10 |
1000 |
10000 |
3-5 |
6.73 |
7.5 |
5.5 |
7.85 |
Φ1.2×12 |
1200 |
12000 |
3-5 |
5.8 |
13.1 |
11 |
13.31 |
Φ1.5×12 |
1500 |
12000 |
3-5 |
4.8 |
22.3 |
15 |
21.2 |
Φ2.2×14 |
2200 |
14000 |
3-5 |
3.2 |
52.8 |
30 |
53.22 |
Φ2.4×18 |
2400 |
18000 |
3-5 |
3 |
73.3 |
37 |
81.43 |
Φ2.8×24 |
2800 |
24000 |
3-5 |
2.59 |
97 |
75 |
141 |
Φ3.0×20 |
3000 |
20000 |
3-5 |
2.6 |
102 |
90 |
1 |
Φ3.0×25 |
3000 |
25000 |
3-5 |
2.6 |
110 |
110 |
178 |
