Specifications
Professional High-Efficient Rotary Dryer1 Dryer anti-overload, large capacity
2 low fuel consumption, low drying costs

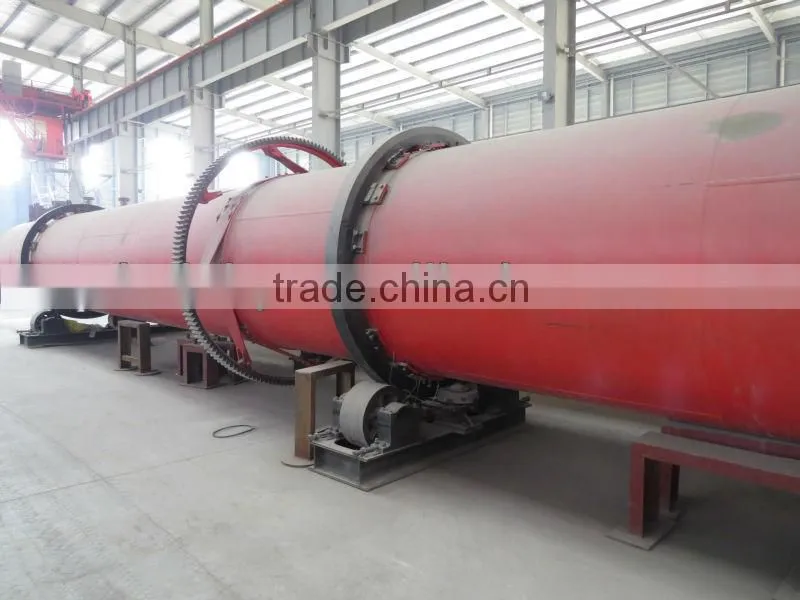

Professional High-Efficient Rotary Dryer from Baichy
(1) Brief Introduction
Monocular dryer, also rotary dryer, which is widely used in building materials, metallurgy, chemicals, industrial drying slag cement limestone, coal, slag, clay and other materials. It mainly consists of rotary body, lifting plate, gear, support equipment and seals and other components. With a reasonable structure, well-made, high output, low energy consumption, easy operation and so on.
(2) Working Principle
Monocular dryer mainly by the heat source, feeding machine, feeding machine, rotary drum, discharging machine, induced draft fan, unloading and distribution cabinet composition; dehydration of wet material added after drying machine, the drum uniformly distributed within the copy board is turning, the material uniformly dispersed in the dryer full contact with the hot air to speed up the drying ,heat and mass transfer. During the drying process,the material in the copy board with gradient and hot temperament of the role to another section of the star dryer exhaust discharge valve products.
(3) Main Parameters
| Model | Slope (%) | Revolution Speed (r/min) | Max-Input Gas (°C) | Power (kw) | Capacity (t/h) |
|---|---|---|---|---|---|
| SDHΦ1.5×15 | 3 | 3-5 | 700 | 15-18.5 | 3.0-20 |
| SDHΦ1.5×12 | 2.8-4 | 3-5 | 700 | 15-17 | 2.7-17 |
| SDHΦ1.5×10 | 2.8-4 | 3-5 | 700 | 13-15 | 2.7-17 |
| SDHΦ1.2×12 | 3-4 | 3-5 | 700 | 11-13 | 2.7-15 |
| SDHΦ1.0×10 | 3.8-5 | 3-5 | 700 | 5.5-7.5 | 2.2-10 |
| SDHΦ0.8×10 | 3.8-5 | 3-5 | 700 | 4-6 | 1.8-10 |
| SDHΦ0.6×10 | 3.8-5 | 3-5 | 700 | 4-6 | 1.5-9 |
| SDHΦ1.8×14 | 2-4 | 3-5 | 700 | 18.5 | 3-12 |
| SDHΦ2.2×12 | 2-4 | 3-5 | 700 | 30 | 8-20 |
(4) Performance Features
1). Dryer anti-overload, large capacity, low fuel consumption, low drying costs;
2). Uses downstream drying, smoke and wet material into the dryer from the same side, you can use to get a high evaporation temperature gas intensity, dryer outlet temperature is low, high thermal efficiency;
3). Material properties can be changed according to different operating parameters, so that the material in the dryer cylinder body can form a stable full cut curtain fabric, quality heat exchange is more fully;
4). New feeding, nesting devices, to prevent clogging the feed drum dryer, not continuous, uniform and returning materials such phenomena, reducing the dust load;
5). New internal structure, and strengthen the cleaning materials that have been scattered and thermal conduction, eliminating the cylinder wall adhesions phenomenon, material moisture, sticky and adaptable;
6). Dryer to achieve a "zero thrust", greatly reducing wear roller block, cylinder smooth and reliable operation;
7). Dryer "self-aligning roller-type device", so that the roller and rolling ring linear contact with forever, thus greatly reducing the wear and power loss.

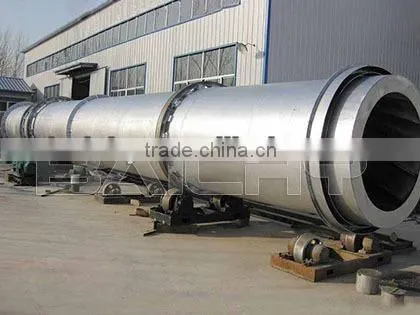

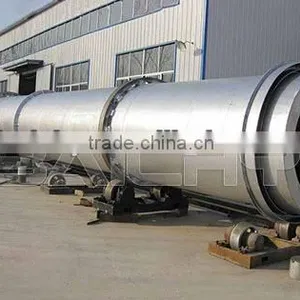

(5) Photo Gallary
