China Hot Rotary Kiln for Sale

Specifications

China Hot Rotary Kiln for Sale
1) ISO9001
2) Cylinder, gear, prop, gear wheel bearing device, kiln, kiln seals, kiln hood, etc

China Hot Rotary Kiln for Sale



Product Overview:

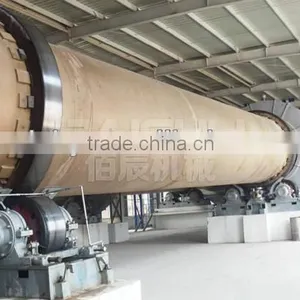

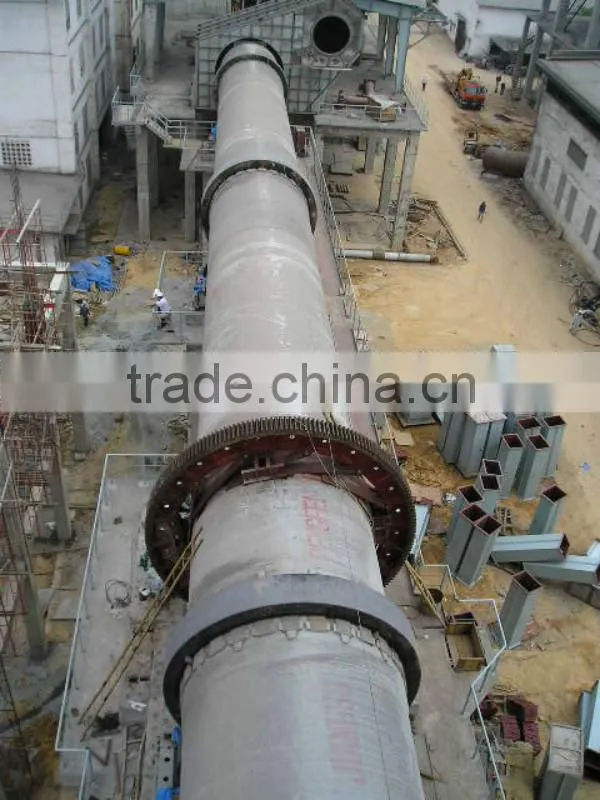

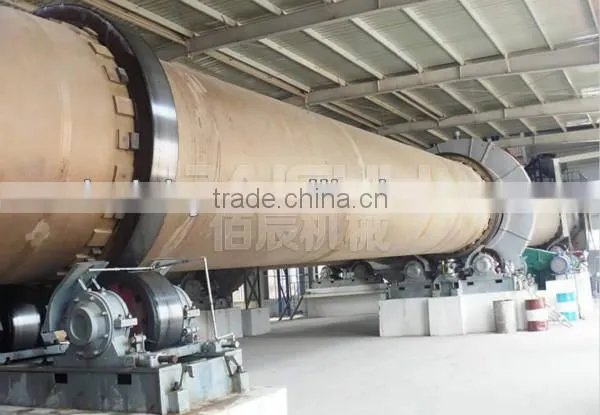

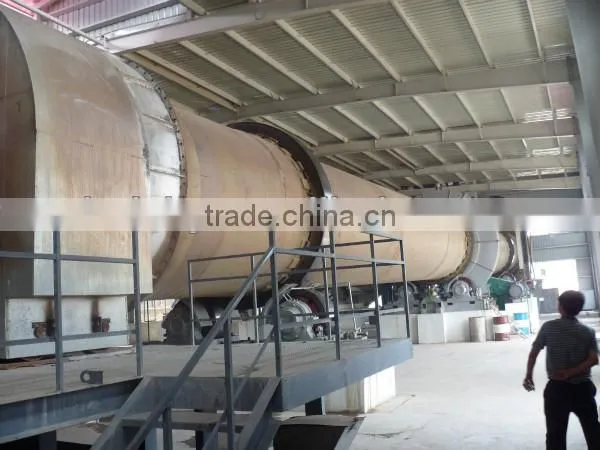

Rotary kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials to be dealt with. The kiln is mainly composed by kiln cylinder, transmission device, supporting device, block wheel device, kiln head sealing devices, kiln tail sealing device etc.



Technical Parameter



Model	Technical Diameter			Main Reduction Machine		Main Motor			Way of Catching Wheel	Supporting Number	Weight(t)
	Rotary Speed(r/min)	Slope	Capacity(t/h)	Model	Speed Ratio	Model	Power(kw)	Rotary Speed(r/h)
φ1.9/1.6x36	0.53-1.59	4	2.5-3	JZQ750-1	48.58	JZT-72-4	30	1200/400	Mechanical	3	53
φ2.1/1.8x36	0.5-1.51	4	4	UT2-110	163.36	JZS-81	30/10	1410/470	Mechanical	3	75
φ1.2X25	0.5-1.6	3	1.5	PM650	40.17	JZTY71-4	22	1200/120	Mechanical	3	34
φ1.6X32	0.158-0.258	3	2	PM750	48.57	JZJY61-4	15	1200/120	Mechanical	3	46.82
φ1.8X45	0.66-1.98	4	3.5	UT2-110	163.36	JZS-81	30/10	1410/470	Mechanical	3	80
φ2.2X50	0.125-1.25	3.5	4	ZS145-11	157	YCT280-4A	30	1320/132	Mechanical	3	130.71
φ2.5X50	0.516-1.549	3.5	5.5	ZS165-7	99.96	YCT355-4A	55	1320/440	Mechanical	3	167.5
φ3X48	0.3309-3.309	3.5	35	ZL130-14	32.11	ZSN4-250-21B	90	1000/100	Mechanical	3	237
φ3.2X50	0.398-3.975	3.5	50	ZL130-16	40.85	ZSN4-280-11B	190	1500/150	Mechanical	3	263
φ3.3X52	0.391-3.91	3.5	50	ZSY500-28	27.707	ZSN4-315-082	190	1000/100	Mechanical	3	280.8
φ4X60	0.396-3.96	3.5	104	ZSY630-35.5	34.601	ZSN4-355-092	315	1000/100	Mechanical	3	487.5
φ4.2X60	0.4165-4.165	3.5	116	ZSY710-35.5	35.526	ZSN4-355-12	420	1000/100	Mechanical	3	576.1
φ4.3X62	0.398-3.98	3.5	125	ZSY710-35.5	35.714	ZSN4-355-12	420	1000/100	Mechanical	3	598.5
φ4.8X74	0.35-4	4	208	JH710C-SW350-40	42.226	ZSN4-400-092	630	1500/130	Mechanical	3	841





 Working Principle

The material will be calcinated in the cylinder after enter the kiln from tail, and then will be turned over along the direction of circle and make a combined motion from the high-end to low-end along the axial because of the cylinder’s slope and low speed rotation. Then the material will be calcinated into the clinker after discomposition, calcination and cooling technical process. So they will discharge from the low-end and move into the cooler.

The fuel will be sprayed from the kiln head and start burning. The heat will be used to heat the materials and calcinated the material into the clinker. The hot-air formed during heat exchange  process will be blown into the kiln tail system from the feed end and released into the atmosphere.
