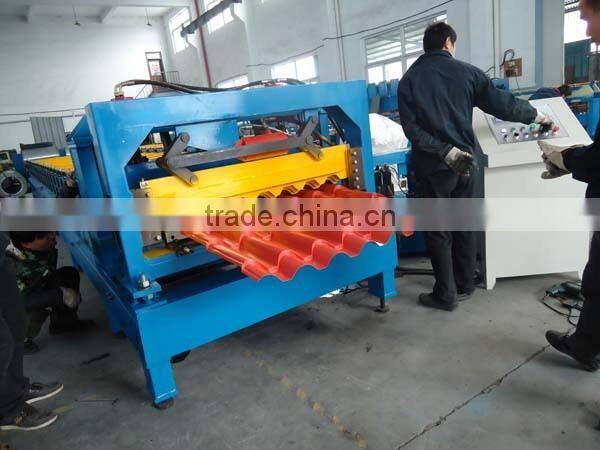

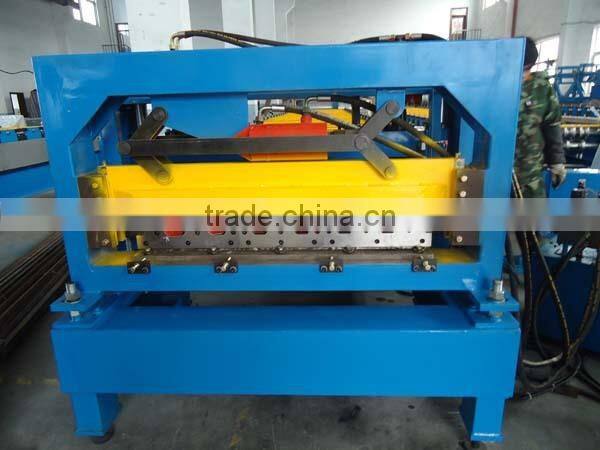

Roll Forming Machine For House Roof Use, Corrugated Step Tile Making Machine
Specifications
1.corrugated tile roll forming machine
2.roof tile forming machine
tal roof tile machine
4.step tile making machine
5.roof forming machine for house use
1.Tile roll forming machine machine workflow
2. tile roll forming machine main parameter table.
Material thickness |
0.3~0.7mm |
Material yield stress |
230~550 Mpa |
Max. forming speed |
8~25m/min |
Roller material |
45# steel with chrome treatment |
Roller driven type |
Chain transmission |
Controller & operation |
PLC & touch screen and button |
Hydraulic system pressure |
12 Mpa |
Hydraulic station motor power |
3 Kw |
Main motor power |
4~7.5Kw |
Total power |
7~10.5Kw |
Total weight |
About 6000~8000 Kgs |
3.tile roll forming machine standard component:

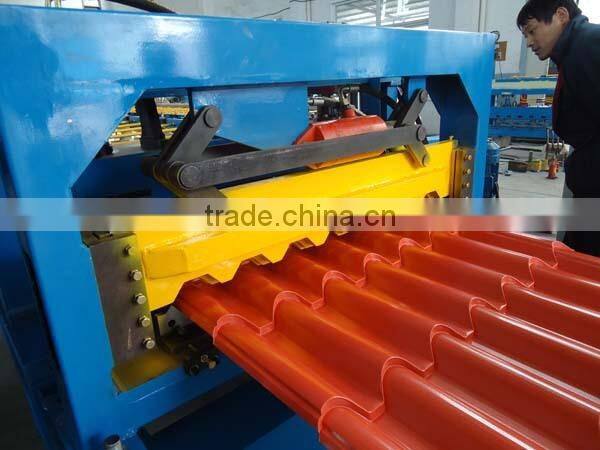

4.tile roll forming machine product:
We can also customize the products according to customer ' s requirements
5.company advatage:
1)we have about 12 years experience in the steel roll forming machines for the design and produce there are much experience and professional people.
2)quality control,we have CNC process to produce the rollers,grinder machine to smooth the frame.make more precise.and less tollerance.and after assebling,inspect the whole machine and result before delivery.
3)we have professional engineer in charge of installation abroad.after services are easy way solution.
4)on time delivery.
5)quality garantee,one year time garantee,and service all the life.
6.tile roll forming machine Loading photos:
7.tile roll forming machine Application:
