Step Tile Steel and Aluminium Corrugated Roof Roll Forming Machine #27-190-950
US$ 20,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Glazed Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Structural Step Tile Roof Roll Forming Machine Tile Making MachineUS$ 20,000 - 40,000MOQ: 1 Set -
YX28-207-828 GLAZED TILE ROLL FORMING MACHINEUS$ 20,000 - 40,000MOQ: 1 Set
-
Color Steel Glalvanized Metal Aluminum Glazed Trapezoidal Tile Sheet Roof Wall Panel Double Layer Roll Forming MachineUS$ 15,000 - 20,000MOQ: 1 Set
-
Metal Roofing Machine,Roll Forming Machine,Tile Making Machine ProductUS$ 15,000 - 20,000MOQ: 1 Set
-
Steel Step Tile Roll Forming MachineUS$ 15,000 - 40,000MOQ: 1 Set
Condition
New
Type
Tile Forming Machine
Tile Type
Glazed Steel
Use
Roof
Production Capacity
3m/min
Place of Origin
Zhejiang, China
Brand Name
bluesteel
Model Number
27-190-950
Power(W)
9.5kw
Voltage
380V3phase 50HZ
Dimension(L*W*H)
11m*1.5m*1.5m
Weight
9000kgs
Certification
CE ISO
Warranty
14 months from the bill of lading date
After-sales Service Provided
Engineers available to service machinery overseas
Step tile roll formong machine
Features:

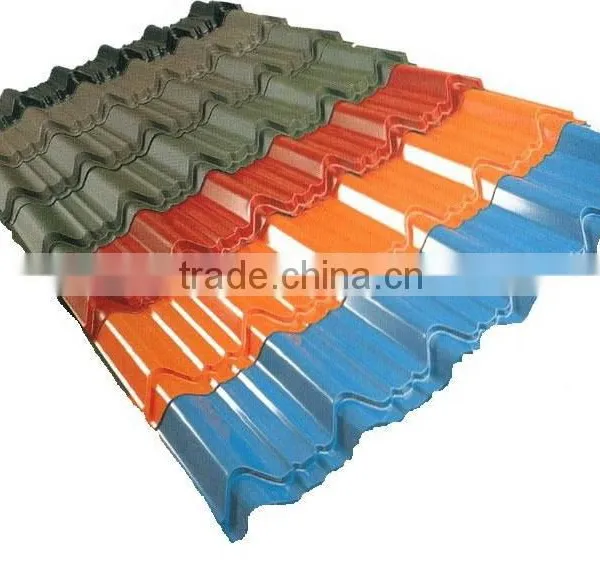

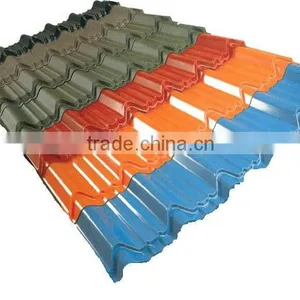

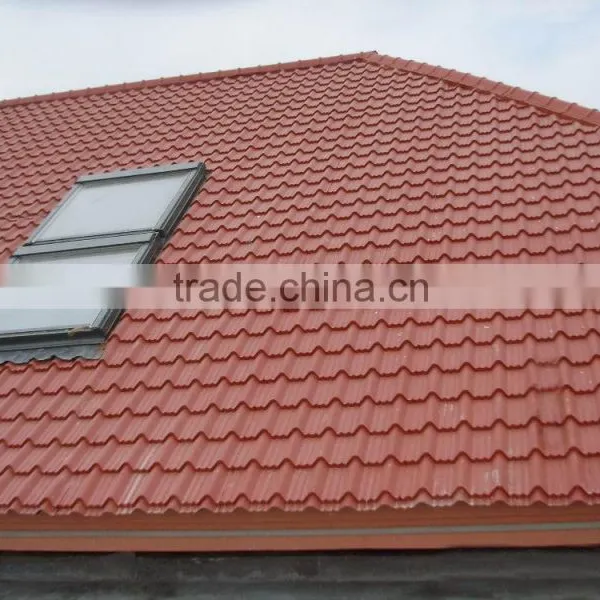

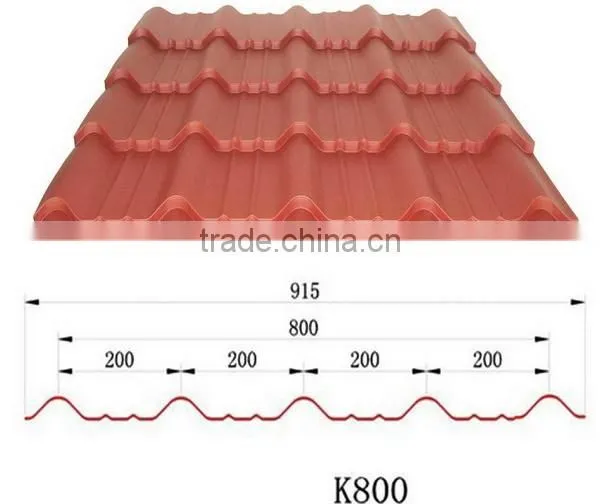

The roof tile panel is formed by roof tile forming machine from high quality coated sheet, which performs elegant style of traditional roof tile and suits for every architecture design. With light, strong strength and long lasting quality, also it is convenient and takes short time for installation.
The line is for continuously roll forming and pressing step tile on series profile. The length is unlimited and step depth can be as customers’ requirement.
Line Specification
Suitable Material: Thickness: 0.4-0.6mm PPGI/AL, width as the design
Step Length: 100-400mm
Decoiler: 5T/8T/10 Decoiler

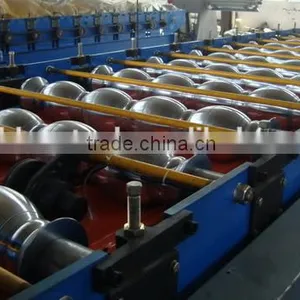

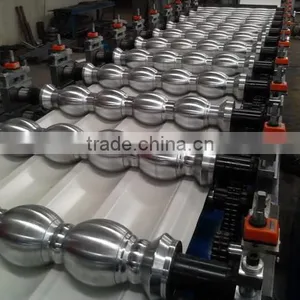

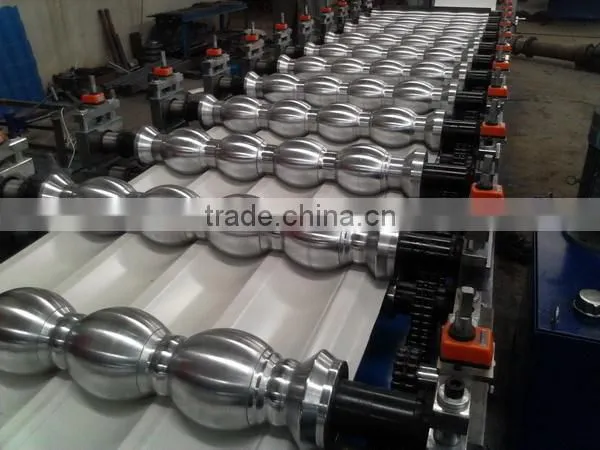

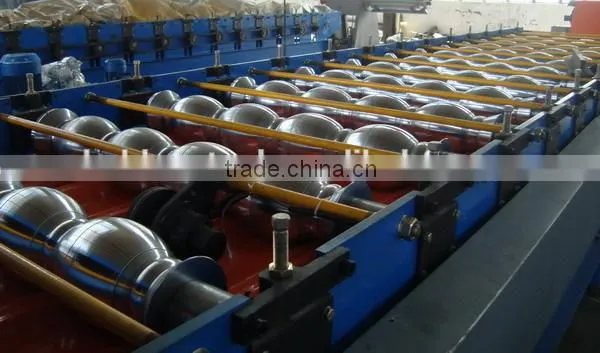

Forming Station: 10-30 stations up to the profile
Forming Speed: Max 30 m/min
Max Working Speed: 5.5M/min
Panel Run Out: 12m Auto Stacker
Total Power: About 30 KW up to final design
Total Installation Size: (40-60) X 5 m up to final design

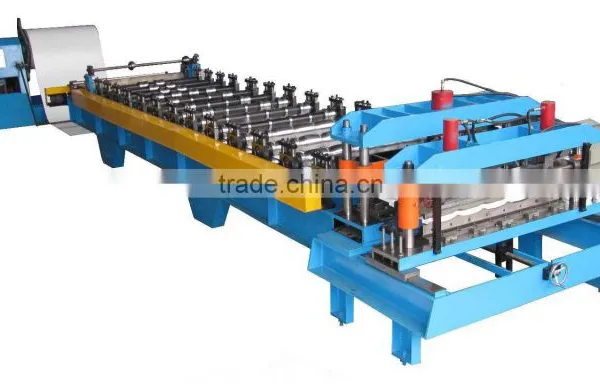

Line Components:
5T/8T/10 Decoiler, Guiding Device, Auto Pre-cutting Device, Forming System, Hydraulic Pressing Device, Hydraulic Cutting Device, Run Out Table/Auto Stacker, Hydraulic Station, PLC Control Box, Movable Control Box, Safety Cover(optional)
