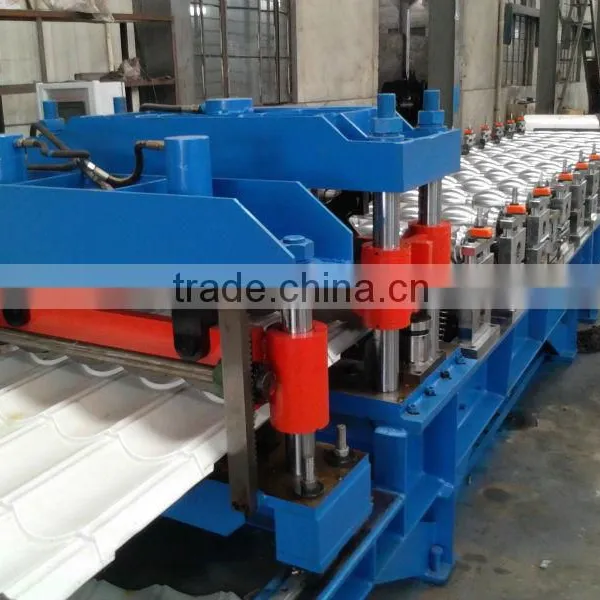

YX28-207-828 GLAZED TILE ROLL FORMING MACHINE
US$ 20,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Glaze Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Color Steel Glalvanized Metal Aluminum Glazed Trapezoidal Tile Sheet Roof Wall Panel Double Layer Roll Forming MachineUS$ 15,000 - 20,000MOQ: 1 Set -
Metal Roofing Machine,Roll Forming Machine,Tile Making Machine ProductUS$ 15,000 - 20,000MOQ: 1 Set
-
Steel Step Tile Roll Forming MachineUS$ 15,000 - 40,000MOQ: 1 Set
-
Best Sale Tile Roll Forming Machine Supplierfrom China, Metal Tile Making MachineUS$ 20,000 - 40,000MOQ: 1 Set
-
Best Metcoppo Tile Machine Supplier From ChinaUS$ 20,000 - 40,000MOQ: 1 Set
Condition
New
Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
Roof
Production Capacity
1-5m/min
Place of Origin
Zhejiang, China
Brand Name
bluesteel
Model Number
28-207-828
Power(W)
8.5kw
Voltage
380V 3phase 50Hz.
Dimension(L*W*H)
15*1.5*1.5M
Weight
8000KGS
Certification
CE
Warranty
14months from bill of lading date
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

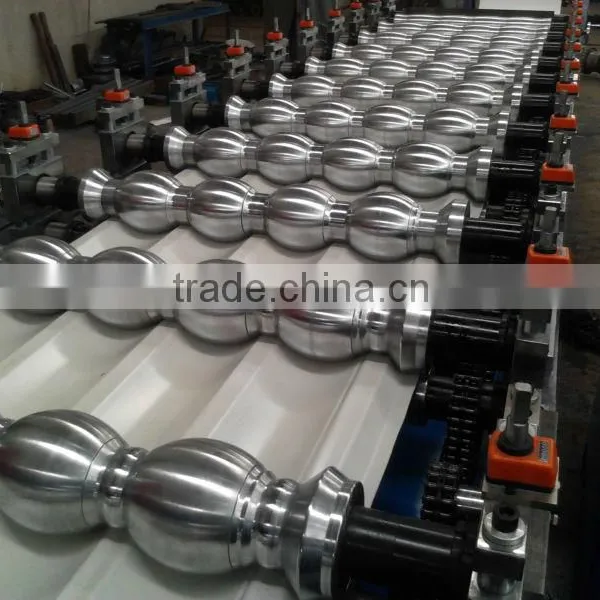

tower structure for main body.CNC rolling the rollers.
COMPANY INFORMATION:
Hangzhou Bluesteel Machine CO.,LTD specialized in manufacturing and exporting:
1) wall & roof forming machine
2) step tile. Ridge cap roll forming machine
3) EPS/PU sandwich panel line
4) C&Z purlin machine
5) metal decking forming machine
6) shutter door roll forming machine
7) rain spout forming machine
8) slitting line
9) cut to length line
10) guardrail roll forming machine

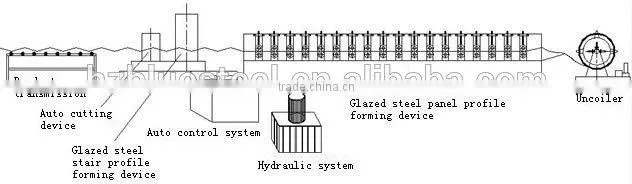

Workflow:

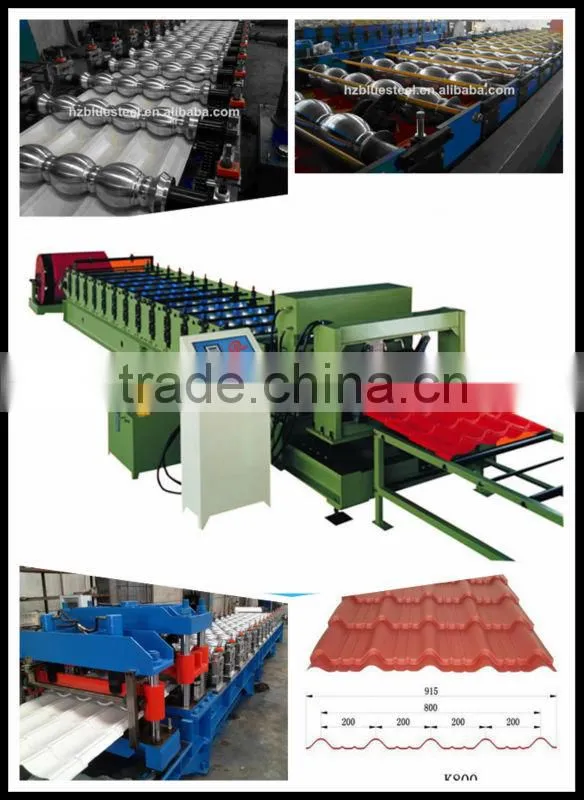

PRODUCT OVERVIEW:
TECHNICAL SPECIFICATION:
Features:
The roof tile panel is formed by roof tile forming machine from high quality coated sheet, which performs elegant style of traditional roof tile and suits for every architecture design. With light, strong strength and long lasting quality, also it is convenient and takes short time for installation.
The line is for continuously roll forming and pressing step tile on series profile. The length is unlimited and step depth can be as customers’ requirement.
Line Specification
Suitable Material: Thickness: 0.4-0.6mm PPGI/AL, width as the design
Step Length: 100-400mm

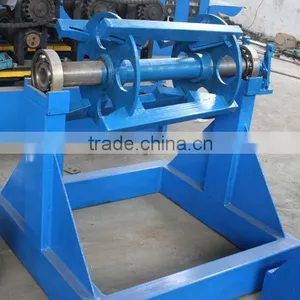

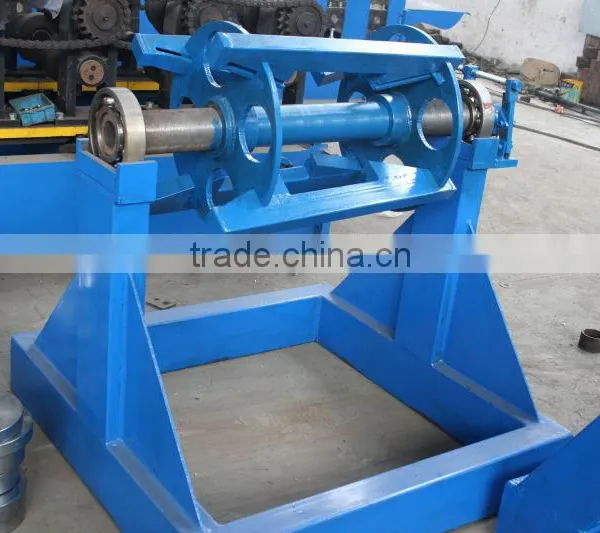

Decoiler: 5T/8T/10 Decoiler

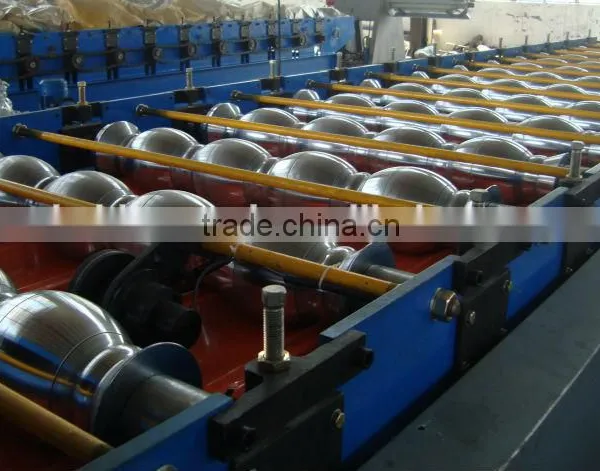

Forming Station: 10-30 stations up to the profile
Forming Speed: Max 30 m/min
Max Working Speed: 5.5M/min
Panel Run Out: 12m Auto Stacker
Total Power: About 30 KW up to final design
Total Installation Size: (40-60) X 5 m up to final design
Line Components:
5T/8T/10 Decoiler, Guiding Device, Auto Pre-cutting Device, Forming System, Hydraulic Pressing Device, Hydraulic Cutting Device, Run Out Table/Auto Stacker, Hydraulic Station, PLC Control Box, Movable Control Box, Safety Cover(optional)
QUALITY CONTROL:
GUARANTEE AND SERVICE:
12 month guarantee after BL date for machine
24 hours technical support by email
Calling or door to door service
Use-friendly English software, Manual and video.
MORE PHOTOS FOR REFERENCE

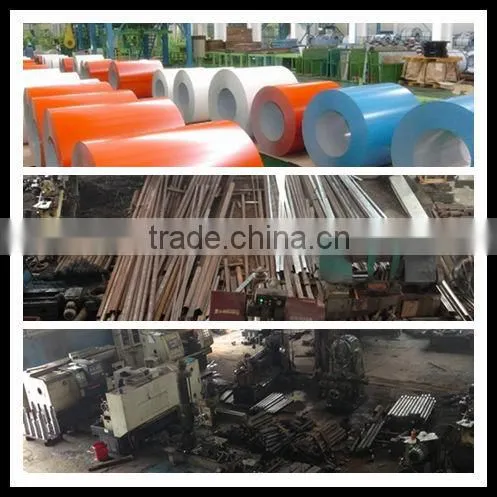

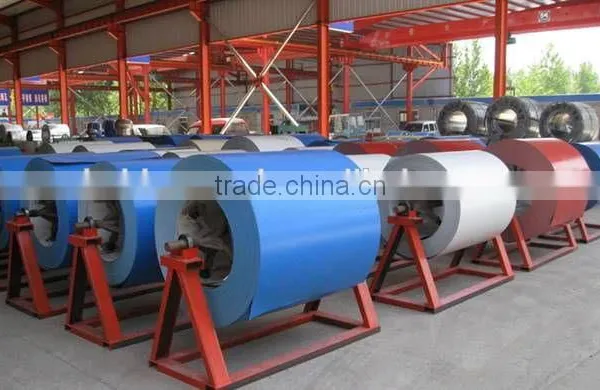

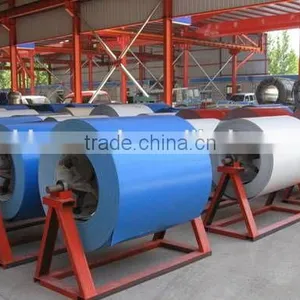

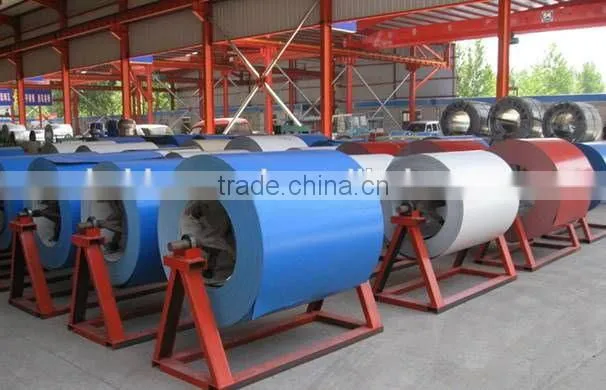

STEEL COILS:

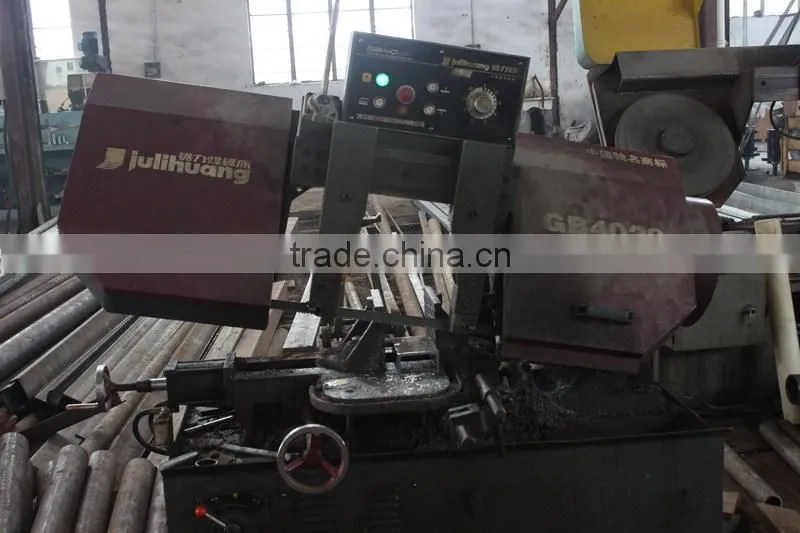

SAWING:

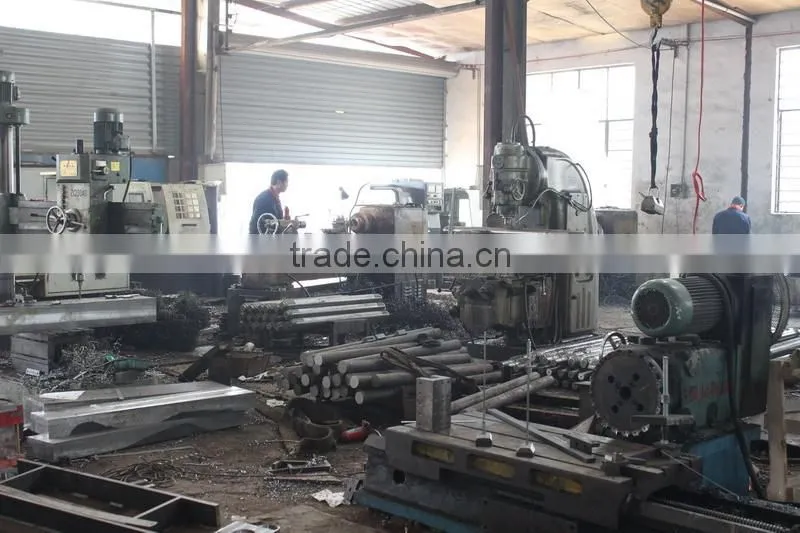

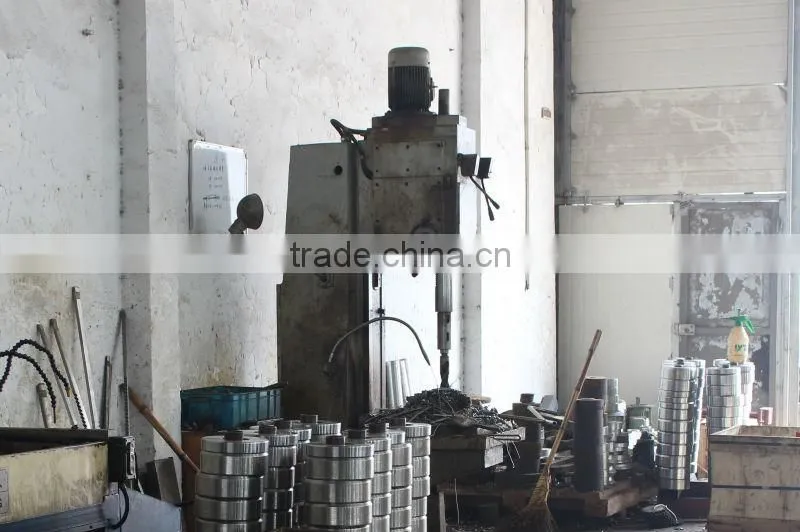

CNC machine ensure precise
ENGINEERING
