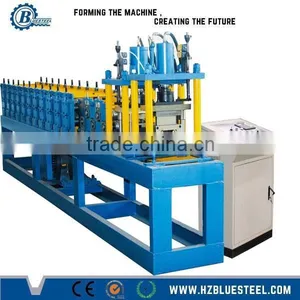

Roll Forming Machine For Rolling shutter Door Lath Rolling Door Machine Roller Shutter Door Machine Machine
Specifications
1.roll forming machine
2. steel profile roll forming machine
3.steel door frame roll forming machine
4.rolling shutter slats roll forming machine
5.shutter door roll forming machine
1.machine workflow
2.main parameter table.
Material thickness |
0.7~1.0mm, 1.5mm, 2mm |
Material yield stress |
230~550 Mpa |
Max. forming speed |
8~25m/min |
Roller material |
45# steel with chrome treatment |
Roller driven type |
Chain transmission |
Controller & operation |
PLC & touch screen and button |
Hydraulic system pressure |
12 Mpa |
Hydraulic station motor power |
3 Kw |
Main motor power |
4~5.5Kw |
Total power |
7~8.5Kw |
Total weight |
About 3000~5000 Kgs |
3.standard component:

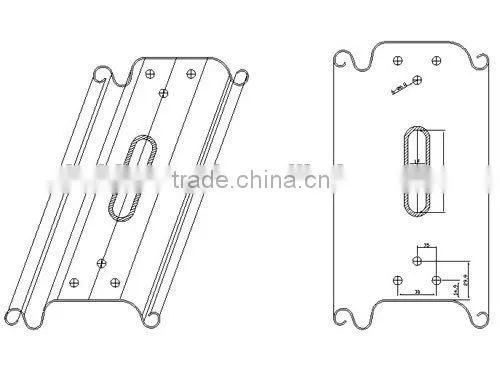

4.Product:
We can also customize the products according to customer ' s requirements
6.Loading photos:
7.Application:
8.company advatage:
1)we have about 12 years experience in the steel roll forming machines for the design and produce there are much experience and professional people.
2)quality control,we have CNC process to produce the rollers,grinder machine to smooth the frame.make more precise.and less tollerance.and after assebling,inspect the whole machine and result before delivery.
3)we have professional engineer in charge of installation abroad.after services are easy way solution.
4)on time delivery.
5)quality garantee,one year time garantee,and service all the life.
