Galvanized Metal Milling Colored Steel Hydraulic Door Panels Roll Shutter Roll Forming Machine
Specifications

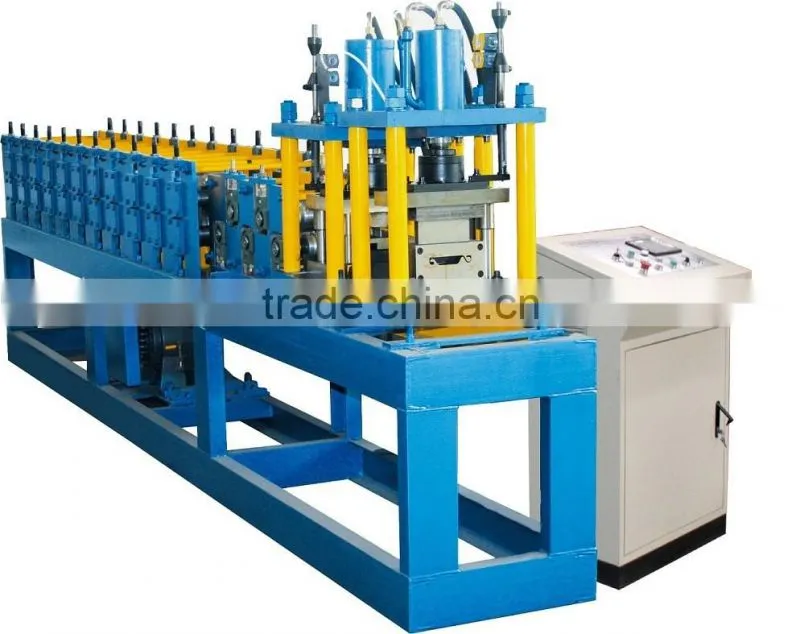

construction use galvanzied metal roller shutter door roll forming machine
Hangzhou Bluesteel Machine CO.,LTD specialized in manufacturing and exporting:
1) wall & roof roll forming machine
2) step tile. Ridge cap roll forming machine
3) EPS/PU sandwich panel line
4) C&Z purlin roll forming machine
5) metal decking roll forming machine
6) shutter door roll forming machine
7) rain spout roll forming machine
8) slitting line
9) cut to length line
10) guardrail roll forming machine
11) metal stud and track roll forming machine
12) standing seam metal roof roll forming machine
13) large span roll forming machine
1.machine workflow
2.main parameter table.
Material thickness |
0.3~0.7mm |
Material yield stress |
230~550 Mpa |
Max. forming speed |
8~25m/min |
Roller material |
45# steel with chrome treatment |
Roller driven type |
Chain transmission |
Controller & operation |
PLC & touch screen and button |
Hydraulic system pressure |
12 Mpa |
Hydraulic station motor power |
3 Kw |
Main motor power |
4~7.5Kw |
Total power |
7~10.5Kw |
Total weight |
About 6000~8000 Kgs |
3.standard component:
4.Product:
Shutter Door With Hole Shutter Door
We also customized all kinds of roofing sheet
Showroom
5.company advatage:
1)we have about 12 years experience in the steel roll forming machines for the design and produce there are much experience and professional people.
2)quality control,we have CNC process to produce the rollers,grinder machine to smooth the frame.make more precise.and less tollerance.and after assebling,inspect the whole machine and result before delivery.
3)we have professional engineer in charge of installation abroad.after services are easy way solution.
4)on time delivery.
5)quality garantee,one year time garantee,and service all the life.

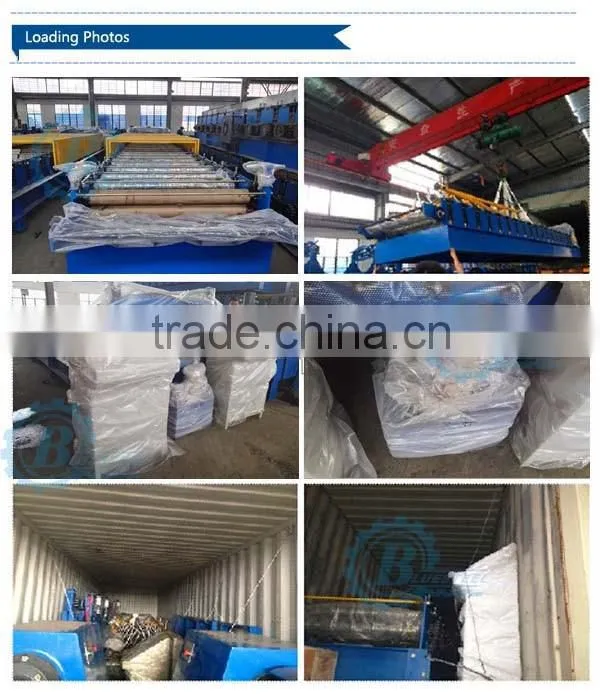

6.Loading photos:
7.Application:
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.
WHY CHOOSE US
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
